NSN 5310-01-539-0162 AS3485, AS348510, AS3485-10
Product Details | DOUBLE HEXAGON SELF-LOCKING NUT
5310-01-539-0162 A nut having 12 drive points and 24 sides. The bearing surface may be washer faced. An integral locking feature is incorporated in the design of the head or in the threads.
Part Alternates: AS3485, AS348510, AS3485-10, 5310-01-539-0162, 01-539-0162, 5310015390162, 015390162
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 APR 2006 | 01-539-0162 | 05276 ( NUT, SELF-LOCKING, DOUBLE HEXAGON ) |

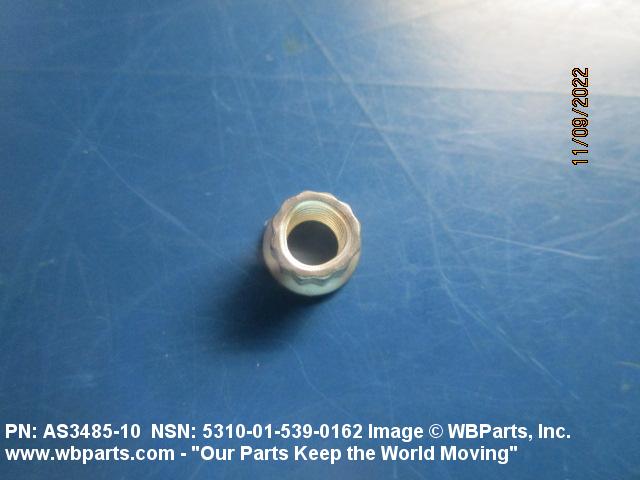

Drawings & Photos | NSN 5310-01-539-0162
Demand History | NSN 5310-01-539-0162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS348510 | 2022-11-332 | 50 | Italy |
| AS348510 | 2022-11-307 | 82 | United States |
| 5310-01-539-0162 | 2022-11-306 | 100 | Taiwan |
| AS3485-10 | 2022-06-153 | 162 | DIBBS |
| 5310-01-539-0162 | 2022-05-150 | 5 | Greece |
| AS348510 | 2021-03-83 | 100 | US |
| AS3485 | 2020-08-234 | 48 | United States |
| AS348510 | 2020-04-114 | 25 | US |
| 5310-01-539-0162 | 2020-04-112 | 25 | TT |
| 5310-01-539-0162 | 2019-09-269 | 3250 | United States |
| AS3485-10 | 2019-08-218 | 3250 | DIBBS |
| AS3485-10 | 2019-05-128 | 1067 | DIBBS |
| 5310-01-539-0162 | 2018-11-323 | 444 | DIBBS |
| 5310-01-539-0162 | 2018-10-301 | 160 | DIBBS |
| AS3485-10 | 2018-05-135 | 102 | FX |
| 5310-01-539-0162 | 2016-05-124 | 796 | DIBBS |
| 5310-01-539-0162 | 2016-04-113 | 552 | DIBBS |
| 5310-01-539-0162 | 2016-02-52 | 552 | DIBBS |
| 5310-01-539-0162 | 2015-09-258 | 96 | DIBBS |
| 5310-01-539-0162 | 2015-07-195 | 96 | DIBBS |
| 5310-01-539-0162 | 2014-06-170 | 10 | MX |
| AS348510 | 2013-03-88 | 6 | IT |
| 5310-01-539-0162 | 2012-03-67 | 40 | DIBBS |
| 5310-01-539-0162 | 2011-11-313 | 20 | DIBBS |
| 5310-01-539-0162 | 2011-10-300 | 20 | DIBBS |
| AS348510 | 2010-08-214 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-539-0162
Related Products | NSN 5310-01-539-0162
Technical Data | NSN 5310-01-539-0162
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 OR AMS 5734 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2411 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | HRC 37-45 |
| NUT STYLE | A16 DOUBLE HEXAGON |

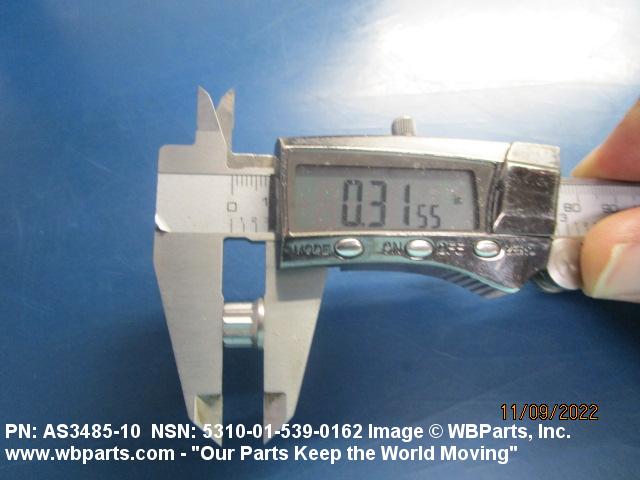

| NUT HEIGHT | 0.307 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

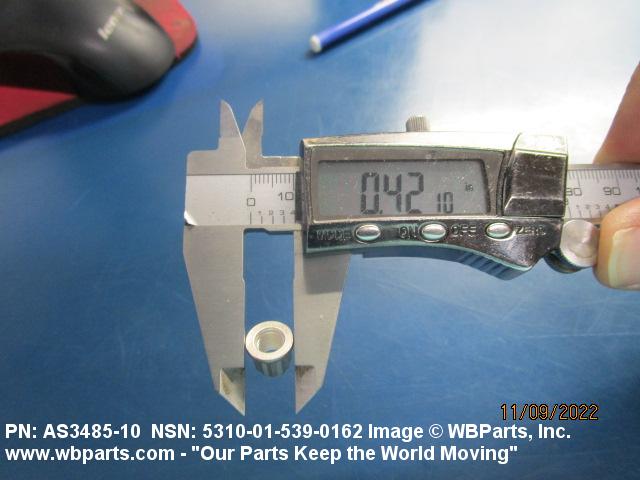

| WIDTH ACROSS FLATS | 0.430 INCHES NOMINAL |
| SPECIAL FEATURES | FINISH: SILVER PLATE PER AMS 2411; SILVER PLATE ONLY ON THE THREADS WITH OPTIONAL COVERAGE ON COUNTERSINK. DIMENTIONS APPLY AFTER PLATING. UPPER THREADED PORTION DEFORMED FOR LOCKING FEATURE, TOOL MARKS AND DISTORTION ARE PERMISSIBLE IN LOCKING AREA. |
| III END ITEM IDENTIFICATION | GAS GENERATOR (GERERATOR) ASSY L50021G03 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT, SELF-LOCKING, 12 POINT, REDUCED HEIGHT, SILVER PLATE, UNS S66286 |
Restrictions/Controls & Freight Information | NSN 5310-01-539-0162
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-539-0162
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
