NSN 5310-01-549-7529 NAS1726C3PE, 01-549-7529, 015497529
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-01-549-7529 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1726C3PE, 5310-01-549-7529, 01-549-7529, 5310015497529, 015497529
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAR 2007 | 01-549-7529 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

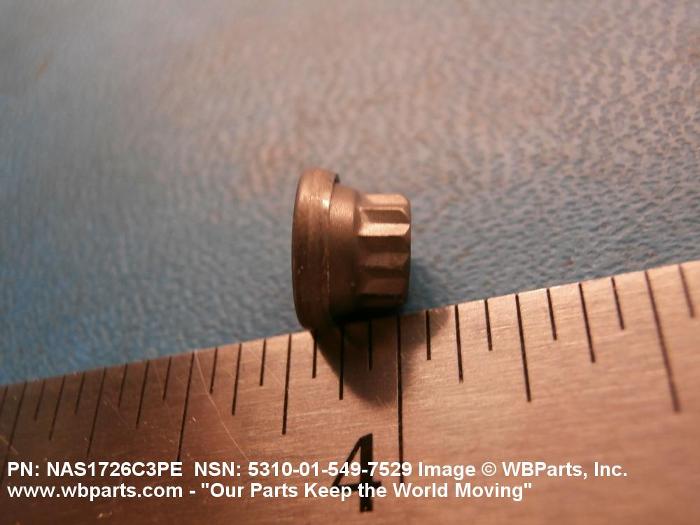

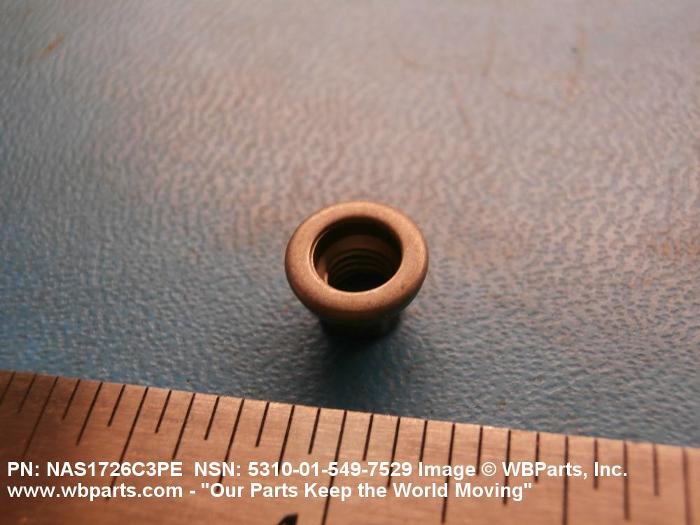

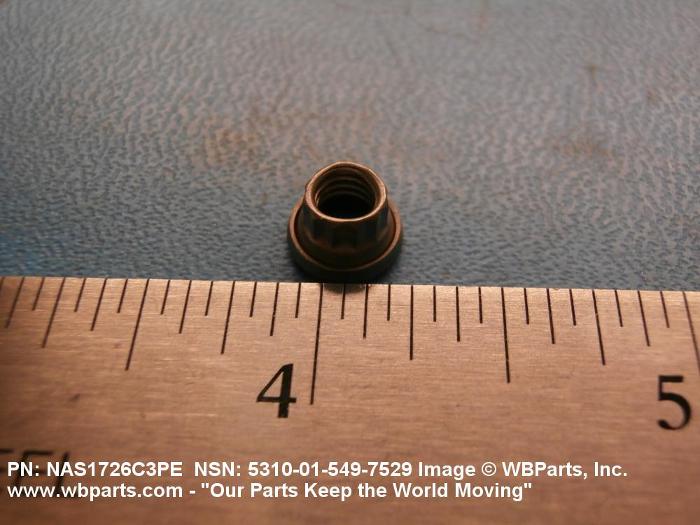

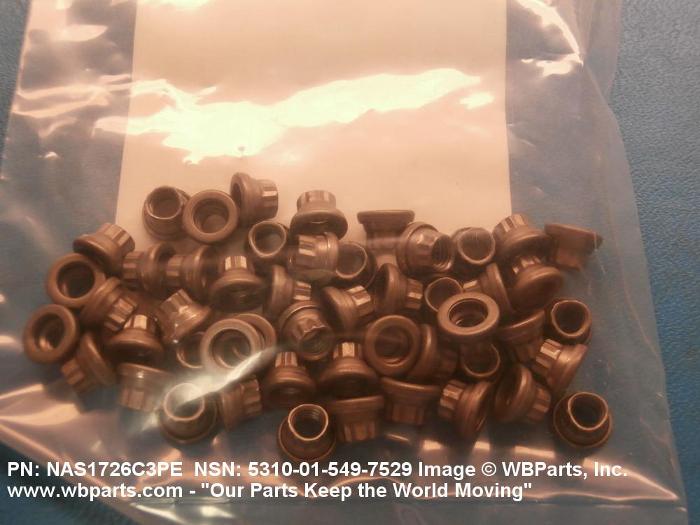

Drawings & Photos | NSN 5310-01-549-7529
Demand History | NSN 5310-01-549-7529
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1726C3PE | 2025-04-92 | 11000 | us |
| NAS1726C3PE | 2022-01-11 | 204 | India |
| NAS1726C3PE | 2021-12-364 | 204 | India |
| NAS1726C3PE | 2013-07-184 | 2 | FR |
| NAS1726C3PE | 2013-01-04 | 50 | United States |
| NAS1726C3PE | 2013-01-04 | 50 | US |
| NAS1726C3PE | 2012-08-215 | 72 | US |
| NAS1726C3PE | 2009-01-08 | 58 | Italy |
| NAS1726C3PE | 2008-11-311 | 3000 | Italy |
| NAS1726C3PE | 2008-05-148 | 3000 | Italy |
| NAS1726C3PE | 2006-09-251 | 400 | Spain |
Cross Reference | NSN 5310-01-549-7529
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1726C3PE | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-549-7529
Related Products | NSN 5310-01-549-7529
Technical Data | NSN 5310-01-549-7529
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A311 FLAT WITH TURNED UP EDGE |
| WASHER OUTSIDE DIAMETER | 0.380 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.233 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.221 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | 4.0 DEGREES NOMINAL FIRST END |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-549-7529
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
