NSN 5310-01-589-7121 BACW10EC3S, 01-589-7121, 015897121
Product Details | LOCK WASHER
5310-01-589-7121 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: BACW10EC3S, 5310-01-589-7121, 01-589-7121, 5310015897121, 015897121
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 2010 | 01-589-7121 | 14218 ( WASHER, LOCK ) |

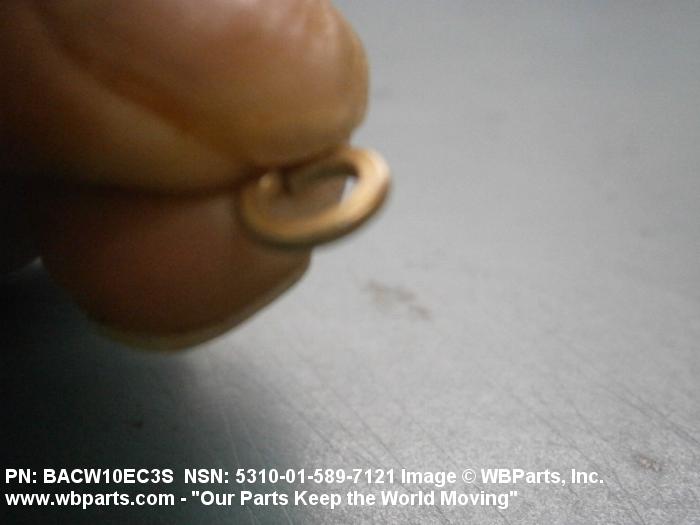

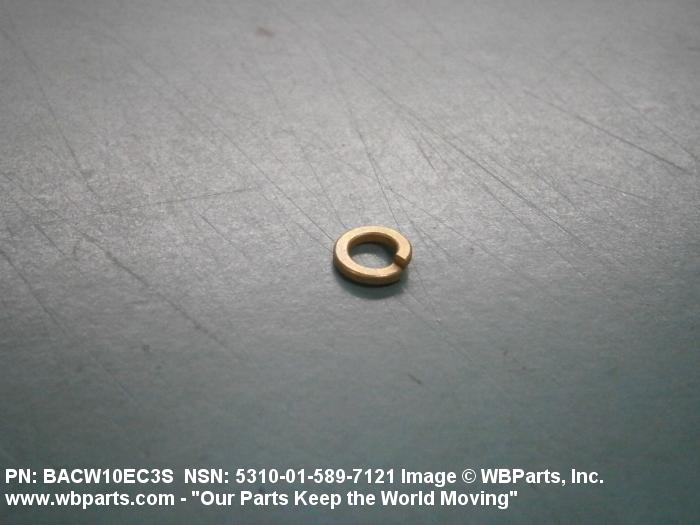

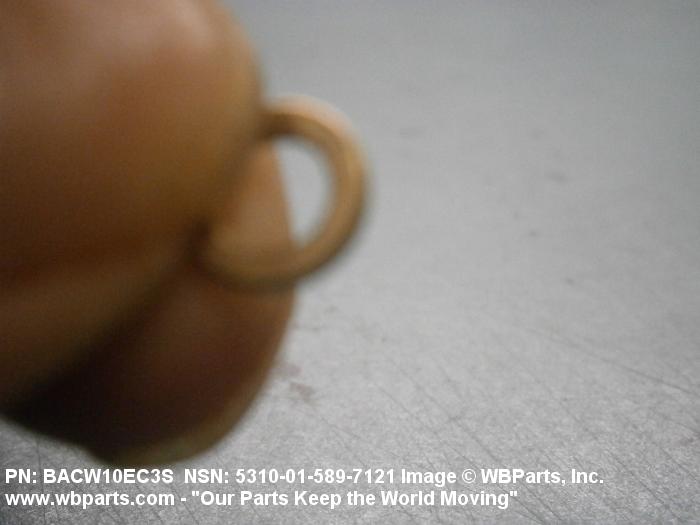

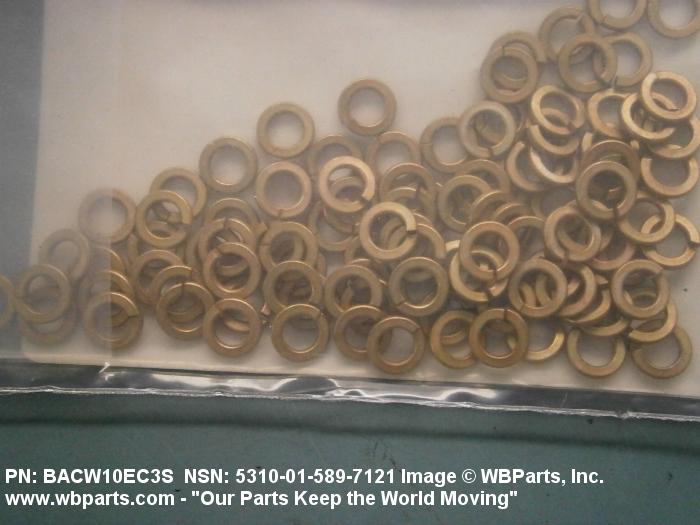

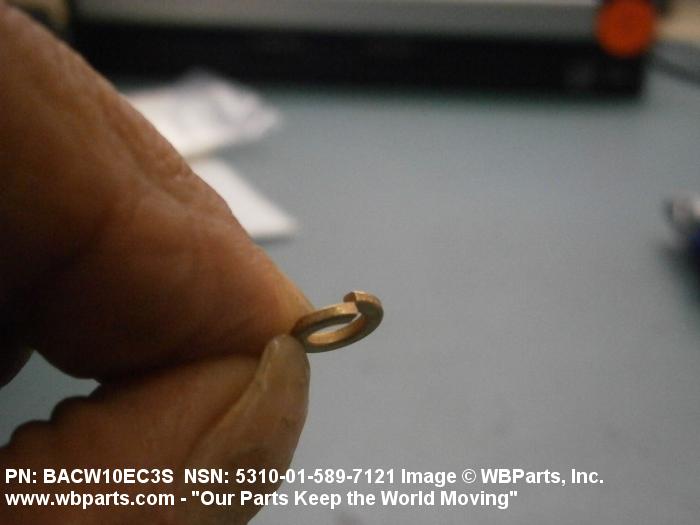

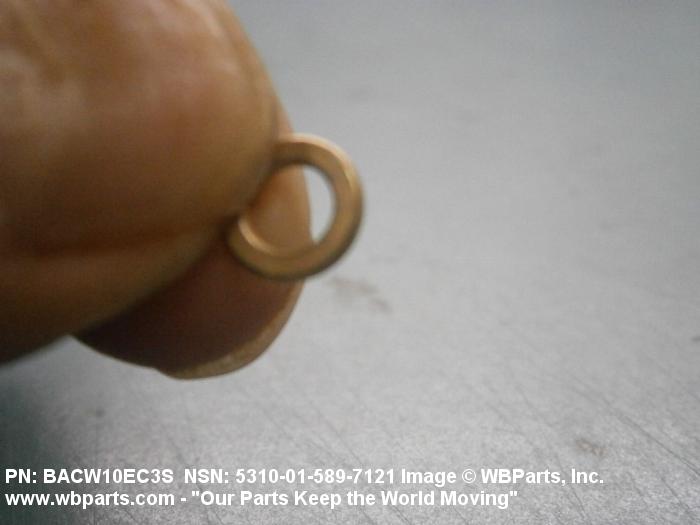

Drawings & Photos | NSN 5310-01-589-7121
Demand History | NSN 5310-01-589-7121
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACW10EC3S | 2026-02-47 | 10 | us |
| BACW10EC3S | 2026-02-47 | 10 | us |
| BACW10EC3S | 2025-08-213 | 60 | United States |
| BACW10EC3S | 2013-12-336 | 1 | US |
| BACW10EC3S | 2013-12-336 | 1 | US |
| BACW10EC3S | 2013-07-210 | 250 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-589-7121
Related Products | NSN 5310-01-589-7121
Technical Data | NSN 5310-01-589-7121
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A29 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | SPLIT HELICAL-RIGHT HAND |

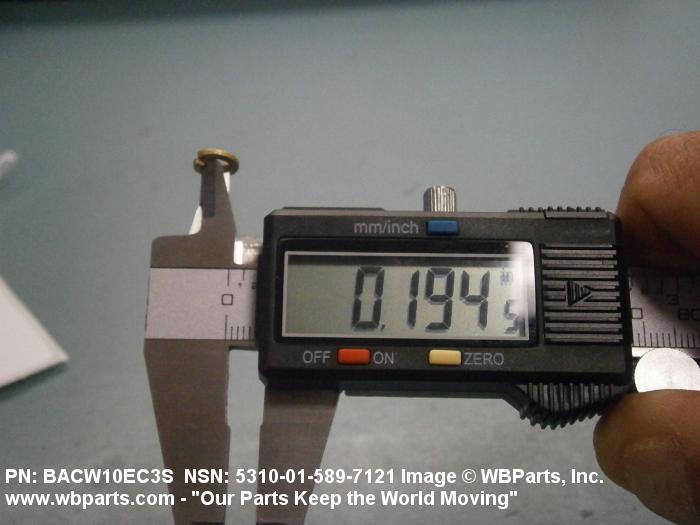

| HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |

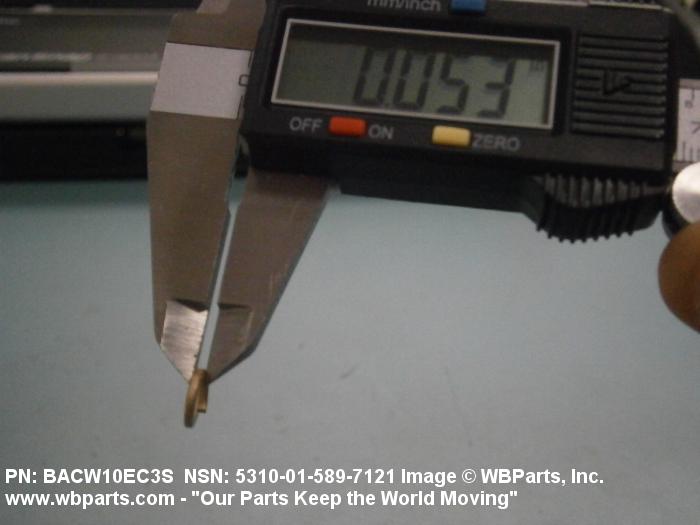

| MATERIAL THICKNESS | 0.047 INCHES MINIMUM |

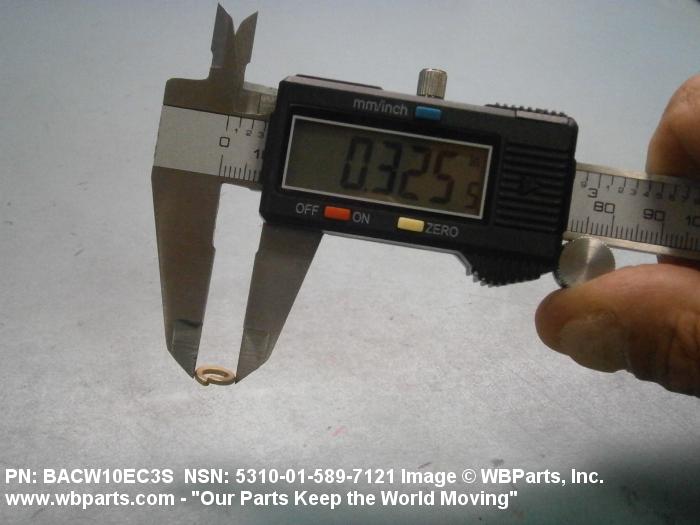

| OUTSIDE DIAMETER | 0.334 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-589-7121
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-589-7121
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
