NSN 5310-01-592-1568 J2295F467C2R08NU, J2295F467C2R08-NU, 01-592-1568
Product Details | HEXAGON PLAIN NUT
5310-01-592-1568 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: J2295F467C2R08NU, J2295F467C2R08-NU, 5310-01-592-1568, 01-592-1568, 5310015921568, 015921568
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 FEB 2011 | 01-592-1568 | 01857 ( NUT, PLAIN, HEXAGON ) |

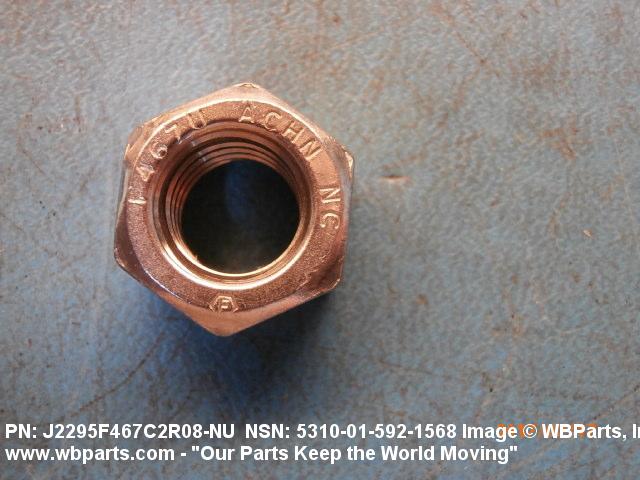

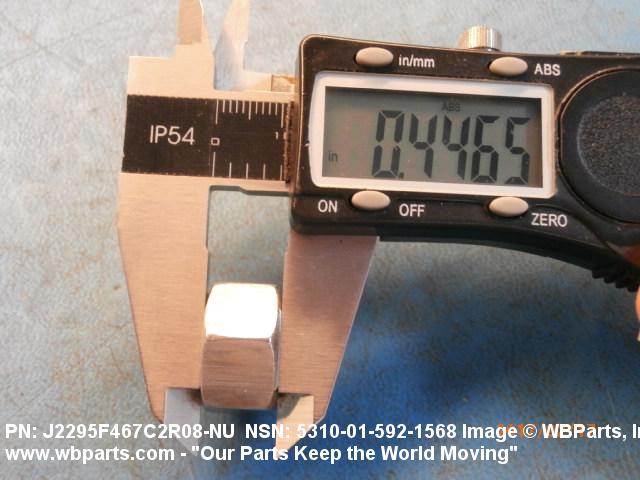

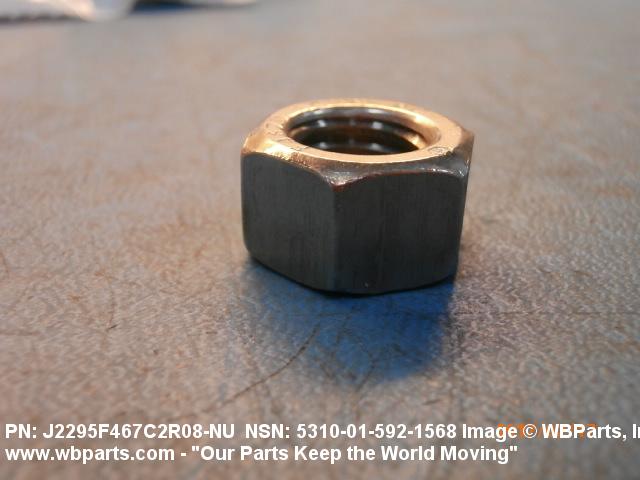

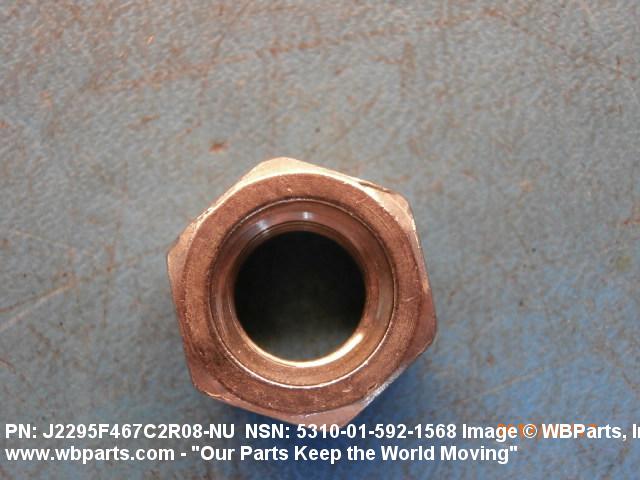

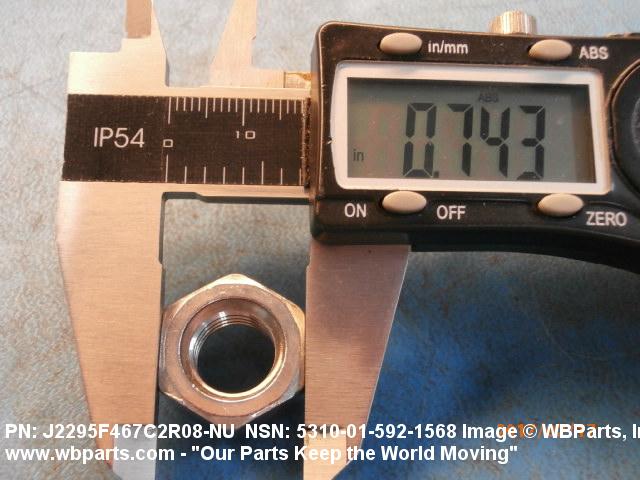

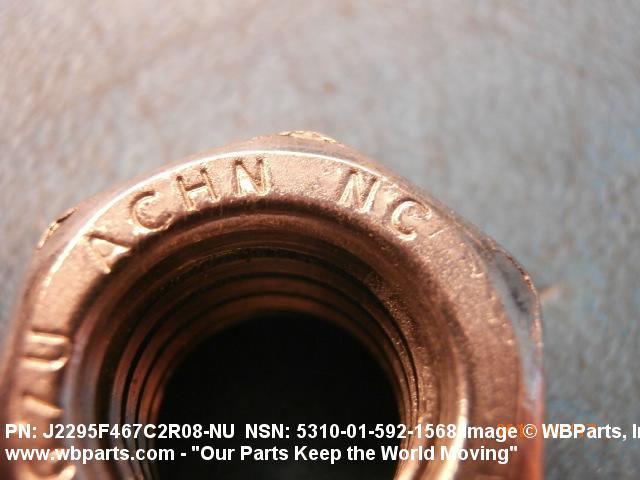

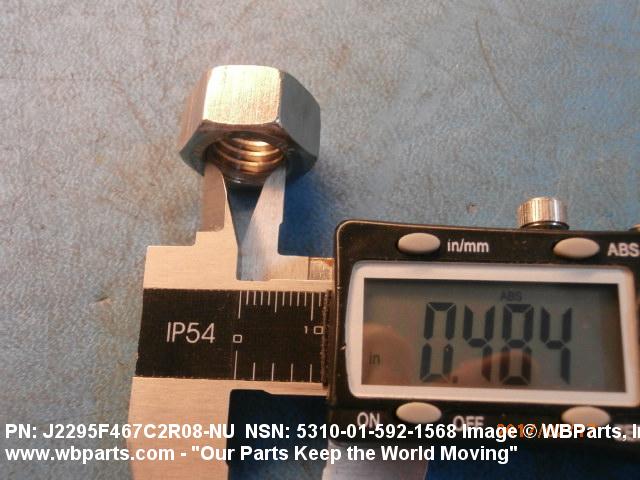

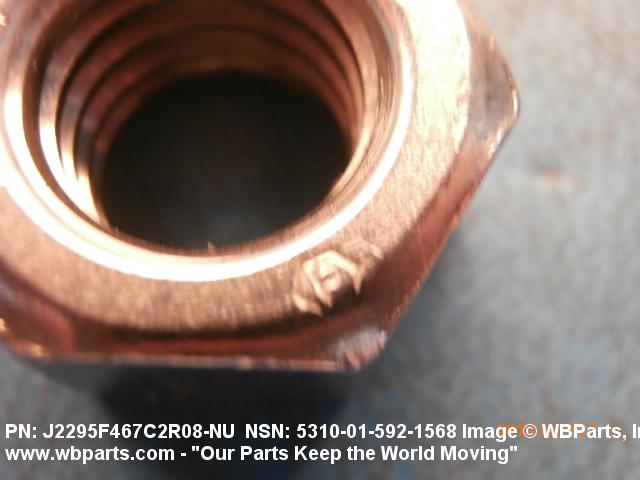

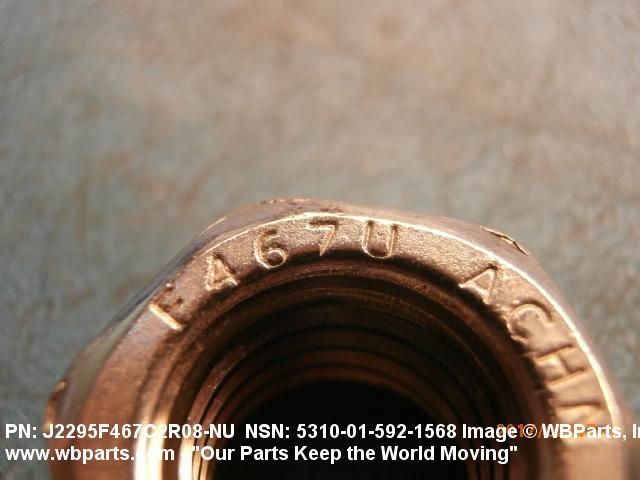

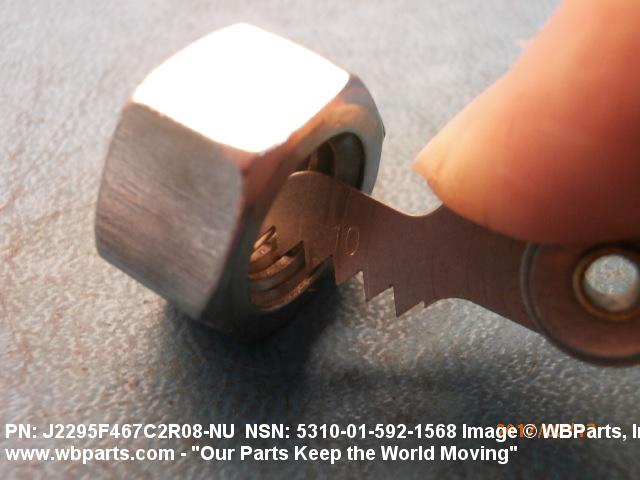

Drawings & Photos | NSN 5310-01-592-1568
Demand History | NSN 5310-01-592-1568
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-592-1568 | 2025-01-26 | 2604 | DIBBS |
| 5310-01-592-1568 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-01-592-1568 | 2017-01-30 | 12 | United States |
| 5310-01-592-1568 | 2016-02-34 | 1721 | DIBBS |
| 5310-01-592-1568 | 2015-05-147 | 621 | DIBBS |
| 5310-01-592-1568 | 2014-08-232 | 1112 | DIBBS |
| 5310-01-592-1568 | 2014-02-34 | 454 | DIBBS |
| 5310-01-592-1568 | 2013-05-136 | 300 | DIBBS |
| 5310-01-592-1568 | 2013-04-109 | 247 | DIBBS |
| 5310-01-592-1568 | 2011-04-104 | 200 | DIBBS |
Cross Reference | NSN 5310-01-592-1568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J2295F467C2R08-NU | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-592-1568
Technical Data | NSN 5310-01-592-1568
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| THREAD SERIES | UNC |
| BEARING SURFACE TYPE | FLAT |
| THREAD CLASS | 2B |
| MATERIAL | NICKEL ALLOY 400 OVERALL |
| HARDNESS RATING | 24.0 ROCKWELL C MINIMUM |
| NUT STYLE | HEXAGON |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| NUT HEIGHT | 0.427 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 10 |
| WIDTH ACROSS FLATS | 0.736 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-592-1568
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-592-1568
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
