NSN 5310-01-625-2395 LS5931A21 , 01-625-2395, 016252395
Product Details | CONVEX WASHER
5310-01-625-2395 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is raised to form a curved or spherical contour. See also WASHER (1), CONCAVE. Excludes BEARING, WASHER THRUST.
Part Alternates: LS5931A21 , 5310-01-625-2395, 01-625-2395, 5310016252395, 016252395
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014029 | 01-625-2395 | 15931 ( WASHER, CONVEX ) |

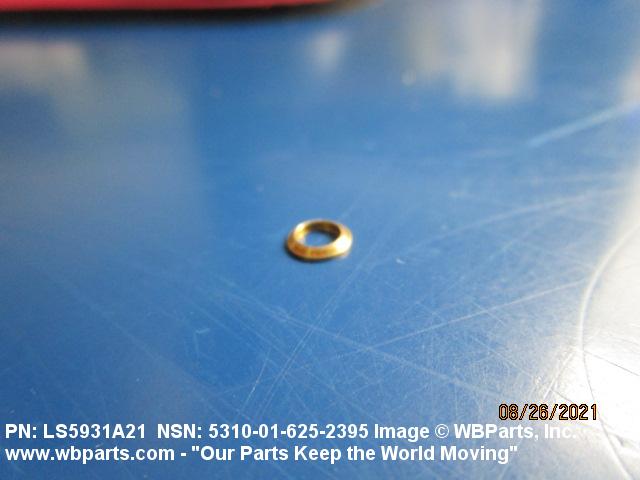

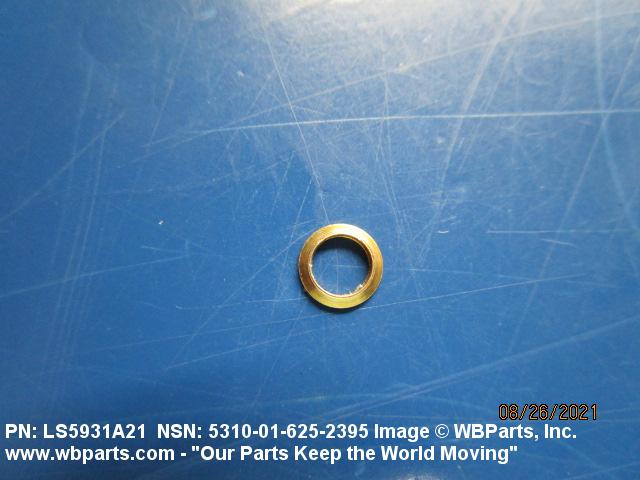

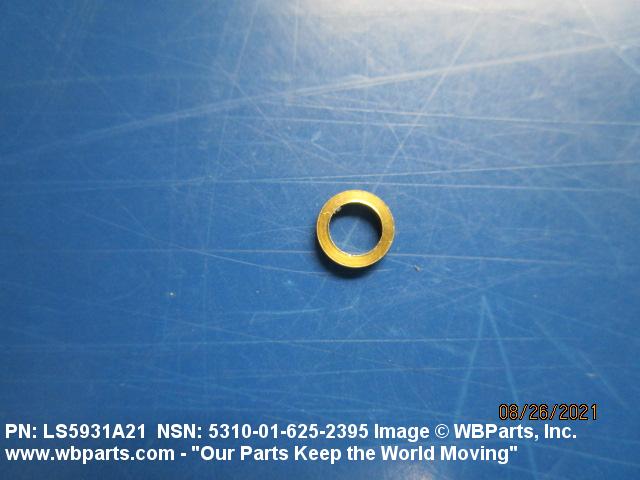

Drawings & Photos | NSN 5310-01-625-2395
Demand History | NSN 5310-01-625-2395
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-625-2395 | 2025-12-335 | 1000 | us |
| LS5931A21 | 2025-10-283 | 100 | us |
| 5310-01-625-2395 | 2025-10-282 | 1000 | us |
| LS5931A21 | 2024-08-226 | 125 | United States |
| LS5931A21 | 2023-02-38 | 500 | Canada |
| 5310-01-625-2395 | 2021-08-222 | 200 | United States |
| LS5931A21 | 2019-10-275 | 280 | United States |
| LS5931A21 | 2007-11-332 | 300 | Australia |
Cross Reference | NSN 5310-01-625-2395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS5931A21 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-625-2395
Technical Data | NSN 5310-01-625-2395
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| STYLE DESIGNATOR | CONVEX |

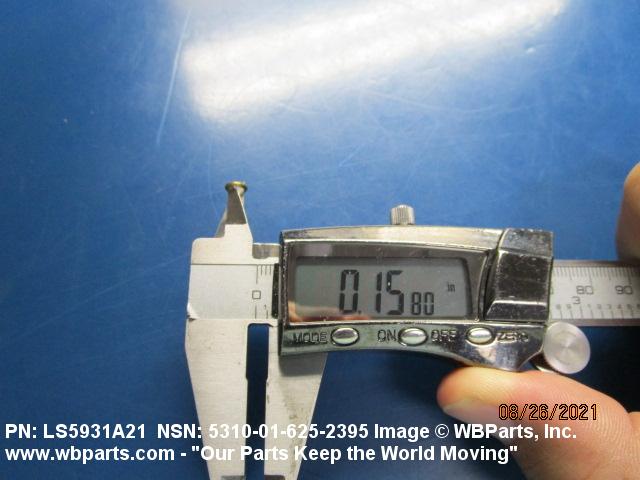

| HOLE DIAMETER | 0.156 INCHES NOMINAL |

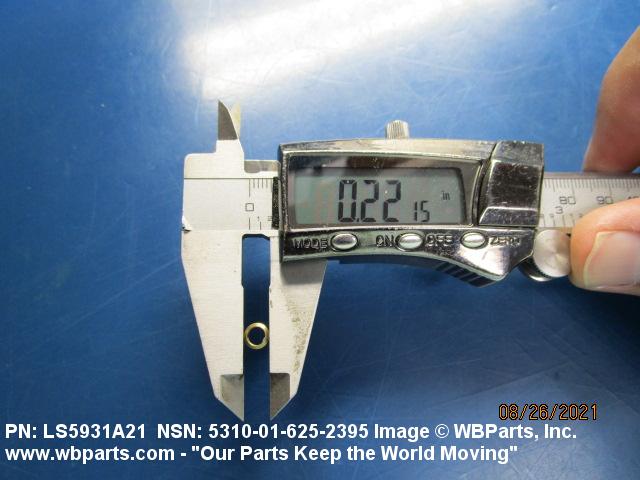

| OUTSIDE DIAMETER | 0.225 INCHES NOMINAL |

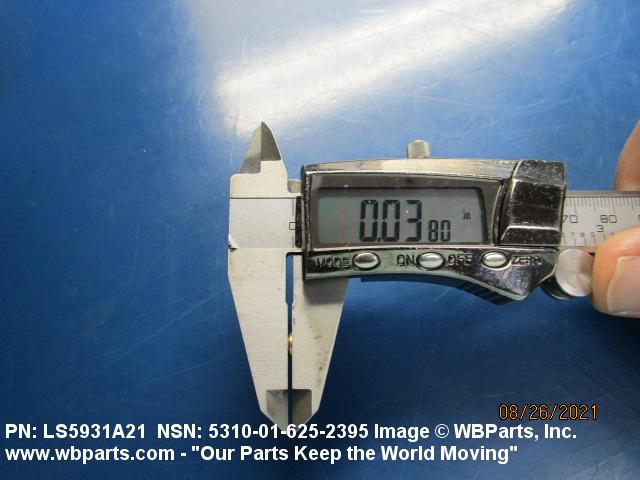

| MATERIAL THICKNESS | 0.037 INCHES NOMINAL |
| RECESS ANGLE | 100.0 DEGREES NOMINAL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | LS5931 WASHER, 100 DEG FLUSH |
Restrictions/Controls & Freight Information | NSN 5310-01-625-2395
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
