NSN 5310-01-626-2196 3M463N10A31, 3M463N10A3-1 , 01-626-2196
Product Details | GANG ANGLE SELF-LOCKING NUT ASSEMBLY
5310-01-626-2196 An item composed of a specially designed angle and a series of nuts having integral self-locking features assembled in a predetermined spacing.
Part Alternates: 3M463N10A31, 3M463N10A3-1 , 5310-01-626-2196, 01-626-2196, 5310016262196, 016262196
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014063 | 01-626-2196 | 60782 ( NUT ASSEMBLY, SELF-LOCKING, GANG ANGLE ) |

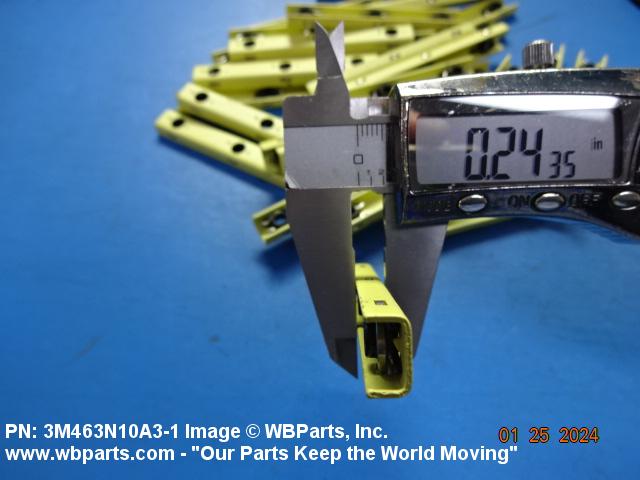

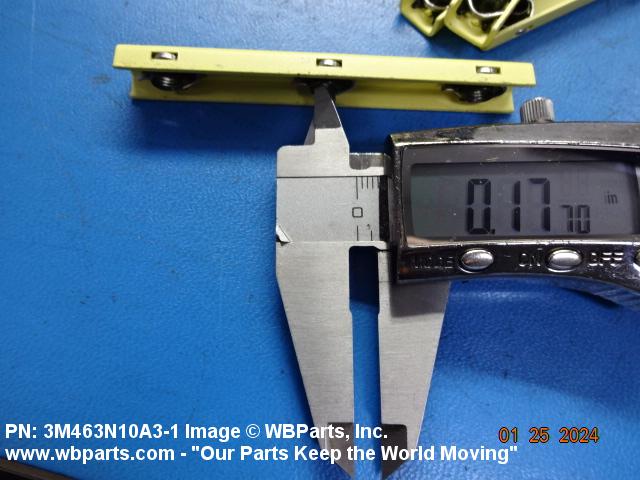

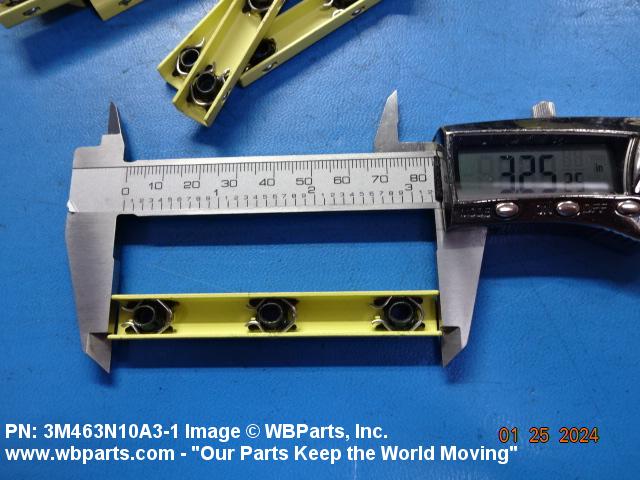

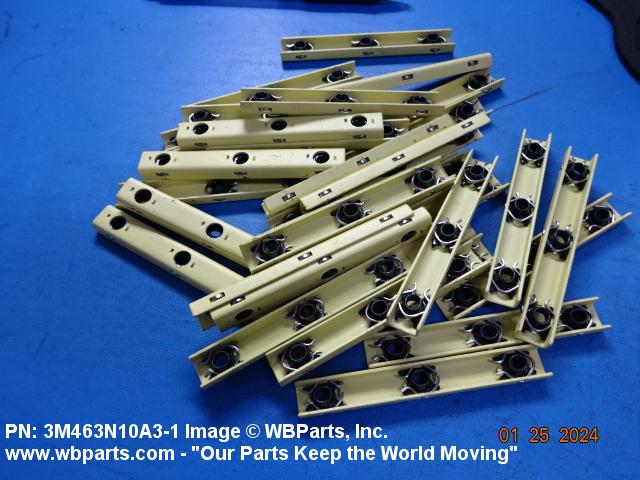

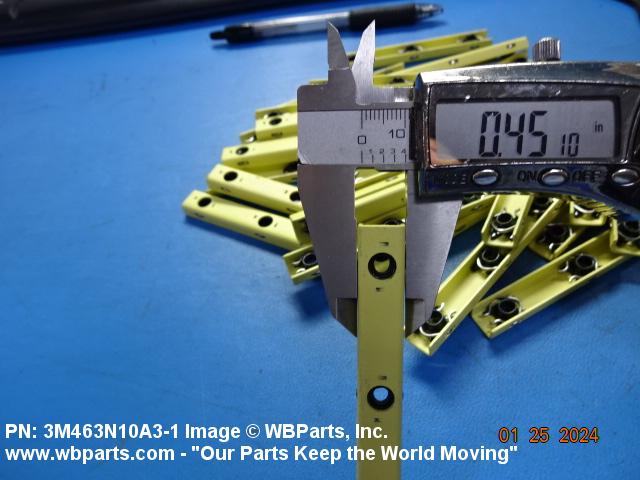

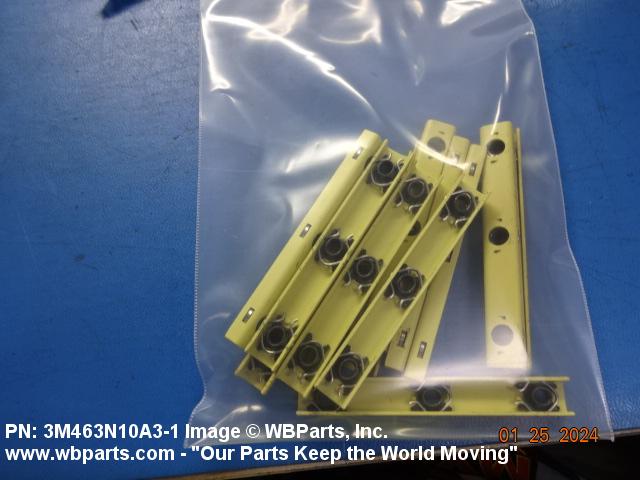

Drawings & Photos | NSN 5310-01-626-2196
Demand History | NSN 5310-01-626-2196
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M463N10A3-1 | 2024-10-289 | 18 | DIBBS |
| 3M463N10A31 | 2024-01-19 | 14 | United States |
| 3M463N10A31 | 2024-01-19 | 34 | United States |
| 3M463N10A31 | 2024-01-12 | 14 | United States |
| 3M463N10A31 | 2024-01-12 | 34 | United States |
Cross Reference | NSN 5310-01-626-2196
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M463N10A3-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-626-2196
Related Products | NSN 5310-01-626-2196
Technical Data | NSN 5310-01-626-2196
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.1900 INCHES |
| THREAD QUANTITY PER INCH | A32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/12 FED STD SINGLE MATERIAL RESPONSE OR |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TYPE II, CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | GANG CHANNEL, SELF LOCKING |
| OVERALL HEIGHT | 0.230 INCHES NOMINAL |
| BASE WIDTH | 0.452 INCHES NOMINAL |
| NUT LENGTH | 0.255 INCHES NOMINAL |
| BASE THICKNESS | 0.040 INCHES NOMINAL |
| NUT HEIGHT | 0.160 INCHES NOMINAL |
| MOUNTING STYLE | SPECIAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT QUANTITY | 10 |
| NUT COUNTERBORE DEPTH | 0.062 INCHES NOMINAL NUT |
| SPECIAL FEATURES | NUT SPACING 1.250 INCHES |
| III END ITEM IDENTIFICATION | F-15SA |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL |
