NSN 5310-01-631-5093 4BTXSS, 4BTX-SS , 01-631-5093
Product Details | HEXAGON PLAIN NUT
5310-01-631-5093 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: 4BTXSS, 4BTX-SS , 5310-01-631-5093, 01-631-5093, 5310016315093, 016315093
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014260 | 01-631-5093 | 01857 ( NUT, PLAIN, HEXAGON ) |

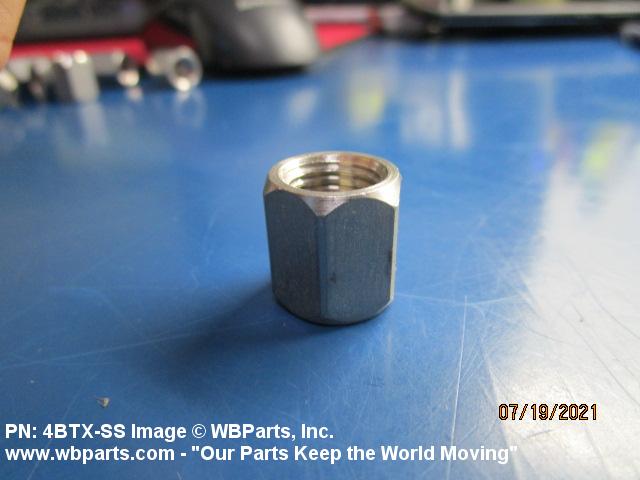

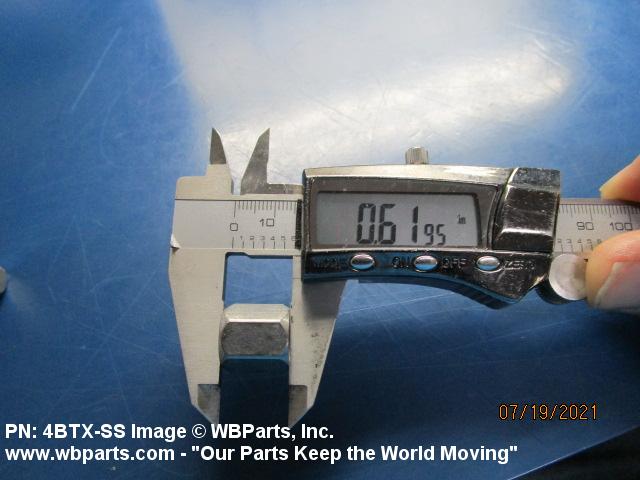

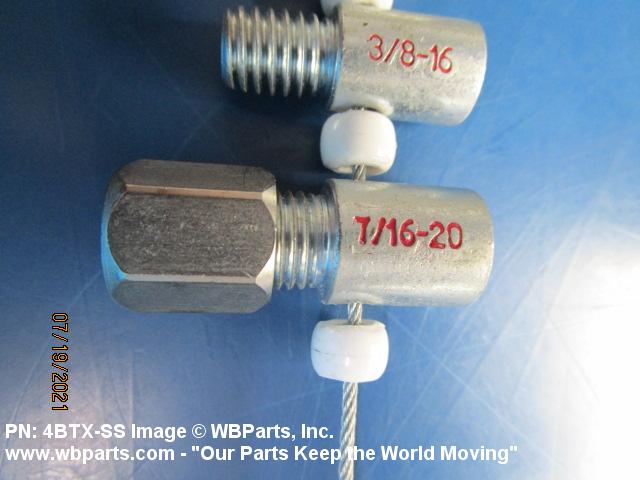

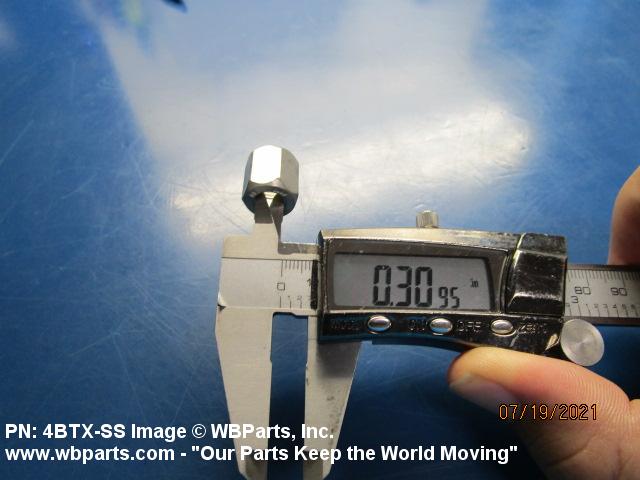

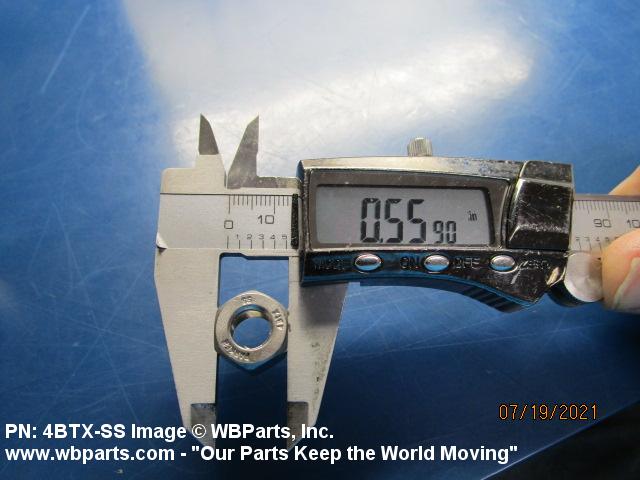

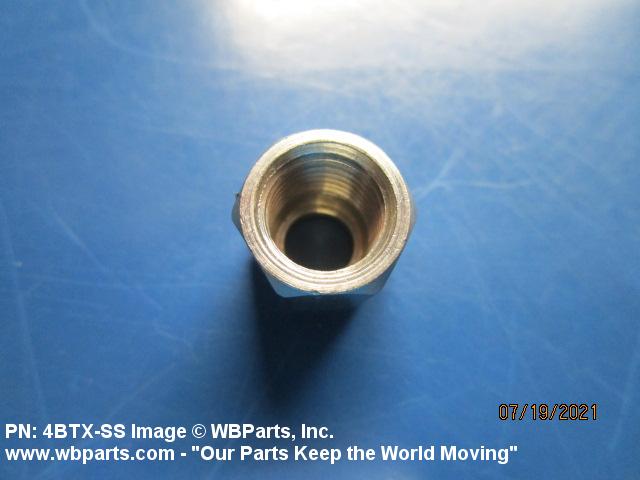

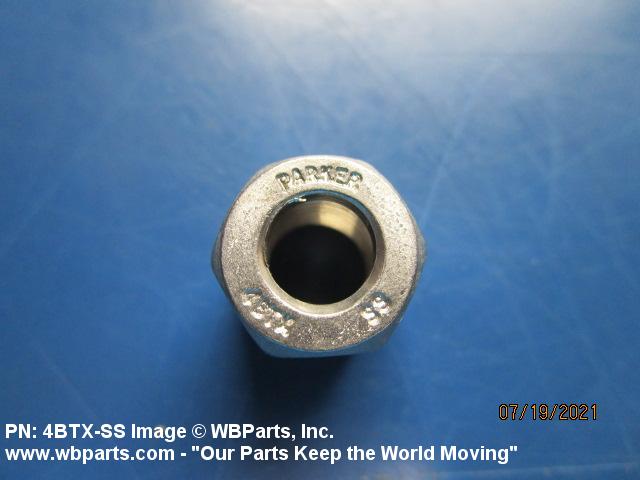

Drawings & Photos | NSN 5310-01-631-5093
Demand History | NSN 5310-01-631-5093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4BTX-SS | 2025-08-217 | 25 | DIBBS |
| 4BTXSS | 2024-11-312 | 4 | United States |
| 4BTXSS | 2023-06-159 | 3 | United States |
| 4BTX-SS | 2022-04-116 | 1 | DIBBS |
| 4BTXSS | 2021-10-279 | 50 | United States |
| 4BTXSS | 2021-07-190 | 4 | United States |
| 4BTXSS | 2020-11-329 | 2 | US |
| 4BTXSS | 2019-08-234 | 20 | United States |
| 4BTX-SS | 2019-06-160 | 3 | DIBBS |
| 5310-01-631-5093 | 2018-12-345 | 3 | DIBBS |
| 5310-01-631-5093 | 2015-10-287 | 30 | DIBBS |
| 5310-01-631-5093 | 2015-09-272 | 30 | DIBBS |
| 4BTXSS | 2013-12-354 | 600 | US |
| 4BTXSS | 2013-12-354 | 900 | US |
Cross Reference | NSN 5310-01-631-5093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4BTX-SS | 012A4 | PARKER HANNIFIN CORPORATION DIV HYDRAULIC FILTER DIVISION - UCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-631-5093
Technical Data | NSN 5310-01-631-5093
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.4375 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 316 OVERALL |
| NUT STYLE | HEXAGON |
| BEARING SURFACE TYPE | CHAMFERED |
| SPECIAL FEATURES | 37 DEGREE FLARE,JIC |
| III END ITEM IDENTIFICATION | 8-POINT 24V DC OUTPUT;VAN NITRO RECEIVER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT,1/4 |
Restrictions/Controls & Freight Information | NSN 5310-01-631-5093
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093470 | BOLTS/NUTS I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-631-5093
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
