NSN 5315-00-008-6419 14416121, 14-41612-1, 00-008-6419

5315-00-008-6419

Part Alternates: 14416121, 14-41612-1, 5315-00-008-6419, 00-008-6419, 5315000086419, 000086419

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 JUL 1972	00-008-6419	77777 ( )

Part Number	Request Date	QTY	Origin
14-41612-1	2020-02-57	3	DIBBS
14-41612-1	2019-11-316	3	DIBBS
14-41612-1	2019-02-44	1	DIBBS
5315-00-008-6419	2018-01-03	1	DIBBS
5315-00-008-6419	2017-07-208	5	US
5315-00-008-6419	2017-07-193	5	United States
5315-00-008-6419	2017-06-172	1	DIBBS
5315-00-008-6419	2016-05-126	14	US
5315-00-008-6419	2015-10-295	3	United States
5315-00-008-6419	2015-09-245	3	DIBBS
5315-00-008-6419	2015-05-124	1	DIBBS
5315-00-008-6419	2015-04-117	3	DIBBS
5315-00-008-6419	2015-04-112	1	DIBBS
5315-00-008-6419	2015-03-76	3	DIBBS
5315-00-008-6419	2015-01-08	1	DIBBS
5315-00-008-6419	2014-12-362	1	DIBBS
5315-00-008-6419	2013-12-350	2	DIBBS
5315-00-008-6419	2013-06-175	1	DIBBS
5315-00-008-6419	2012-10-295	1	DIBBS
5315-00-008-6419	2012-10-295	4	DIBBS
5315-00-008-6419	2012-01-10	10	DIBBS
5315-00-008-6419	2011-10-290	10	DIBBS
5315-00-008-6419	2011-08-216	10	DIBBS
5315-00-008-6419	2011-02-45	1	DIBBS
5315-00-008-6419	2009-10-279	10	DIBBS
5315-00-008-6419	2009-10-274	4	DIBBS

Part Number	Cage Code	Manufacturer
14-41612-1	0JRC1	NORTHROP GRUMMAN TECHNICAL SERVICES, INC.
14-41612-1	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5315-00-008-6419

Compare

5315-00-008-7512, 5315-00-008-7808, 5315-00-008-7809, 5315-00-008-7841, 5315-00-008-7844

Characteristic	Specifications

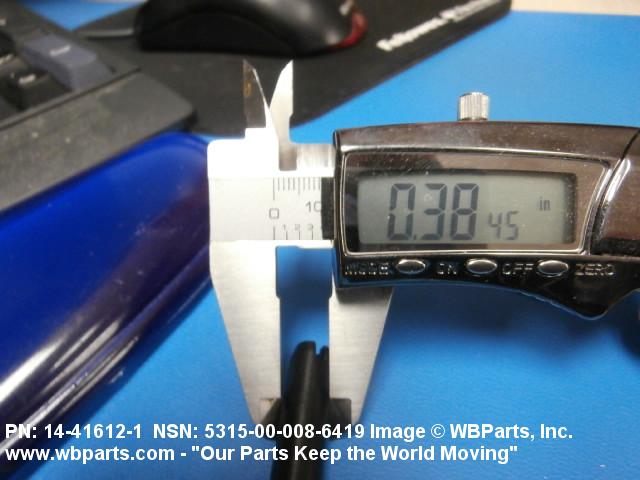

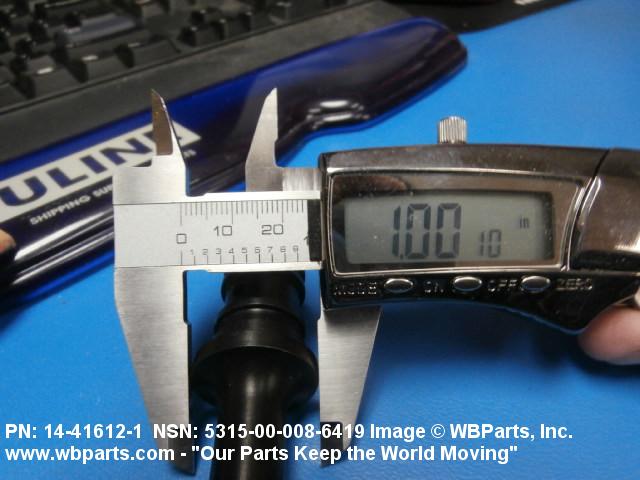

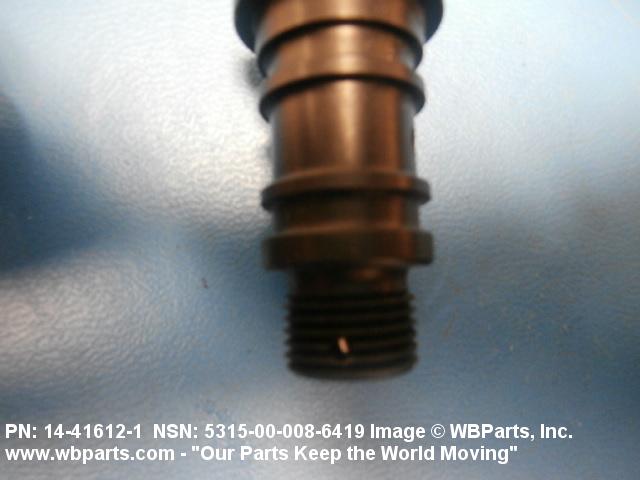

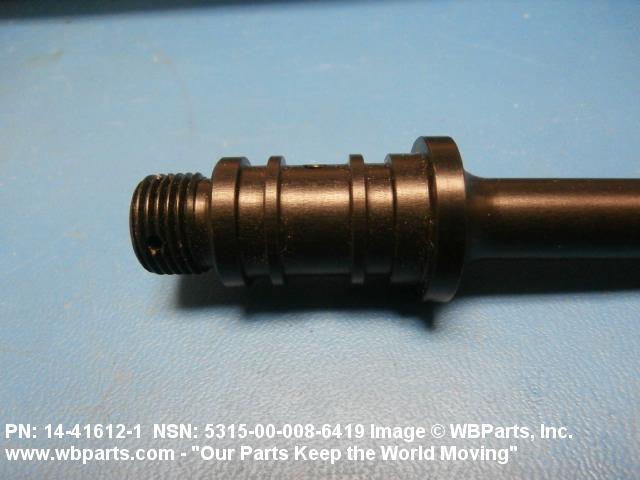

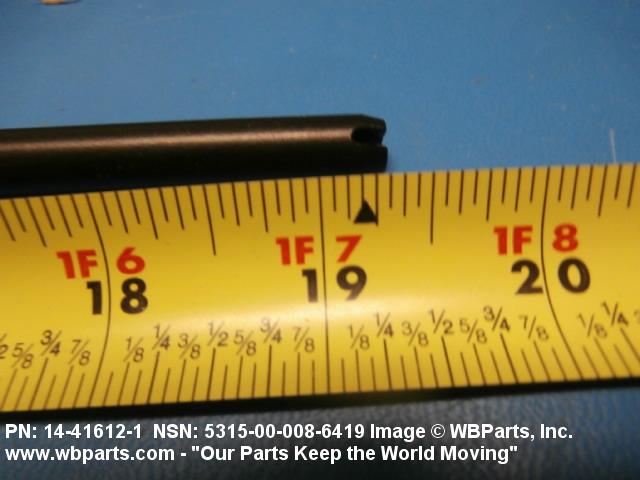

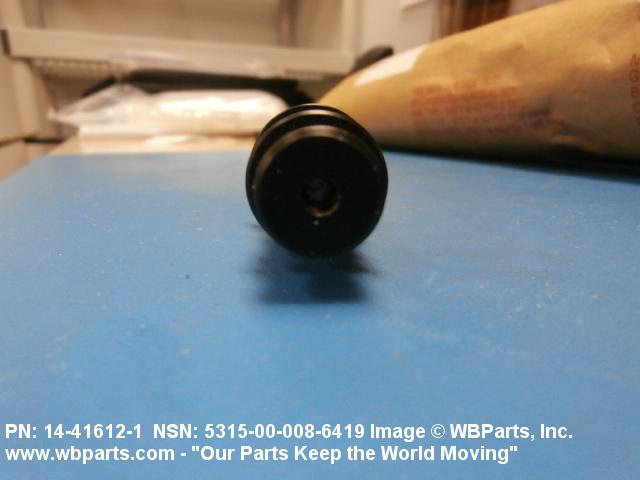

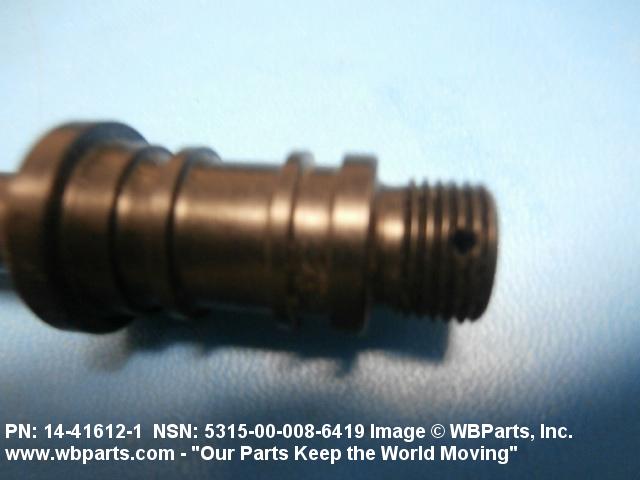

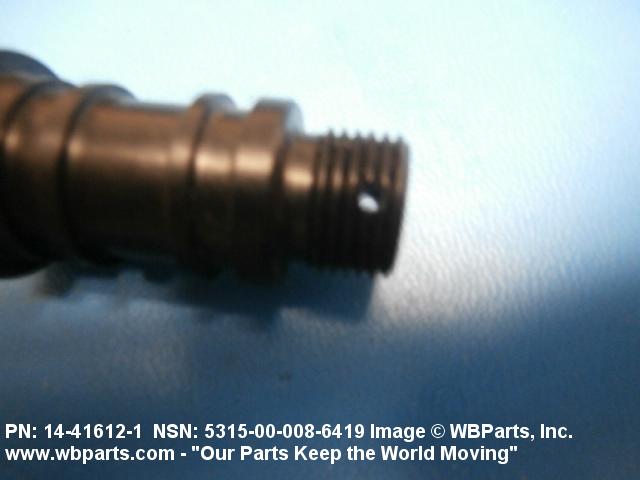

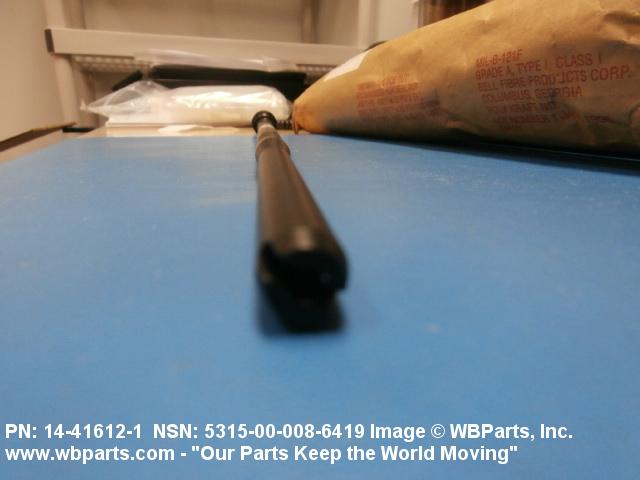

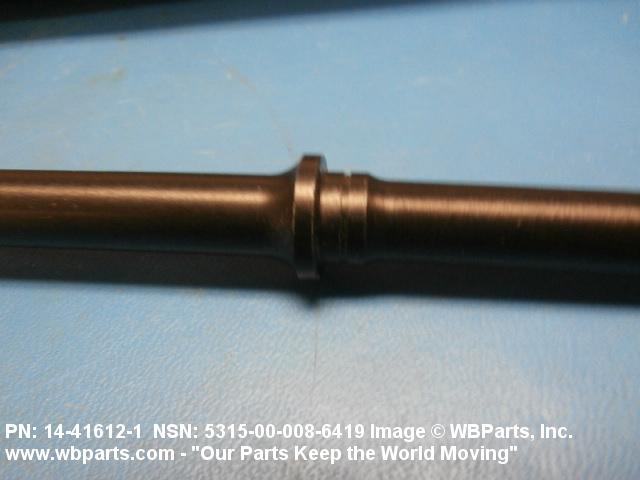

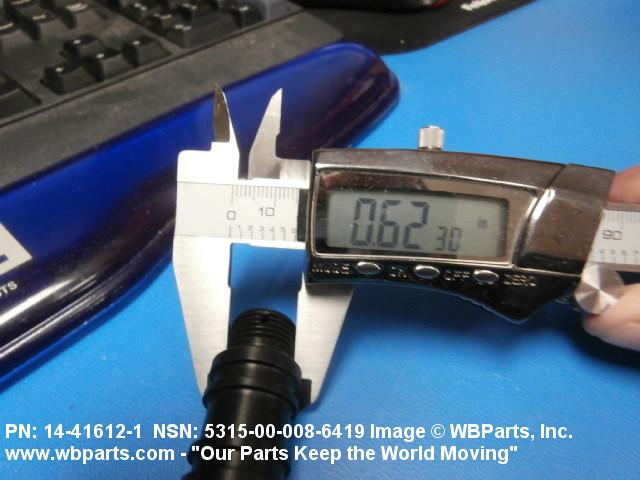

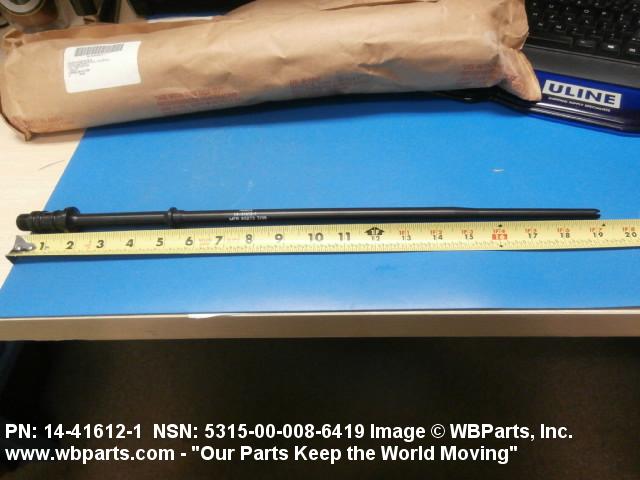

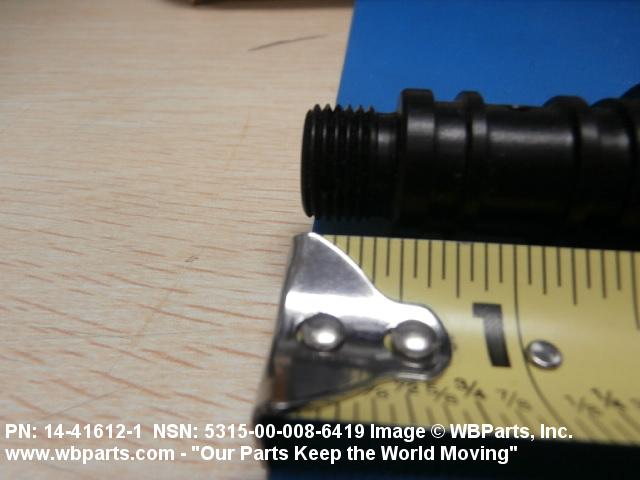

GENERAL CHARACTERISTICS ITEM DESCRIPTION	ALUMINUM ALLOY QQ-A-225/6 NO. 2024-T351,19.310 IN. O/A LG,1.000 IN. O/A DIA,AS NOTED MACHINED SURFACES 32 AND 125 MICROINCHFINISH,0.625-18 UNF-3A THD ONE END 0.585 IN. LG
III FSC APPLICATION DATA	LANDING GEAR,RETRACTABLE
MANUFACTURERS CODE	76823

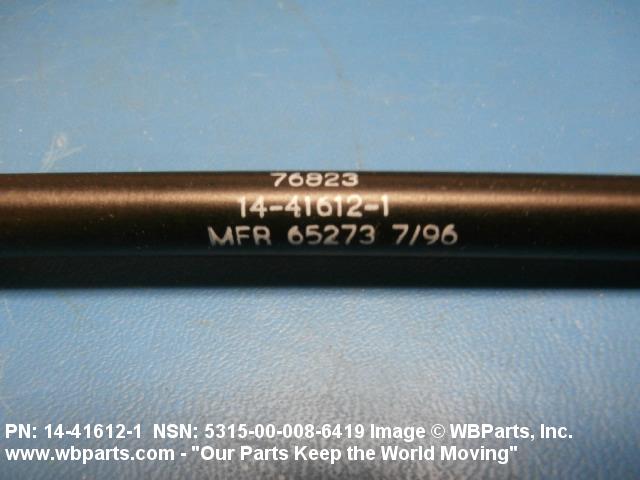

DESIGN CONTROL REFERENCE	14-41612-1

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	012190	AIRCRAFT LANDING GEARS ETC SUB2
Less than car load rating	J	100.2
Less than truck load rating	J	100.2
Water commodity Code	671	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	LE	SU:LANDING GEAR SYSTEMS AND COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
