NSN 5315-00-008-7852 M459521610, M45952-1-6-10, BLDS610

Product Details | QUICK RELEASE PIN

5315-00-008-7852 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: M459521610, M45952-1-6-10, BLDS610, BLDS6-10, MILP45952, 801A610S, 801A6-10S, 5315-00-008-7852, 00-008-7852, 5315000087852, 000087852

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 JUL 1972	00-008-7852	08323 ( PIN, QUICK RELEASE )

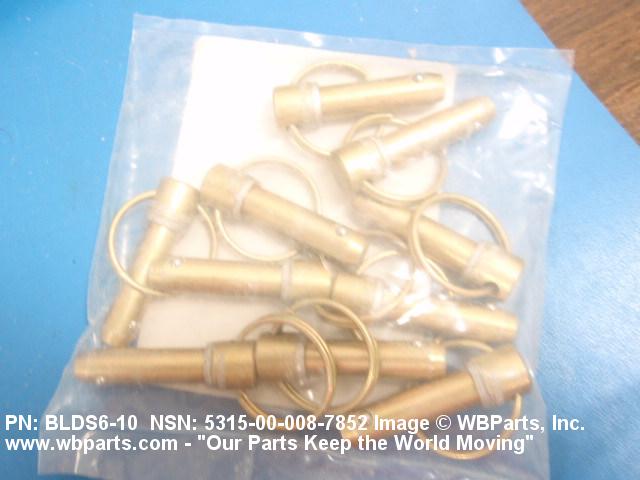

Drawings & Photos | NSN 5315-00-008-7852

Part Number	Request Date	QTY	Origin
5315-00-008-7852	2025-09-265	27	DIBBS
5315-00-008-7852	2025-09-254	27	DIBBS
M459521610	2024-11-320	10	United States
5315-00-008-7852	2024-03-87	132	DIBBS
5315-00-008-7852	2024-03-79	132	DIBBS
5315-00-008-7852	2023-12-363	153	DIBBS
5315-00-008-7852	2023-12-355	153	DIBBS
5315-00-008-7852	2023-10-288	94	DIBBS
5315-00-008-7852	2023-05-142	94	DIBBS
5315-00-008-7852	2013-11-319	1	DIBBS-RFPs
5315-00-008-7852	2012-09-261	130	DIBBS
5315-00-008-7852	2012-04-103	33	DIBBS
5315-00-008-7852	2012-03-75	16	DIBBS
5315-00-008-7852	2011-11-307	16	DIBBS
5315-00-008-7852	2011-09-256	16	DIBBS
5315-00-008-7852	2011-05-130	16	DIBBS
5315-00-008-7852	2011-05-122	2	DIBBS
M459521610	2011-01-25	1	United States
5315-00-008-7852	2011-01-24	1	United States
5315-00-008-7852	2009-08-237	10	United States

Cross Reference | NSN 5315-00-008-7852

Part Number	Cage Code	Manufacturer
801A6-10S	09094	QRP, INC.
BLDS6-10	84256	AVIBANK MFG., INC.
M45952-1-6-10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILP45952	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-008-7852

Compare

Related Products | NSN 5315-00-008-7852

5315-00-008-7866, 5315-00-008-7953, 5315-00-008-8548, 5315-00-008-8734, 5315-00-008-8751

Technical Data | NSN 5315-00-008-7852

Characteristic	Specifications
MATERIAL	STEEL COMP 4130 SHANK
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK
SURFACE TREATMENT	CADMIUM AND CHROMATE SHANK
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OR MIL-C-81562,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OR MIL-C-81562,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SHANK
STYLE DESIGNATOR	Q250 RING HANDLE
HEAD DIAMETER	0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM
SHANK DIAMETER	0.3700 INCHES MINIMUM AND 0.3730 INCHES MAXIMUM
RING HANDLE DIAMETER	1.000 INCHES MINIMUM AND 1.187 INCHES MAXIMUM
GRIP LENGTH	1.000 INCHES MINIMUM AND 1.020 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE	0.380 INCHES MINIMUM AND 0.560 INCHES MAXIMUM
DETENT TO TAPERED END DISTANCE	0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM
ACTUATION TYPE	PULL AND PUSH
DETENT QUANTITY	2
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILP45952
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M45952-1-6-10

Restrictions/Controls & Freight Information | NSN 5315-00-008-7852

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-008-7852

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9Z	Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9I	Defense Industrial Supply Center Philadelphia, PA 19111
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	F EA : Each
