NSN 5315-00-042-8609 MS17989C612, BLC6L12N, BLC6L12NM
Product Details | QUICK RELEASE PIN
5315-00-042-8609 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17989C612, BLC6L12N, BLC6L12NM, DLC6L12N, LH6CL0612, LH6XL12M, LH6X-L-12M, 5315-00-042-8609, 00-042-8609, 5315000428609, 000428609
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAY 1968 | 00-042-8609 | 08323 ( PIN, QUICK RELEASE ) |

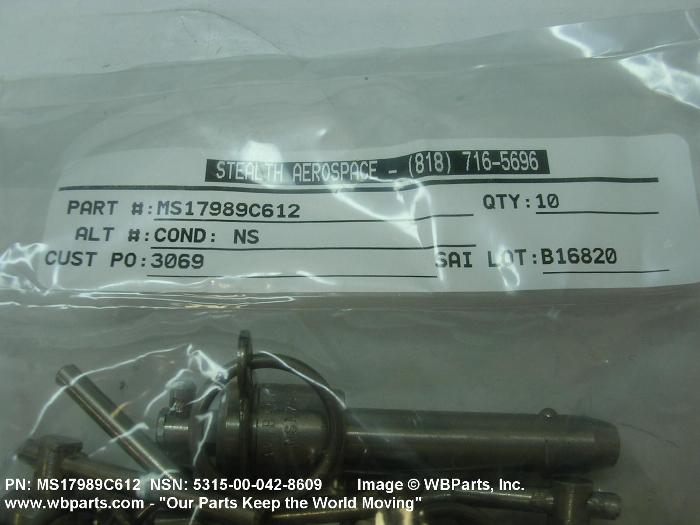

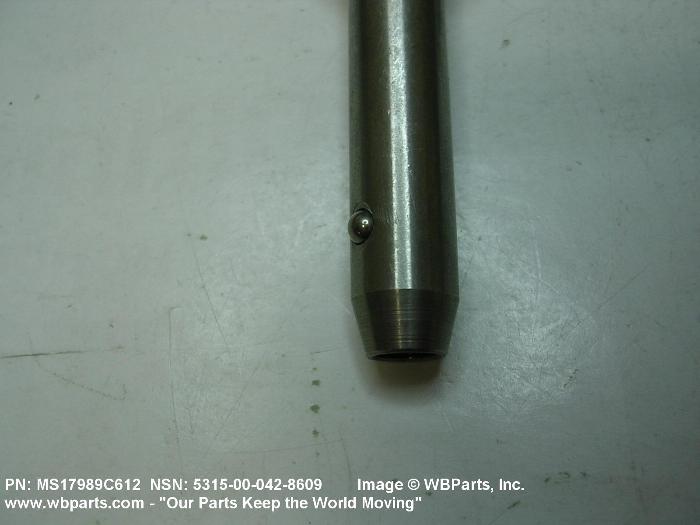

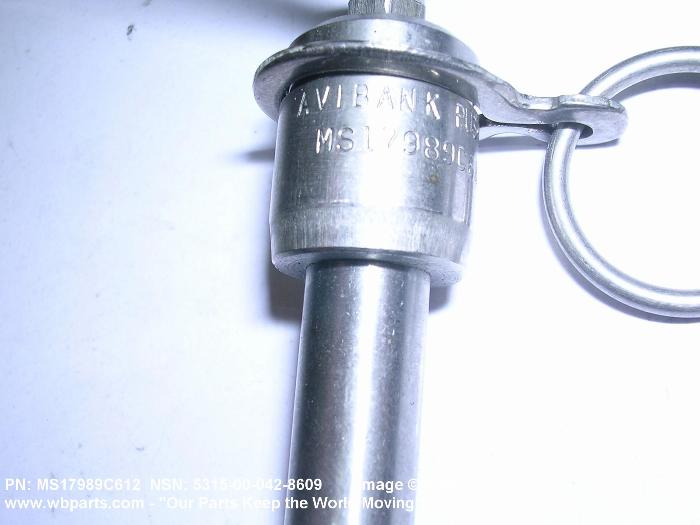

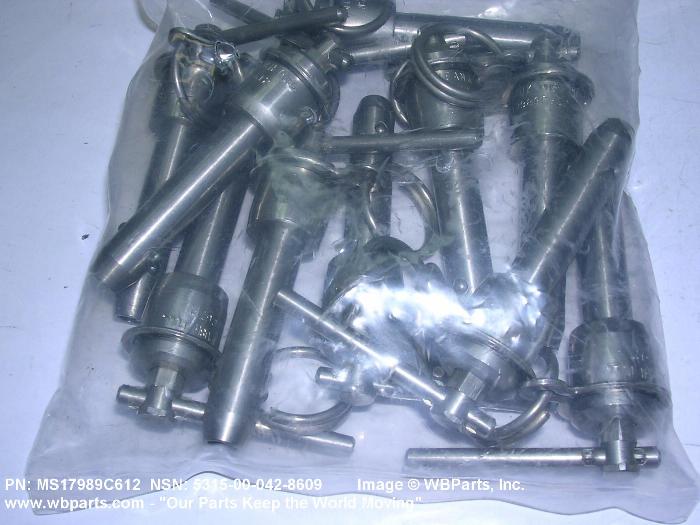

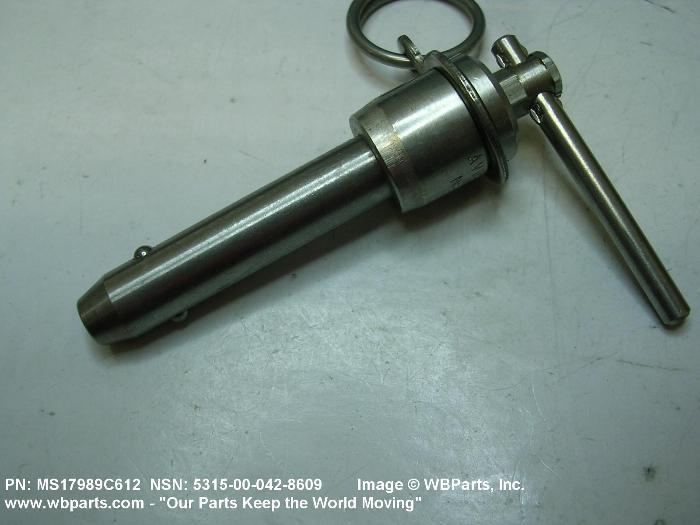

Drawings & Photos | NSN 5315-00-042-8609
Demand History | NSN 5315-00-042-8609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17989C612 | 2008-04-120 | 10 | United States |
Cross Reference | NSN 5315-00-042-8609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC6L12N | 84256 | AVIBANK MFG., INC. |
| BLC6L12N | R1120 | SATAIR A/S |
| BLC6L12NM | 84256 | AVIBANK MFG., INC. |
| BLC6L12NM | R1120 | SATAIR A/S |
| DLC6L12N | 16258 | SPACELOK INC. |
| LH6CL0612 | 83014 | HARTWELL CORPORATION |
| LH6X-L-12M | 83014 | HARTWELL CORPORATION |
| MS17989C612 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17989C612 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17989C612 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-042-8609
Related Products | NSN 5315-00-042-8609
Technical Data | NSN 5315-00-042-8609
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM OVERALL |
| STYLE DESIGNATOR | Q246 L HANDLE |
| HEAD DIAMETER | 0.510 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| SHANK DIAMETER | 0.372 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| GRIP LENGTH | 1.200 INCHES MINIMUM AND 1.220 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.090 INCHES MAXIMUM |
| PIN CENTER TO HANDLE END DISTANCE | 1.375 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.460 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | LINK OR RING |
Restrictions/Controls & Freight Information | NSN 5315-00-042-8609
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-042-8609
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
