NSN 5315-00-047-2034 LS35103PN06H067, 00-047-2034, 000472034
Product Details | HEADED STRAIGHT PIN
5315-00-047-2034 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: LS35103PN06H067, 5315-00-047-2034, 00-047-2034, 5315000472034, 000472034
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 NOV 1972 | 00-047-2034 | 02384 ( PIN, STRAIGHT, HEADED ) |

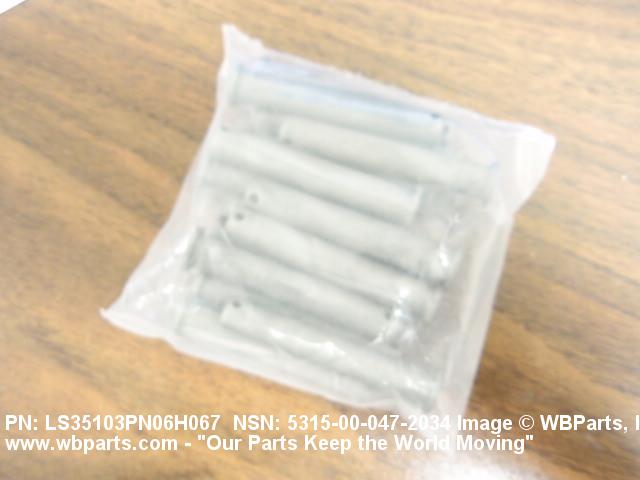

Drawings & Photos | NSN 5315-00-047-2034
Demand History | NSN 5315-00-047-2034
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-047-2034 | 2020-11-317 | 152 | DIBBS |
| 5315-00-047-2034 | 2020-11-309 | 152 | DIBBS |
| 5315-00-047-2034 | 2020-10-289 | 20 | DIBBS |
| 5315-00-047-2034 | 2020-10-281 | 20 | DIBBS |
| 5315-00-047-2034 | 2016-11-307 | 39 | DIBBS |
| 5315-00-047-2034 | 2016-09-263 | 28 | DIBBS |
| 5315-00-047-2034 | 2016-09-256 | 28 | DIBBS |
| LS35103PN06H067 | 2010-10-299 | 15 | United States |
Cross Reference | NSN 5315-00-047-2034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS35103PN06H067 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-047-2034
Related Products | NSN 5315-00-047-2034
Technical Data | NSN 5315-00-047-2034
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5628 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 23860 SINGLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.073 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| DIAMETER | 0.371 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 2.184 INCHES MINIMUM AND 2.204 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| HEIGHT | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.106 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5315-00-047-2034
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
