NSN 5315-00-056-9386 MS16555640, MS16555-640, B68275

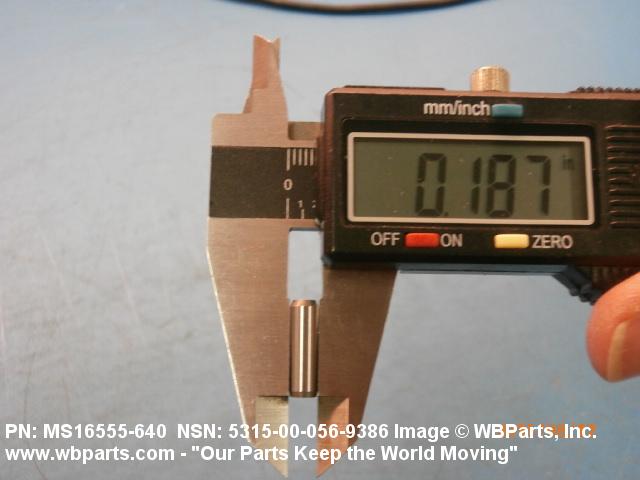

Product Details | HEADLESS STRAIGHT PIN

5315-00-056-9386 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS16555640, MS16555-640, B68275, Y1122A60008, Y1122A6-0008, 010062-640, 10122538 , 2650-3375GP1 ITEM 38, 26503375GP1ITEM38, 42P73805200, 42P7380-5200, 5315-00-056-9386, 00-056-9386, 5315000569386 , 010062640, 211049613, 000569386

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-056-9386	02390 ( PIN, STRAIGHT, HEADLESS )

Drawings & Photos | NSN 5315-00-056-9386

Part Number	Request Date	QTY	Origin
MS16555640	2025-03-62	50	US
MS16555640	2025-01-06	822	Israel
5315-00-056-9386	2024-12-346	6305	DIBBS
MS16555640	2023-08-237	240	KR
MS16555-640	2023-02-52	100	Saudi Arabia
MS16555640	2022-06-180	45	United States
5315-00-056-9386	2022-01-20	540	US
MS16555640	2021-06-180	2	Saudi Arabia
MS16555640	2021-01-18	2	United States
MS16555640	2020-08-230	20	US
5315-00-056-9386	2020-01-02	1660	DIBBS
MS16555640	2019-10-283	2200	United States
MS16555640	2019-10-282	100	United States
5315-00-056-9386	2019-05-129	6917	DIBBS
5315-00-056-9386	2018-10-281	400	United States
5315-00-056-9386	2018-09-246	1483	DIBBS
5315-00-056-9386	2017-09-244	30	DE
MS16555640	2017-07-205	500	United States
MS16555640	2016-05-140	200	IN
MS16555640	2015-10-288	100	United States
MS16555640	2015-09-258	250	United States
MS16555640	2015-07-211	12	United States
MS16555640	2015-07-201	100	United States
MS16555-640	2015-05-141	6	United States
MS16555-640	2015-05-141	6	United States
MS16555640	2015-03-69	18	United States
MS16555640	2014-10-293	100	United States
MS16555640	2014-10-293	250	United States
5315-00-056-9386	2014-07-195	10	US
5315-00-056-9386	2014-03-90	10	us
MS16555640	2012-04-94	500	US
MS16555640	2012-02-53	50	US
MS16555640	2012-02-53	100	US
MS16555640	2012-02-53	250	US
MS16555640	2012-02-53	500	US
MS16555640	2012-02-53	1000	US
MS16555640	2011-12-340	25	US
MS16555640	2011-11-318	200	US
MS16555640	2011-05-145	1	US
5315-00-056-9386	2011-02-34	36	US
5315-00-056-9386	2011-02-33	200	us
MS16555640	2011-01-17	50	US
MS16555640	2010-09-260	6	Netherlands
5315-00-056-9386	2010-05-131	1000	US
5315-00-056-9386	2010-02-35	100	US
MS16555640	2009-07-190	1300	IL
5315-00-056-9386	2009-06-180	1300	IL
MS16555640	2008-11-317	25	Canada
MS16555640	2007-10-296	200	US

Cross Reference | NSN 5315-00-056-9386

Part Number	Cage Code	Manufacturer
010062-640	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
211049613	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2650-3375GP1 ITEM 38	51802	HANSOME ENERGY SYSTEMS INC
2650-3375GP1 ITEM 38	95402	ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC
42P7380-5200	02387	NAVAL AIR WARFARE CENTER AIRCRAFT DIV
5315000569386	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
B68275	K0967	MBDA UK LTD
MS16555-640	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Y1122A6-0008	08484	BREEZE-EASTERN CORPORATION
