NSN 5315-00-058-9782 MS16562236, MS16562-236, MS16562236MOD
Product Details | SPRING PIN
5315-00-058-9782 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS16562236, MS16562-236, MS16562236MOD, MS171590, NAS5615612, NAS56156-12, NAS561C612, NAS561C6-12, NAS561S612, NAS561S6-12, A40314, A4031-4, A4031434, A4031-4-34, SMC14955375, SMC149553-75, VAL260230V, VAL260-230V , RB554W/230VAC COIL , RB554W230VACCOIL, 0495110, 0495-110, 243698589212, 243-6985892-12, 3110405000, 311-0405-000, 42P117001120, 42-P-11700-1120, 589782, 67A81A39, 790401870736, 79-040-187-0736, 790401870750, 79-040-187-0750, 79R50111870736, 79R5011-187-0736, 915989, 5315-00-058-9782, 79-040-0750, 00-058-9782, 5315000589782, 000589782, 790400750
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-058-9782 | 02389 ( PIN, SPRING ) |

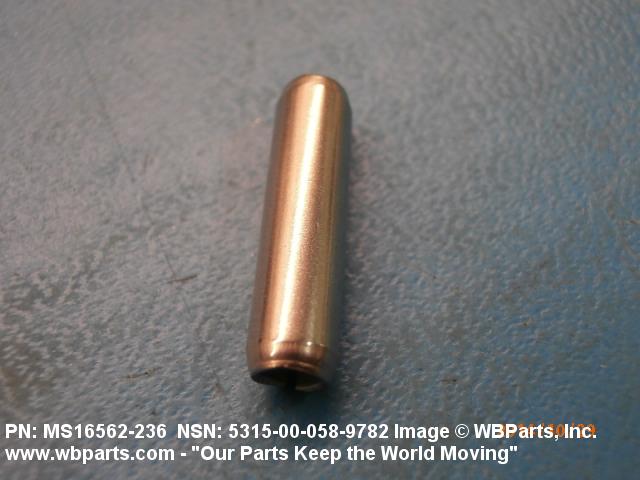

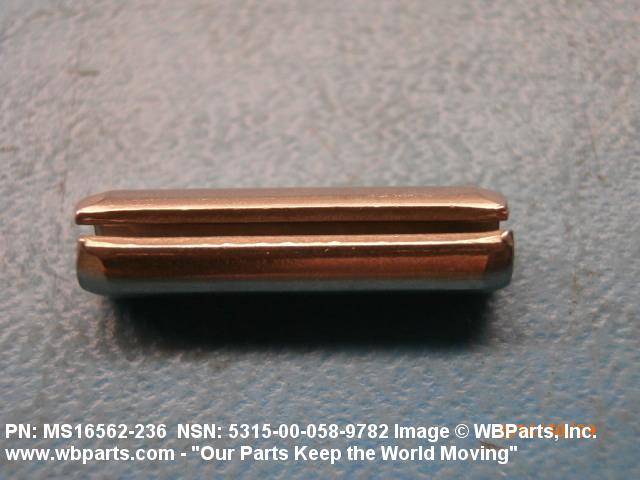

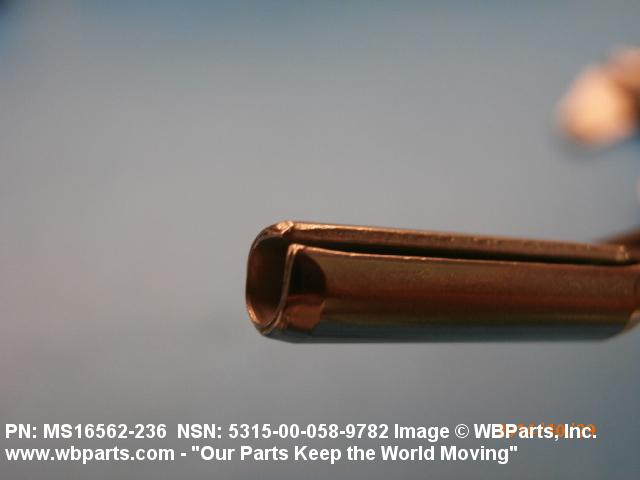

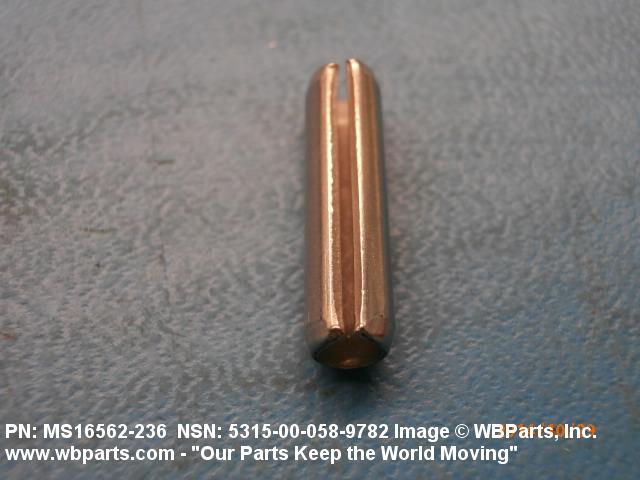

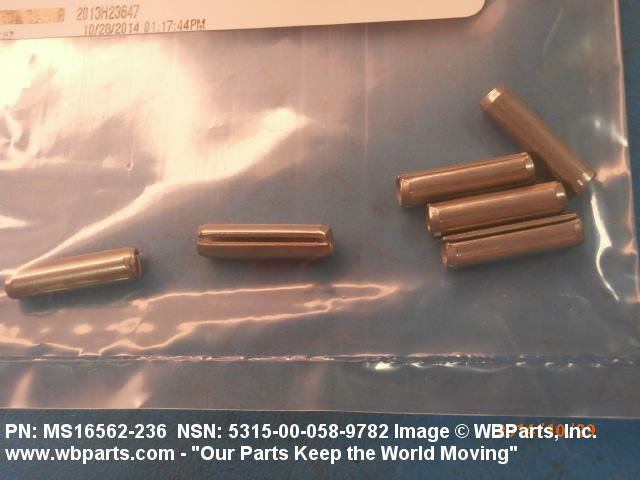

Drawings & Photos | NSN 5315-00-058-9782
Demand History | NSN 5315-00-058-9782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-058-9782 | 2023-02-44 | 50 | us |
| 5315-00-058-9782 | 2022-08-243 | 3643 | DIBBS |
| 5315-00-058-9782 | 2022-03-66 | 3275 | DIBBS |
| 5315-00-058-9782 | 2021-09-272 | 5308 | DIBBS |
| MS16562236 | 2020-03-70 | 1 | United States |
| 5315-00-058-9782 | 2019-02-34 | 2728 | DIBBS |
| 5315-00-058-9782 | 2018-12-343 | 3210 | DIBBS |
| 5315-00-058-9782 | 2018-11-330 | 7051 | DIBBS |
| 5315-00-058-9782 | 2018-11-322 | 7051 | DIBBS |
| MS16562236 | 2018-02-46 | 4 | United States |
| 5315-00-058-9782 | 2015-08-223 | 15095 | DIBBS |
| 5315-00-058-9782 | 2015-07-211 | 15095 | DIBBS |
| 5315-00-058-9782 | 2015-02-42 | 7143 | DIBBS |
| 5315-00-058-9782 | 2014-10-297 | 6 | United States |
| MS16562236 | 2014-06-176 | 8 | United States |
| MS16562236 | 2014-06-169 | 29 | United States |
| MS171590 | 2014-06-154 | 60 | United States |
| 5315-00-058-9782 | 2014-05-132 | 12 | United States |
| MS16562236 | 2013-12-339 | 100 | United States |
| 790401870750 | 2013-09-256 | 104 | UK |
| NAS561C612 | 2013-03-80 | 1 | United States |
| MS171590 | 2012-05-146 | 30 | CR |
| 5315-00-058-9782 | 2011-11-332 | 1 | US |
| MS171590 | 2011-05-132 | 36 | United States |
| MS171590 | 2011-05-132 | 32 | United States |
| 5315-00-058-9782 | 2010-11-316 | 280 | US |
| 5315-00-058-9782 | 2010-04-96 | 1 | US |
| 5315-00-058-9782 | 2010-04-95 | 2500 | DIBBS |
| 589782 | 2009-09-245 | 4 | IL |
| 5315-00-058-9782 | 2008-07-206 | 20 | Taiwan |
Cross Reference | NSN 5315-00-058-9782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0495-110 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 243-6985892-12 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 311-0405-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 42-P-11700-1120 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 589782 | 24617 | GENERAL MOTORS CORP |
| 79-040-0750 | 72962 | HARVARD INDUSTRIES INC |
| 79-040-187-0736 | 72962 | HARVARD INDUSTRIES INC |
| 79-040-187-0750 | 13257 | AMERACE LTD |
| 79-040-187-0750 | 72962 | HARVARD INDUSTRIES INC |
| 79R5011-187-0736 | 72962 | HARVARD INDUSTRIES INC |
| 915989 | 0AHU0 | KALMAR AC INC |
| A4031-4 | 19422 | DEMARKUS CORP REFRIGERATION ENGINEERING CORP |
| A4031-4-34 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| MS16562-236 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-236 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16562-236(MOD ) | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS171590 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS56156-12 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS561C6-12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS561S6-12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SMC149553-75 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-058-9782
Related Products | NSN 5315-00-058-9782
Technical Data | NSN 5315-00-058-9782
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 4400 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |

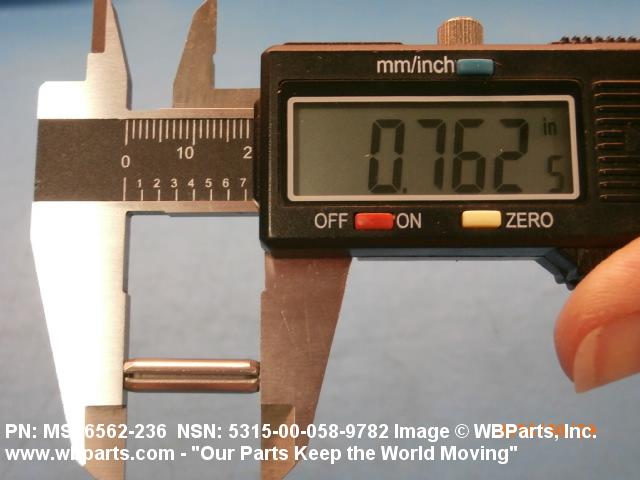

| OVERALL LENGTH | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |

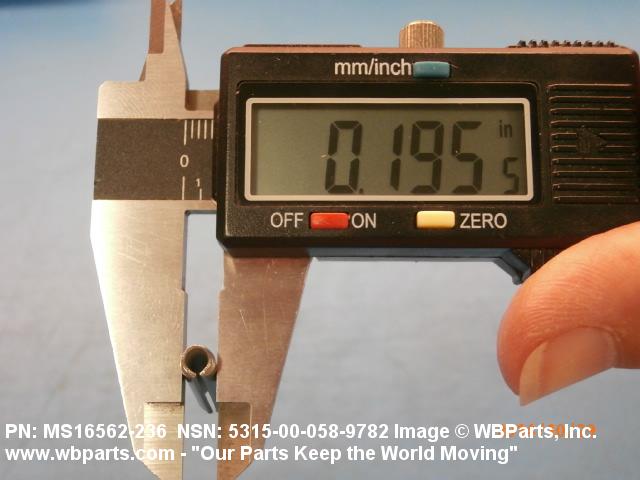

| DIAMETER | 0.194 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |

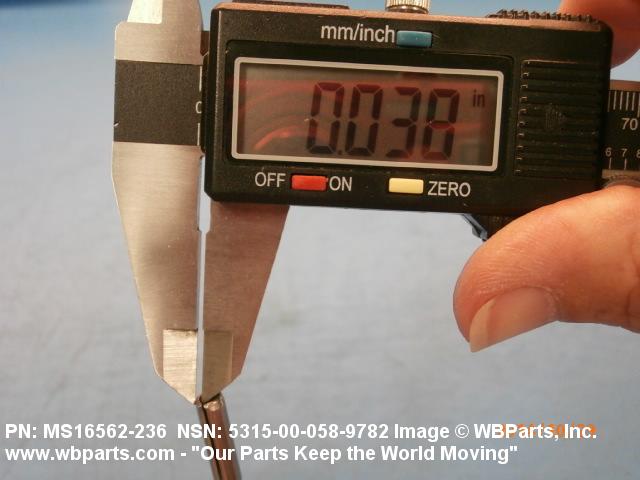

| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-058-9782
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-058-9782
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
