NSN 5315-00-058-9808 MS16562253, MS16562-253, NAS561C820
Product Details | SPRING PIN

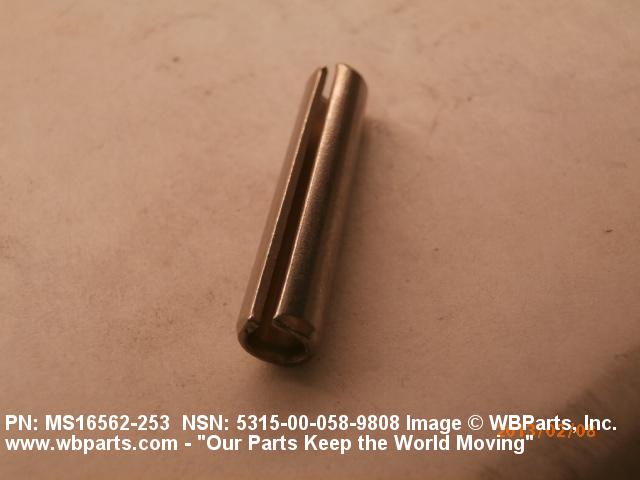

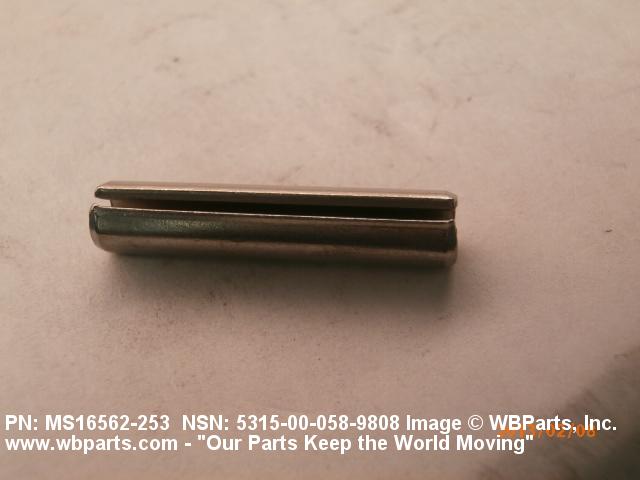

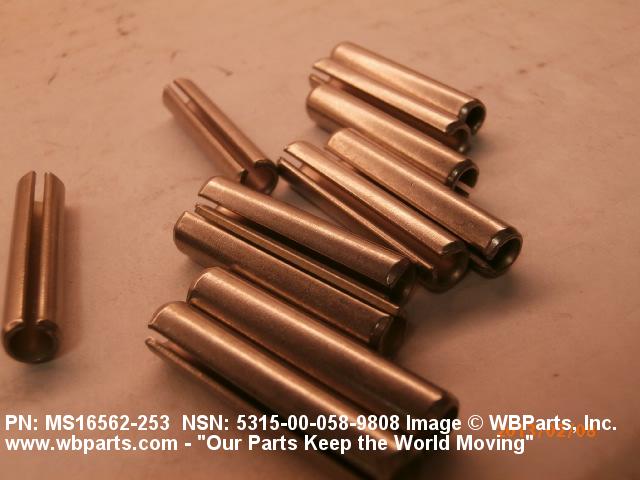

5315-00-058-9808 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS16562253, MS16562-253, NAS561C820, NAS561C8-20, R48274, R4827-4 , X138061503808PC21, X1-3806-1503808PC21, XT35830PC3583020, XT35830PC35830-20, XT35888PC21, FAN259 , FV 766383 ITEM 15, FV 766383-15, FV76638315, FV766383ITEM15, 1936830, 19368-30, 3583020, 35830-20, 42P117005200, 42P11700-5200, 790482501250, 79-048-250-1250, 5315-00-058-9808, 00-058-9808, 5315000589808, 000589808
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-058-9808 | 02389 ( PIN, SPRING ) |

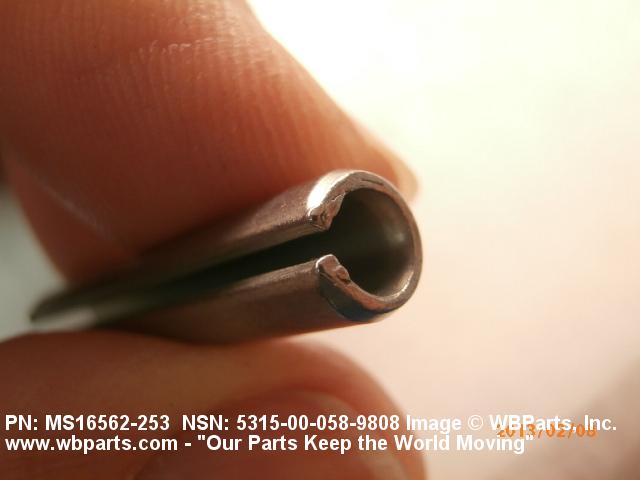

Drawings & Photos | NSN 5315-00-058-9808
Demand History | NSN 5315-00-058-9808
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-058-9808 | 2024-10-294 | 961 | DIBBS |
| 5315-00-058-9808 | 2024-08-219 | 1170 | DIBBS |
| MS16562253 | 2019-08-220 | 28 | US |
| MS16562-253 | 2018-11-310 | 4 | Israel |
| MS16562253 | 2017-09-256 | 10 | US |
| 5315-00-058-9808 | 2017-08-223 | 5 | US |
| MS16562253 | 2014-04-98 | 1535 | United States |
| MS16562253 | 2013-04-113 | 10 | United States |
| MS16562253 | 2013-02-35 | 100 | Israel |
| 5315-00-058-9808 | 2012-04-103 | 4000 | DIBBS |
| MS16562253 | 2012-03-74 | 311 | United States |
| MS16562253 | 2011-10-299 | 32 | US |
| MS16562253 | 2011-10-299 | 64 | US |
| 5315-00-058-9808 | 2011-09-250 | 320 | US |
| NAS561C820 | 2010-08-232 | 20 | US |
| 5315-00-058-9808 | 2009-12-364 | 200 | US |
| MS16562253 | 2009-09-266 | 100 | US |
| MS16562253 | 2009-09-266 | 150 | US |
| MS16562253 | 2009-09-266 | 200 | US |
| 5315-00-058-9808 | 2008-10-276 | 2000 | US |
Cross Reference | NSN 5315-00-058-9808
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19368-30 | 14418 | UNISYS CORP DEFENSE SYSTEMS |
| 35830-20 | 01359 | FAIRCHILD CONTROLS CORPORATION |
| 42P11700-5200 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 5315000589808 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 79-048-250-1250 | 72962 | HARVARD INDUSTRIES INC |
| FV 766383 ITEM 15 | U0795 | QINETIQ |
| FV 766383-15 | U0795 | QINETIQ |
| MS16562-253 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-253 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS561C8-20 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| X1-3806-1503808PC21 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| XT35830PC35830-20 | 01359 | FAIRCHILD CONTROLS CORPORATION |
| XT35888PC21 | 01359 | FAIRCHILD CONTROLS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-058-9808
Technical Data | NSN 5315-00-058-9808
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |

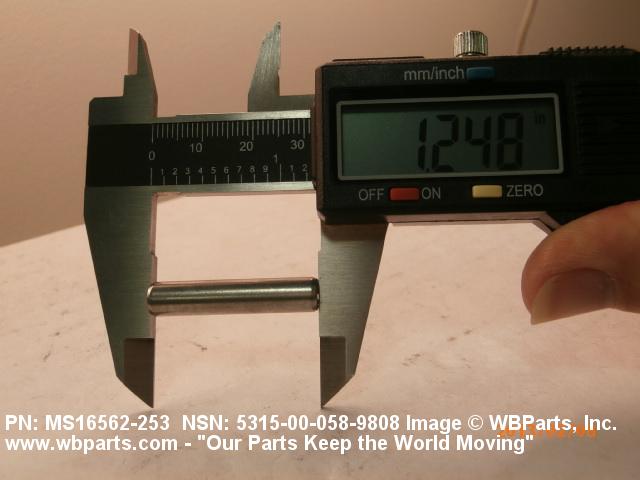

| OVERALL LENGTH | 1.230 INCHES MINIMUM AND 1.270 INCHES MAXIMUM |

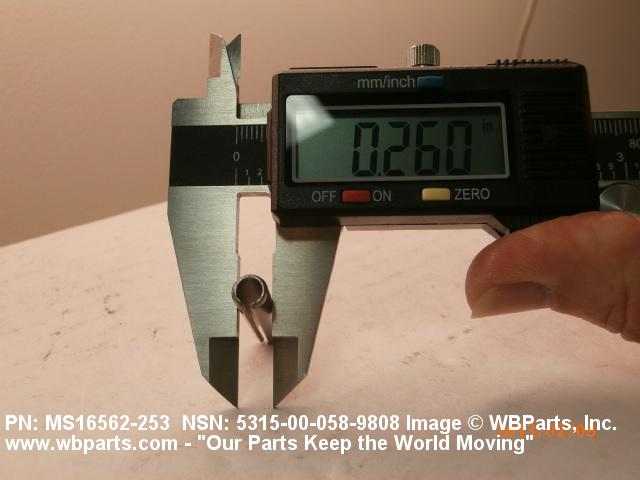

| DIAMETER | 0.258 INCHES MINIMUM AND 0.264 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.048 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-058-9808
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127262 | PROPELLERS WHLS/FANS ETC AXIAL |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
