NSN 5315-00-059-0491 MS24665371, MS24665-371, MS24665372

Product Details | COTTER PIN

5315-00-059-0491 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.

Part Alternates: MS24665371, MS24665-371, MS24665372, MS24665-372, MS24665379, MS24665-379 , MR3610, MR36-10, MR377, MR37-7, AN380C45, AN380C4-5, S185387, S18-5387, RS4011, RS40-11, EJ10095, EJ-10095, FFP386, F420, 591595, 591-595, 59D12, 60-1066 REV A PC NO 595, 601066REVAPCNO595, 803-5184144 PC 38 PG 2 ZONE 12-D, 8035184144PC38PG2ZONE12D, 805-1624071 PC6, 8051624071PC6, 805-1630161 PC2, 8051630161PC2, 01000932, 010-009-32, 0232FPC14, 10122546, 111S72, 122-2557733 PC NO. 37, 1222557733PCNO37, 125-02 PC 6, 12502PC6, 12Z48PC444, 12Z505616, 12Z5056-16, 139002, 139-002, 156816, 2D337771, 2D3-377-71 , 5315-00-059-0491, 00-059-0491, 5315000590491, 000590491

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-059-0491	02381 ( PIN, COTTER )

Drawings & Photos | NSN 5315-00-059-0491

Part Number	Request Date	QTY	Origin
5315-00-059-0491	2025-02-55	1	US
5315-00-059-0491	2025-02-55	1	US
5315-00-059-0491	2024-10-277	15	Taiwan
MS24665379	2023-12-354	1	United States
5315-00-059-0491	2022-11-313	100	IN
5315-00-059-0491	2022-08-231	2	United States
FFP386	2022-04-96	230	US
MS24665372	2022-03-68	20	Philippines
MS24665-372	2022-01-06	50	IN
MS24665-372	2022-01-06	50	IN
MS24665372	2021-11-309	1	MA
MS24665372	2021-09-271	1	MY
5315-00-059-0491	2021-08-221	5	MY
MS24665372	2020-09-245	100	Hong Kong
MS24665-379	2020-05-147	1000	US
MS24665372	2019-10-290	2	Poland
MS24665372	2019-05-143	6	United States
MS24665-372	2018-10-284	100	RO
5315-00-059-0491	2018-07-206	3	DIBBS
5315-00-059-0491	2018-05-148	3	DIBBS
5315-00-059-0491	2018-02-43	1982	DIBBS
5315-00-059-0491	2017-12-339	5223	DIBBS
5315-00-059-0491	2017-10-296	1562	DIBBS
MS24665379	2017-10-293	34	US
5315-00-059-0491	2017-06-165	1	US
5315-00-059-0491	2017-05-143	200	MANUAL
MS24665-372	2017-05-143	200	TW
5315-00-059-0491	2017-05-130	606	DIBBS
MS24665372	2017-02-41	100	China
MS24665379	2017-01-31	100	US
5315-00-059-0491	2017-01-22	675	DIBBS
MS24665372	2016-09-273	50	United States
5315-00-059-0491	2016-09-262	2079	DIBBS
5315-00-059-0491	2016-08-238	1	United States
MS24665-372	2016-07-211	2300	JP
5315-00-059-0491	2016-07-203	1212	DIBBS
MS24665372	2016-03-77	200	US
MS24665379	2015-05-131	1	United States
5315-00-059-0491	2015-03-76	821	DIBBS
MS24665-372	2015-03-76	100	TH
5315-00-059-0491	2014-12-348	1961	DIBBS
5315-00-059-0491	2014-10-299	1922	DIBBS
5315-00-059-0491	2014-06-180	498	DIBBS
MS24665372	2014-05-141	14	UK
5315-00-059-0491	2014-02-58	1034	DIBBS
MS24665372	2013-11-316	120	China
5315-00-059-0491	2013-08-239	18	US
MS24665-372	2012-11-310	50
MS24665-372	2012-07-191	35	Canada
MS24665-379	2012-07-187	300	KR
MS24665372	2012-05-135	200	Serbia
MS24665379	2011-03-76	17	US
MS24665379	2010-11-334	2	United States
5315-00-059-0491	2010-06-159	2000	DIBBS
5315-00-059-0491	2010-04-107	8	US
5315-00-059-0491	2009-06-175	1	US
MS24665379	2009-06-152	5000	US
5315-00-059-0491	2007-03-78	50	US

Cross Reference | NSN 5315-00-059-0491

Part Number	Cage Code	Manufacturer
010-009-32	01029	METSO AUTOMATION USA, INC
0232FPC14	01029	METSO AUTOMATION USA, INC
0232FPC14	53154	PORTLAND VALVE LLC
111S72	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
111S72	55284	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
122-2557733 PC NO. 37	81898	SUPERVISOR OF SHIPBUILDING CONVERSION AND REPAIR USN
125-02 PC 6	62739	PACIFIC SHIP REPAIR & FABRICATION, INC.
12Z5056-16	94135	NAVAL ORDNANCE STANDARDS
139-002	36513	ATLAS POLAR COMPANY LIMITED DBAHIAB QUEBEC
156816	13002	GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION
156816	17576	GOODRICH CORP DBA GOODRICH CORP
156816	55284	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
591-595	27235	HARDIE-TYNES CO., INC.
59D12	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
59D12	66640	CURTISS-WRIGHT FLIGHT SYSTEMS/SHELBY INC
60-1066 REV A PC NO 595	27235	HARDIE-TYNES CO., INC.
803-5184144 PC 38 PG 2 ZONE 12-D	53711	NAVAL SEA SYSTEMS COMMAND
805-1624071 PC6	80064	NAVAL SHIP SYSTEMS COMMAND
805-1630161 PC2	80064	NAVAL SHIP SYSTEMS COMMAND
AN380C4-5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
EJ-10095	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F420	12603	CLARK EQUIPMENT CO
FFP386	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MR36-10	76005	LORD CORPORATION DBA AEROSPACE DIVISION
MR37-7	76005	LORD CORPORATION DBA AEROSPACE DIVISION
MS24665-371	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24665-372	1S9B2	NEW CASTLE AVIATION INC.
MS24665-372	1WCW6	DRASUM LTD
MS24665-372	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24665-372	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RS40-11	76005	LORD CORPORATION DBA AEROSPACE DIVISION
S18-5387	11976	CHICAGO PNEUMATIC TOOL CO
S18-5387	88807	NEAC COMPRESSOR SERVICE USA INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-059-0491

Compare

Related Products | NSN 5315-00-059-0491

5315-00-059-0494, 5315-00-059-0496, 5315-00-059-0522, 5315-00-059-0523, 5315-00-059-0543

Technical Data | NSN 5315-00-059-0491

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OR STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	55.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 67.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL
STYLE DESIGNATOR	A1 STANDARD

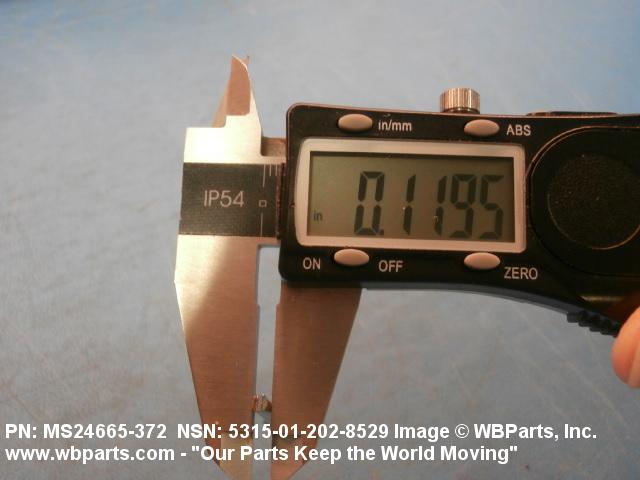

DIAMETER	0.116 INCHES MINIMUM AND 0.120 INCHES MAXIMUM

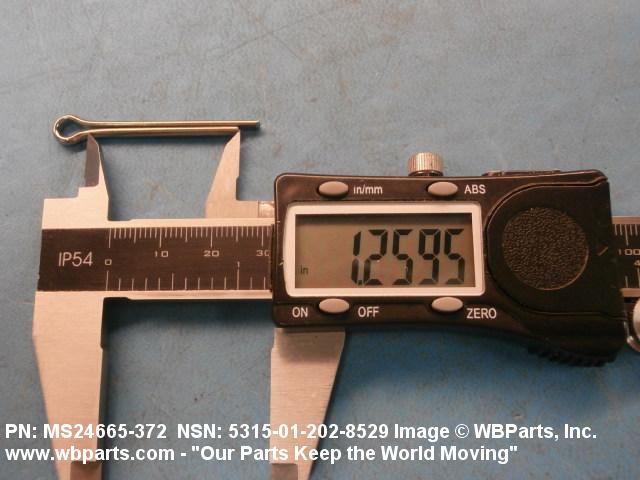

UNDERLOOP LENGTH	1.125 INCHES MINIMUM AND 1.375 INCHES MAXIMUM

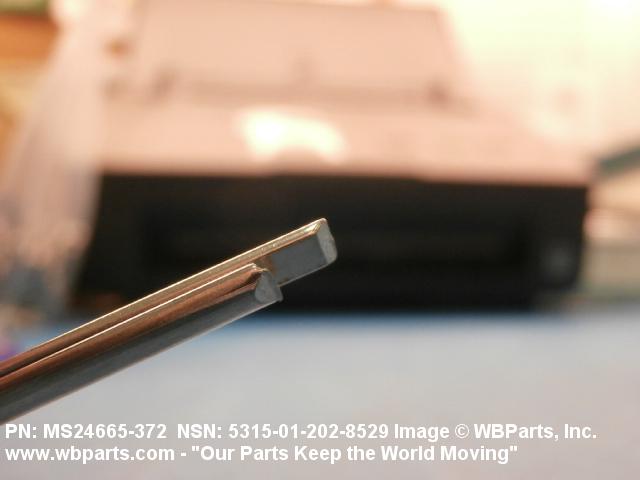

POINT TYPE	EXTENDED PRONG SQUARE CUT

Restrictions/Controls & Freight Information | NSN 5315-00-059-0491

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	094380	COTTER PINS/SPRING COTTERS IRON
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-059-0491

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
