NSN 5315-00-097-8186 145938, 1859X76, 00-097-8186
Product Details | ANCHOR BRAKE SHOE PIN
5315-00-097-8186
Part Alternates: 145938, 1859X76, 5315-00-097-8186, 00-097-8186, 5315000978186, 000978186
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAY 1968 | 00-097-8186 | 77777 ( ) |

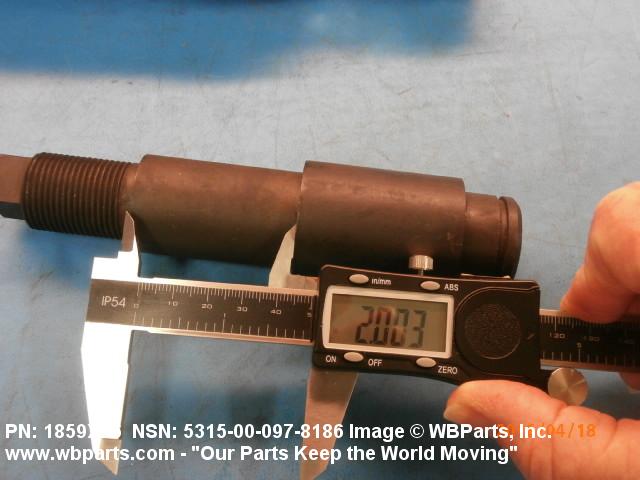

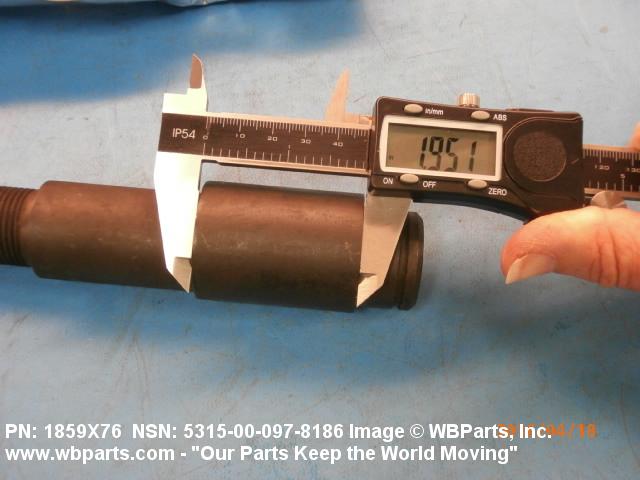

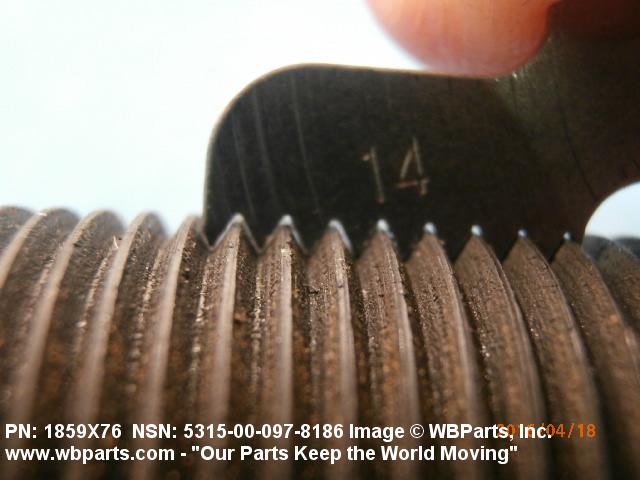

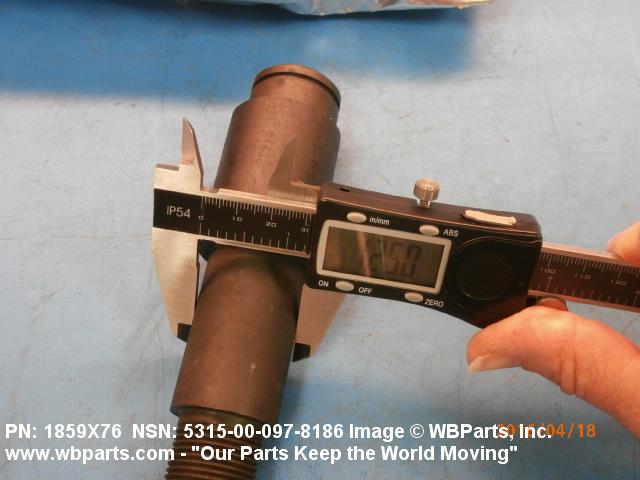

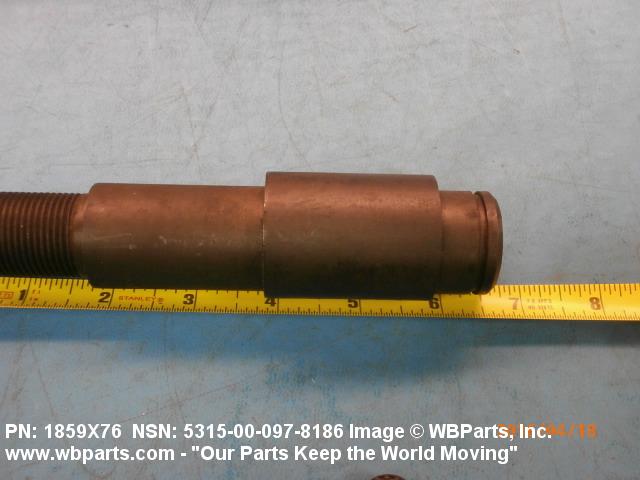

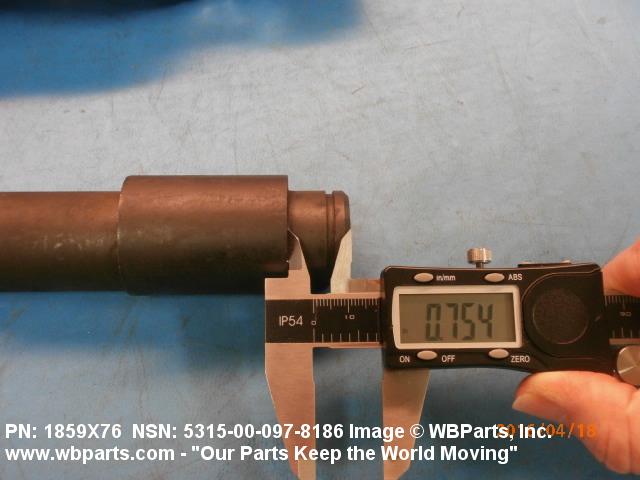

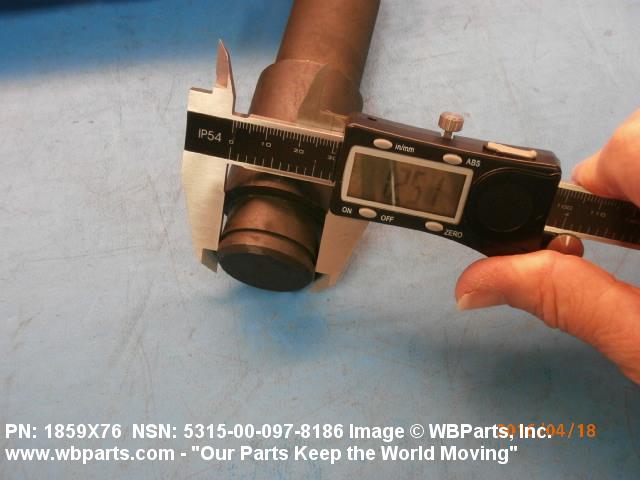

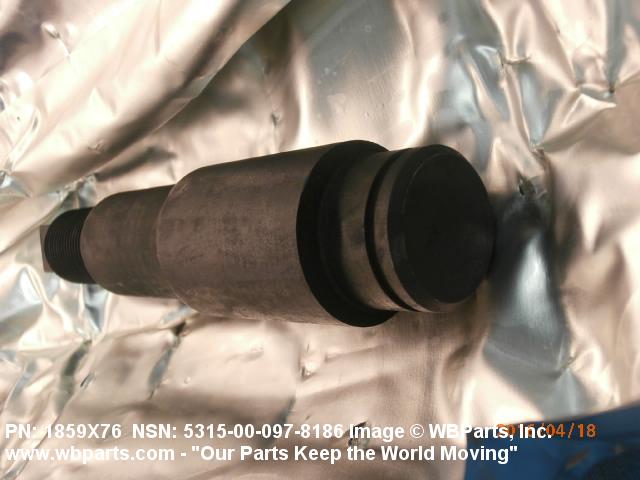

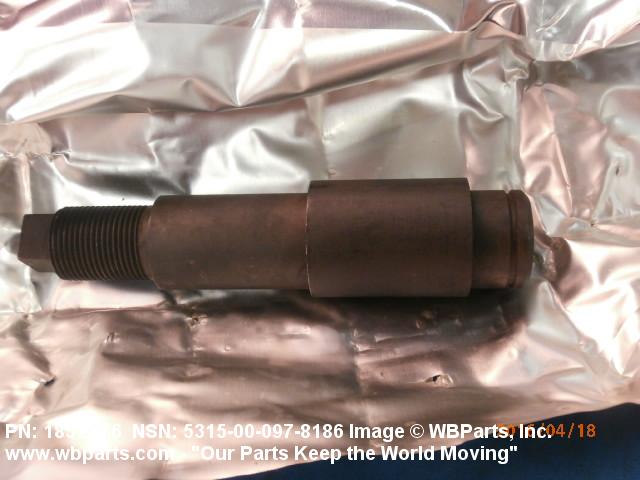

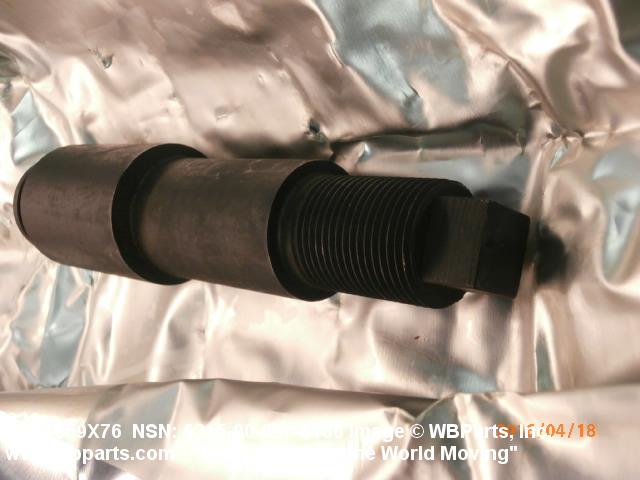

Drawings & Photos | NSN 5315-00-097-8186
Demand History | NSN 5315-00-097-8186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1859X76 | 2016-04-102 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-097-8186
Related Products | NSN 5315-00-097-8186
Technical Data | NSN 5315-00-097-8186
| Characteristic | Specifications |
|---|---|

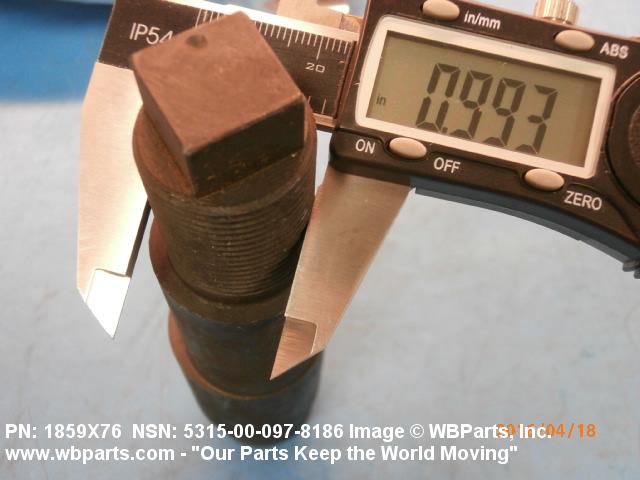

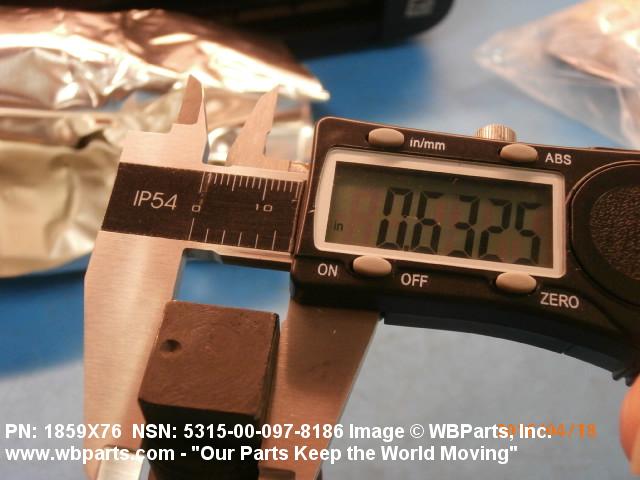

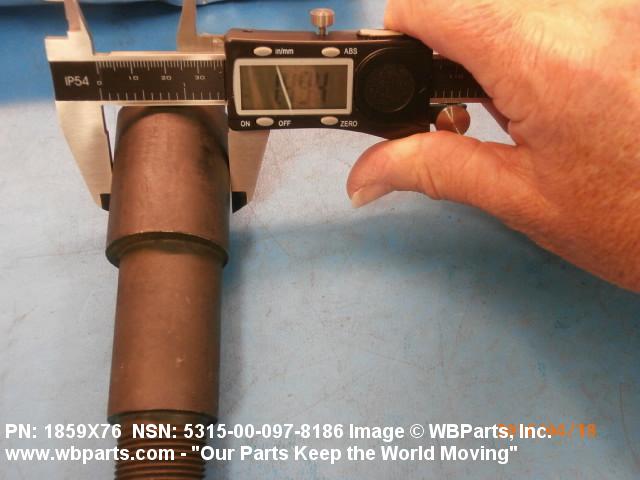

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL; ROCKWELL C SCALE 35-45; 6.500 IN. O/A LG+ BRAKE SHOE END 1 ST STEP 1.250 IN. DIA 0.75 IN. LG INCLUDES LOCK RING GROOVE; 2ND STEP ECCENTRIC 1.490 IN. DIA 1.938 IN. LG; 3RD STEP 1.250 IN. DIA 2.000 IN. LG+ THREADED END 1.000-14 UNS RH 1.250 IN. THD LG,INCLUDES SQUARE WRENCHING FEATURE 0.625 IN. ACROSS FLATS |
| MANUFACTURERS CODE | 3D6E9 |
| DESIGN CONTROL REFERENCE | 1859X76 |
Restrictions/Controls & Freight Information | NSN 5315-00-097-8186
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
