NSN 5315-00-148-5482 SA1013PC1263, SA789C1263, SA998PC1263
Product Details | HOLLOW PIN
5315-00-148-5482 A cylindrically-shaped headless item, having a straight smooth body and a hole through the longitudinal center. Its length must not exceed five times its diameter or 12 inches (304 mm), whichever is greater. Excludes BEARING, SLEEVE; and PIN, PISTON.
Part Alternates: SA1013PC1263, SA789C1263, SA998PC1263, SD1021ITEM21, SD1067PC79, SD1076PC79, SD1085PC79, SD1114PC88, SD1235PC130, SD1237PC130, SD1251PC130, SD1375PC118, SD138PC118, SD965PC80, SD970PC80, 1263, 5315-00-148-5482, 00-148-5482, 5315001485482, 001485482
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-148-5482 | 19979 ( PIN, HOLLOW ) |
Drawings & Photos | NSN 5315-00-148-5482
Demand History | NSN 5315-00-148-5482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1263 | 2011-12-335 | 10 | United States |
Cross Reference | NSN 5315-00-148-5482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1263 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SA1013PC1263 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SA789C1263 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SA998PC1263 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1021ITEM21 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1067PC79 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1076PC79 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1085PC79 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1114PC88 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1235PC130 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1237PC130 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1251PC130 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD1375PC118 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD138PC118 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD965PC80 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
| SD970PC80 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-148-5482
Technical Data | NSN 5315-00-148-5482
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| FIRST END STYLE | 8 SLOTTED |
| FIRST END SLOT DEPTH | 0.156 INCHES NOMINAL |
| FIRST END SLOT WIDTH | 0.125 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

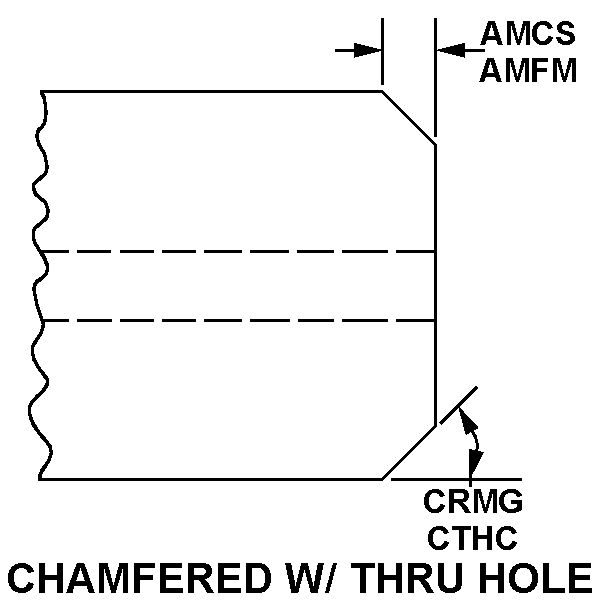

| SECOND END STYLE | 14 CHAMFERED W/THRU HOLE |
| SECOND END TAPER LENGTH | 0.031 INCHES NOMINAL |
| SECOND END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| PIN OVERALL LENGTH | 3.750 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.8750 INCHES NOMINAL |
| INSIDE DIAMETER | 0.563 INCHES NOMINAL |
| SPECIAL FEATURES | DRILL 15/64 ONE WALL 13/52 DEEP ONE END |
Restrictions/Controls & Freight Information | NSN 5315-00-148-5482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-148-5482
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
