NSN 5315-00-187-3228 MS2469230, MS24692-30, A5595014
Product Details | PLAIN TAPERED PIN
5315-00-187-3228 A cone-shaped, unthreaded, metallic or nonmetallic item, tapered through its entire length, primarily used to position and hold two or more mating parts in alignment.
Part Alternates: MS2469230, MS24692-30, A5595014, A5595C14, SMD1982222, SMD198222-2, PNT1046032, PNT104-60-32, F114608, F114-60-8, 025-60-08-20, 0404009, 0404-009, 04049, 0404-9, 3116013000, 311-6013-000, 73002305039, 5315-00-187-3228, 00-187-3228, 5315001873228, 025600820, 001873228
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-187-3228 | 02391 ( PIN, TAPERED, PLAIN ) |

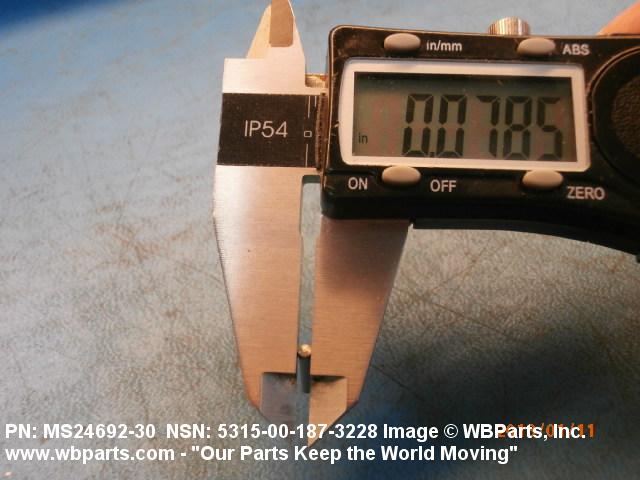

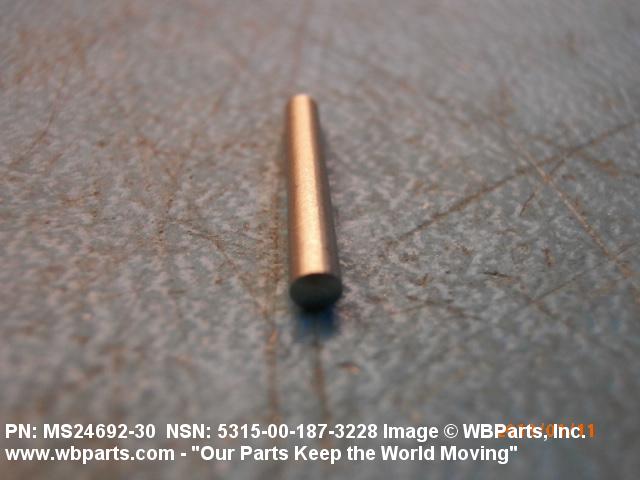

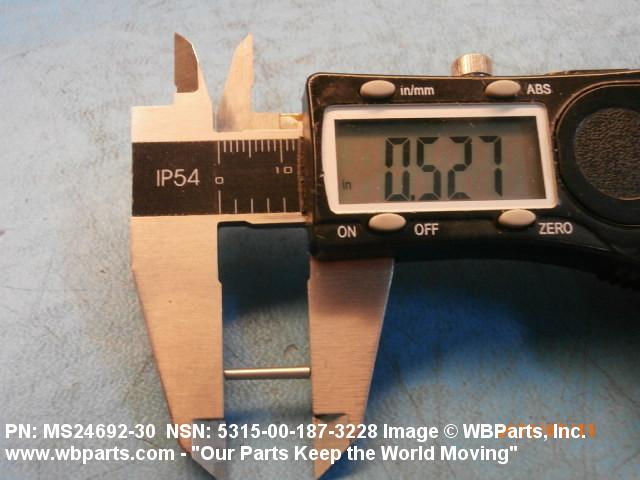

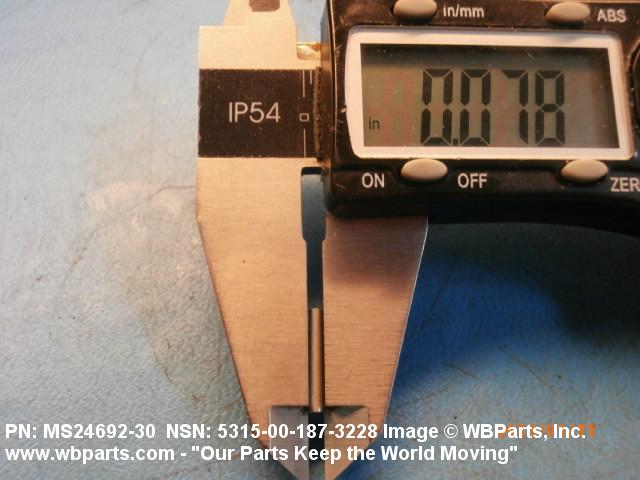

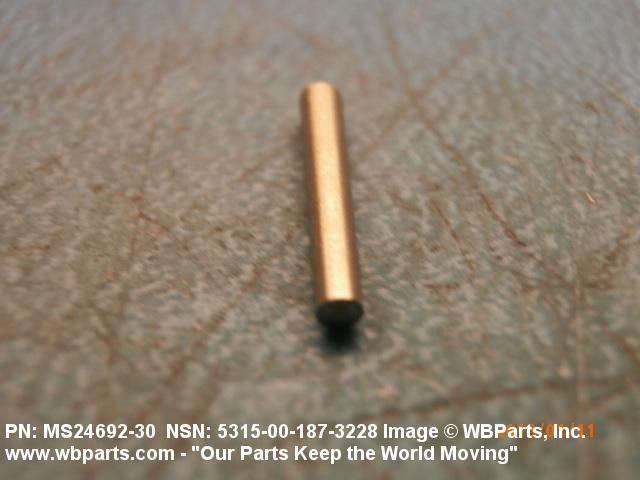

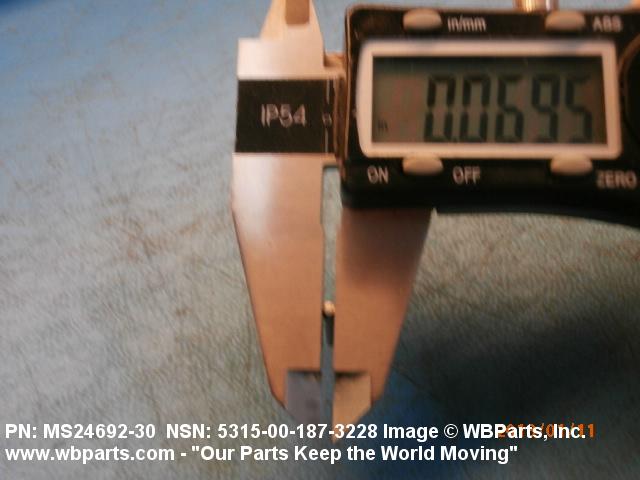

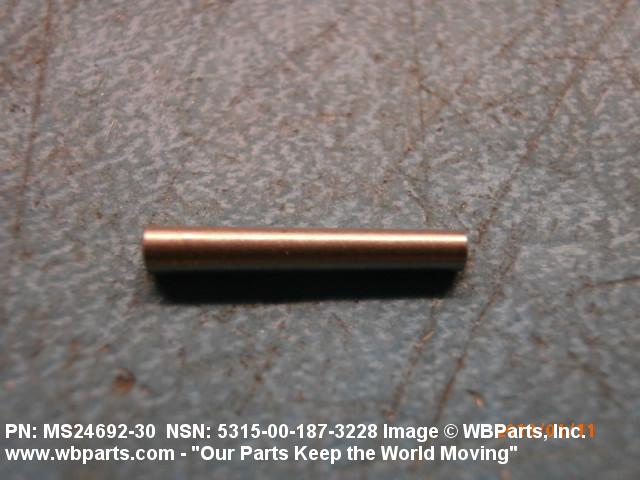

Drawings & Photos | NSN 5315-00-187-3228
Demand History | NSN 5315-00-187-3228
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-187-3228 | 2023-03-88 | 3 | US |
| 5315-00-187-3228 | 2019-10-276 | 50 | EG |
| MS2469230 | 2019-07-193 | 100 | South Korea |
| MS24692-30 | 2019-02-45 | 70 | South Korea |
| MS24692-30 | 2019-01-17 | 70 | South Korea |
| MS24692-30 | 2018-05-135 | 19 | South Korea |
| MS2469230 | 2017-12-349 | 100 | South Korea |
| MS24692-30 | 2017-11-324 | 47 | South Korea |
| MS24692-30 | 2017-01-19 | 120 | South Korea |
| MS2469230 | 2011-06-165 | 5 | United States |
Cross Reference | NSN 5315-00-187-3228
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 025-60-08-20 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| 0404-009 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 0404-9 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 311-6013-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 5315001873228 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 73002305039 | 89944 | KOLLSMAN, INC. |
| A5595014 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| A5595C14 | 06840 | BENDIX CORP THE |
| A5595C14 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| F114-60-8 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| MS24692-30 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24692-30 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PNT104-60-32 | 86360 | GE AVIATION SYSTEMS LLC DBA GE AVIATION DIV INFORMATION |
| SMD198222-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-187-3228
Technical Data | NSN 5315-00-187-3228
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| SURFACE FINISH | 63.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| PIN SIZE DESIGNATION | 6/0 |
Restrictions/Controls & Freight Information | NSN 5315-00-187-3228
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
