NSN 5315-00-220-2554 MS17984C631, SLC6AB31, BLC6B31S
Product Details | QUICK RELEASE PIN
5315-00-220-2554 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984C631, SLC6AB31, BLC6B31S, BLC6B31SM, LG6CB3100, LG6CB31M, 11615514, 5315-00-220-2554, 00-220-2554, 5315002202554, 002202554
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 FEB 1969 | 00-220-2554 | 08323 ( PIN, QUICK RELEASE ) |

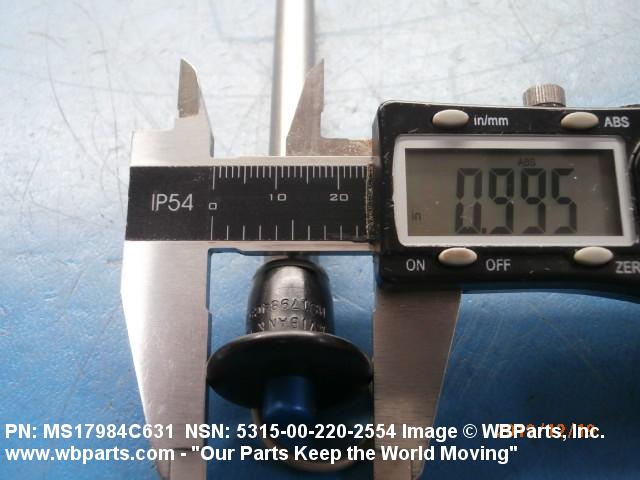

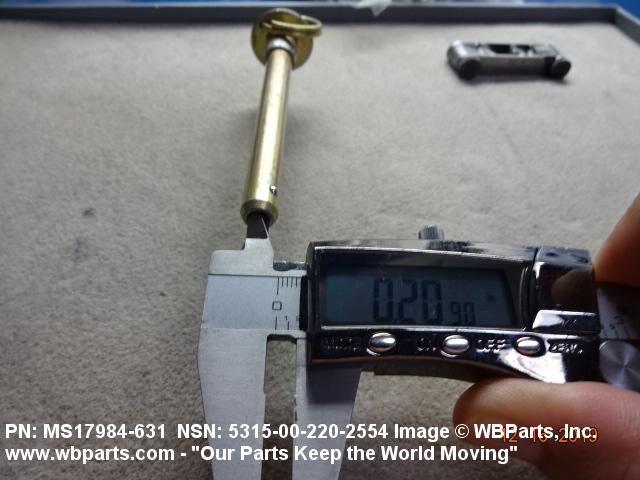

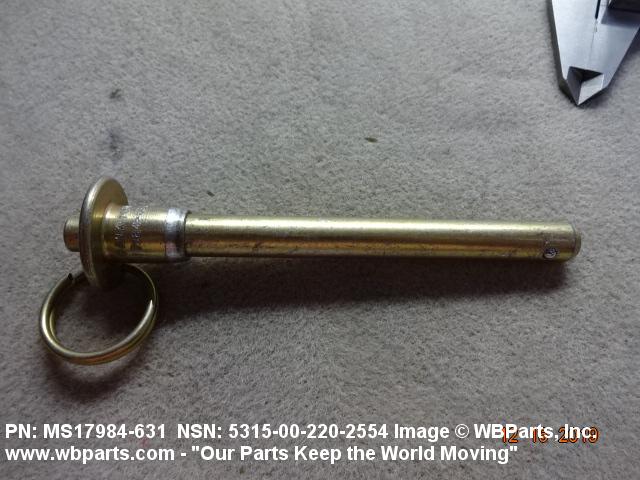

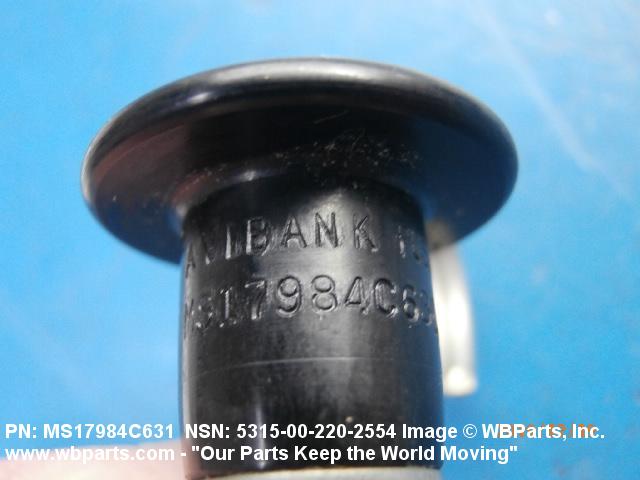

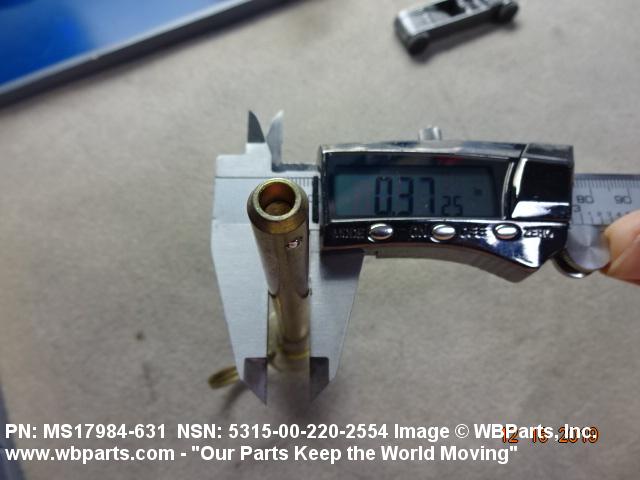

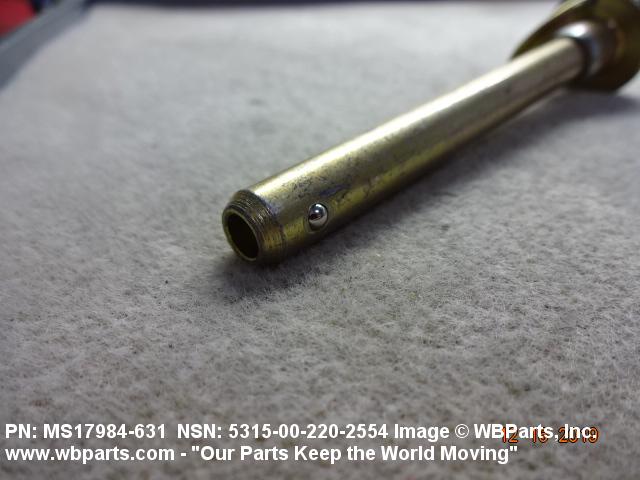

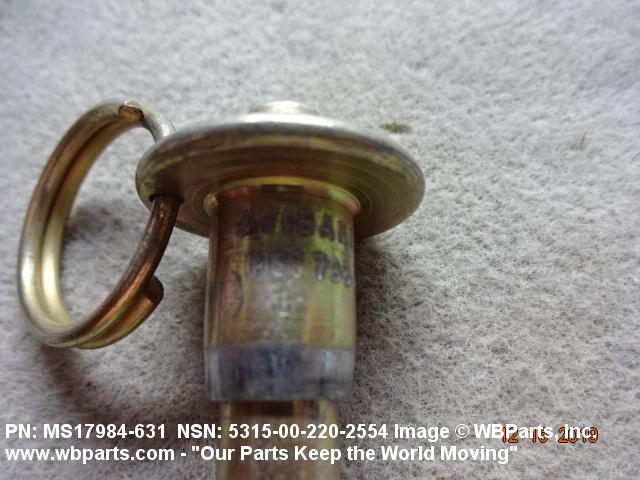

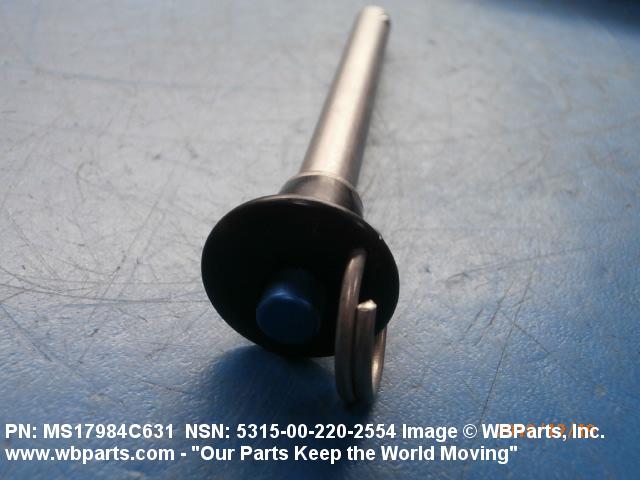

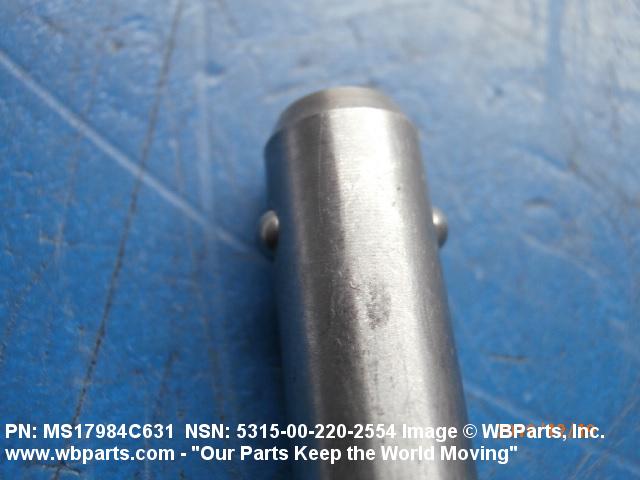

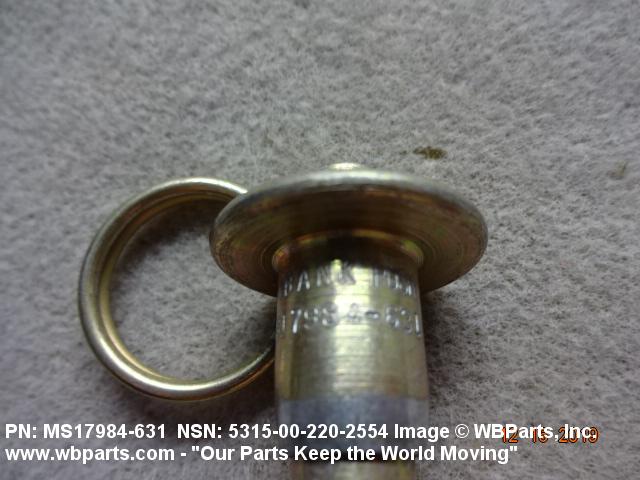

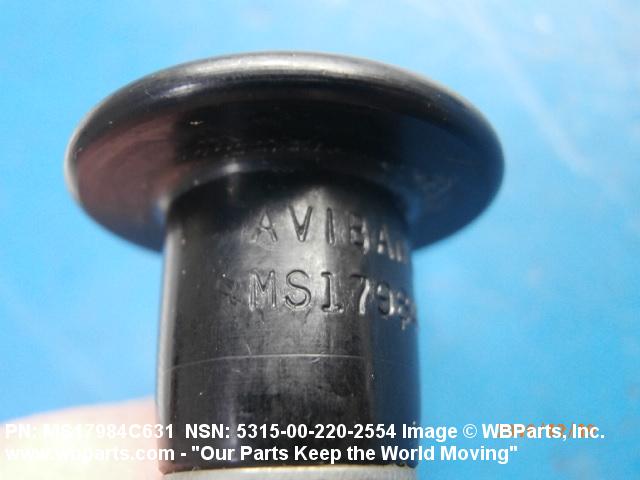

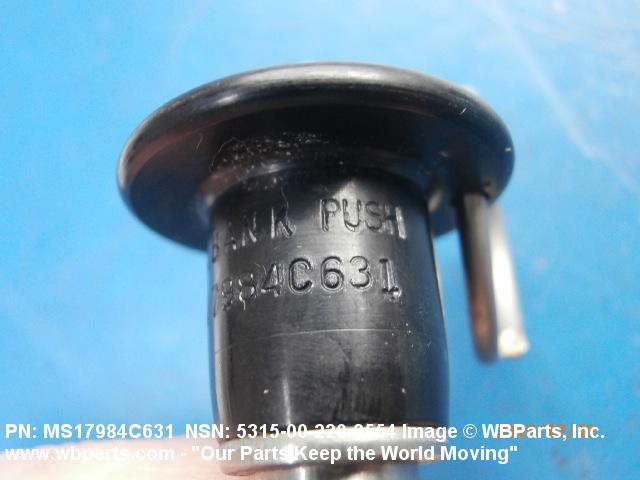

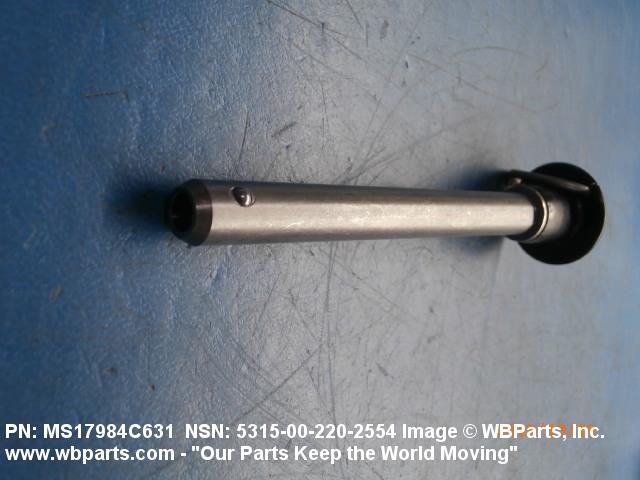

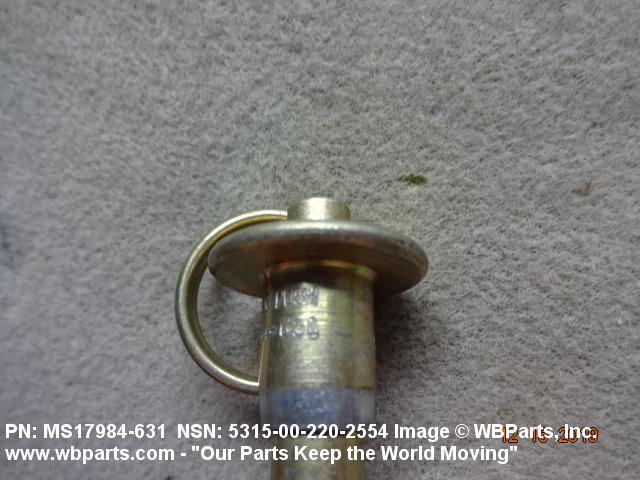

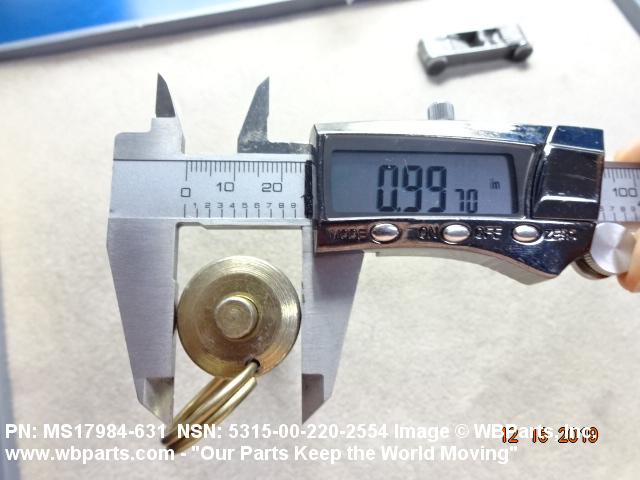

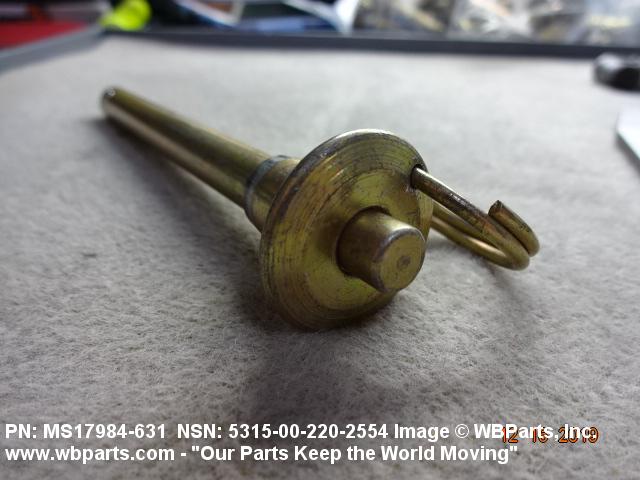

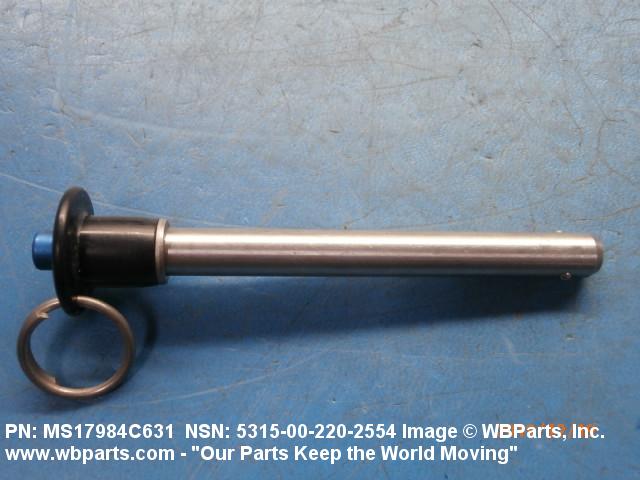

Drawings & Photos | NSN 5315-00-220-2554
Demand History | NSN 5315-00-220-2554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-220-2554 | 2024-07-204 | 10 | US |
| 5315-00-220-2554 | 2020-08-227 | 5 | BE |
| 5315-00-220-2554 | 2019-12-364 | 1 | United States |
| 5315-00-220-2554 | 2019-12-343 | 56 | United States |
| MS17984C631 | 2013-02-50 | 25 | CA |
| 5315-00-220-2554 | 2012-11-332 | 6 | United States |
| 5315-00-220-2554 | 2011-03-87 | 18 | US |
Cross Reference | NSN 5315-00-220-2554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11615514 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| BLC6B31S | 84256 | AVIBANK MFG., INC. |
| BLC6B31SM | 84256 | AVIBANK MFG., INC. |
| BLC6B31SM | R1120 | SATAIR A/S |
| LG6CB3100 | 62060 | SOUTHCO INC. |
| LG6CB3100 | 83014 | HARTWELL CORPORATION |
| LG6CB31M | 62060 | SOUTHCO INC. |
| LG6CB31M | 83014 | HARTWELL CORPORATION |
| MS17984C631 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C631 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17984C631 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| SLC6AB31 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-220-2554
Related Products | NSN 5315-00-220-2554
Technical Data | NSN 5315-00-220-2554
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| SHEAR STRENGTH | 20600 DOUBLE POUND |
| STYLE DESIGNATOR | Q243 BUTTON |

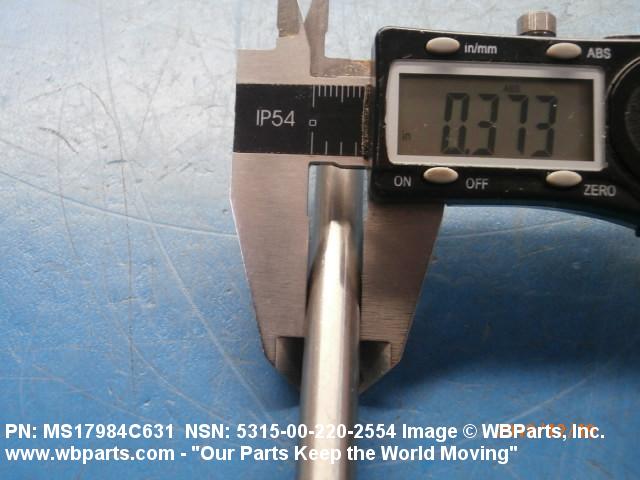

| SHANK DIAMETER | 0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM |
| BUTTON HANDLE DIAMETER | 0.875 INCHES MINIMUM AND 1.135 INCHES MAXIMUM |

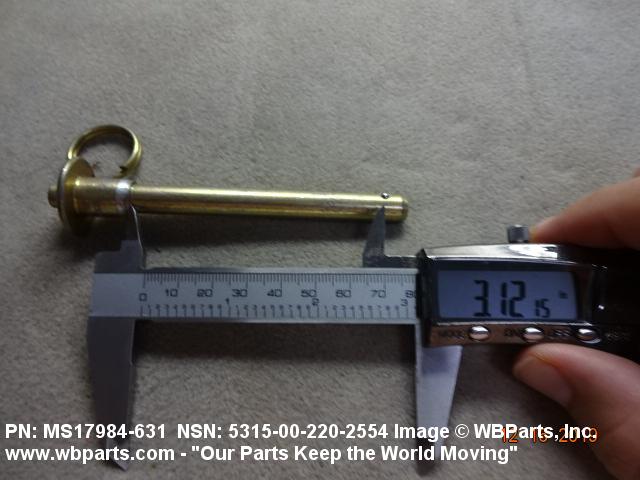

| GRIP LENGTH | 3.100 INCHES MINIMUM AND 3.120 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.040 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.335 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |

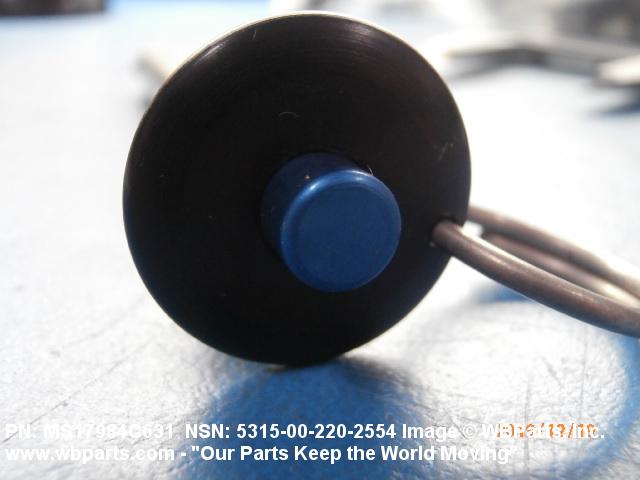

| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | LINK OR RING |
Restrictions/Controls & Freight Information | NSN 5315-00-220-2554
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-220-2554
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
