NSN 5315-00-223-9680 FFN103, 00-223-9680, 002239680
Product Details | NAIL
5315-00-223-9680 A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails.
Part Alternates: FFN103, 5315-00-223-9680, 00-223-9680, 5315002239680, 002239680
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-223-9680 | 29631 ( NAIL ) |
Drawings & Photos | NSN 5315-00-223-9680
Cross Reference | NSN 5315-00-223-9680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFN103 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-223-9680
Technical Data | NSN 5315-00-223-9680
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | COLD FORMED |
| STERILIZED | NO |
| METALLIC HARDNESS RATING | NOT RATED |
| SHANK STYLE | 1 BARBED |
| SHANK DIAMETER | 0.065 INCHES NOMINAL |

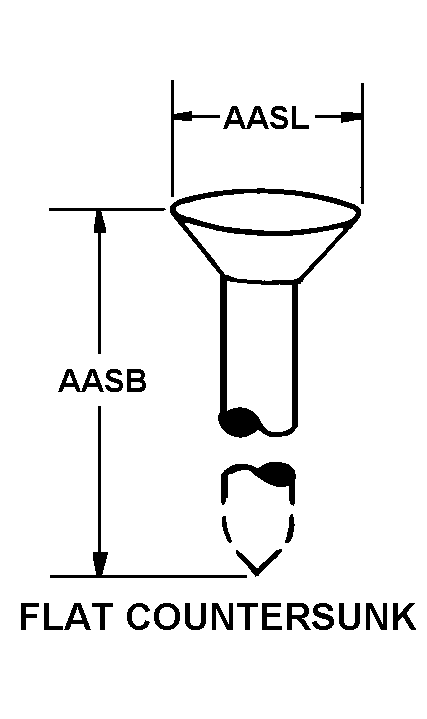

| HEAD STYLE | 16 FLAT COUNTERSUNK |

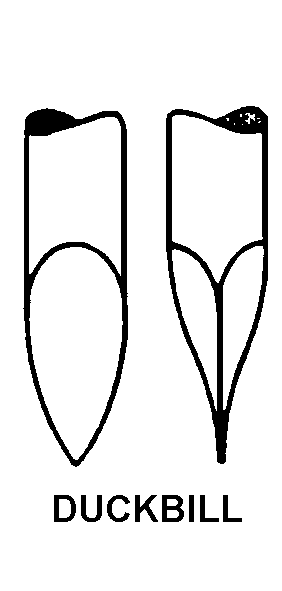

| POINT STYLE | 13 DUCKBILL |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| DECORATIVE HEAD | NO |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 1 STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFN103 |
Restrictions/Controls & Freight Information | NSN 5315-00-223-9680
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
