NSN 5315-00-234-1861 MS24665298, MS24665-298, A10390
Product Details | COTTER PIN
5315-00-234-1861 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: MS24665298, MS24665-298, A10390, AS123788, PINCTR3/32X1/2S , PINCTR332X12S, 10122590 , 12Z505635, 12Z5056-35, 53152341861, 5315-234-1861, 5315PL0248815, 75F4121, 75F6061, 8636071716, 863607-1716, 5315-00-234-1861, 00-234-1861, 5315002341861, 002341861
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-234-1861 | 02381 ( PIN, COTTER ) |

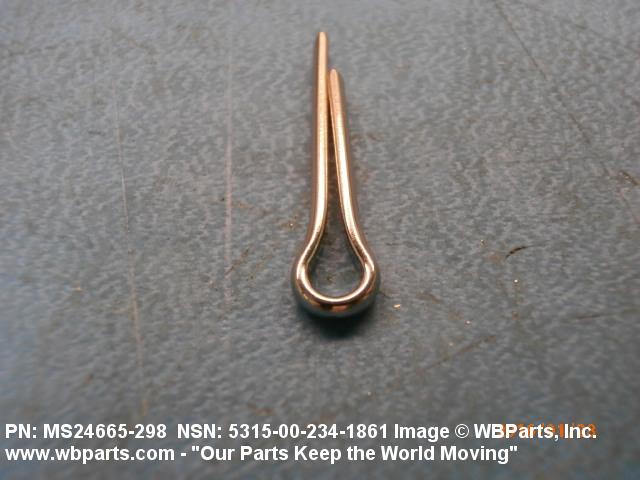

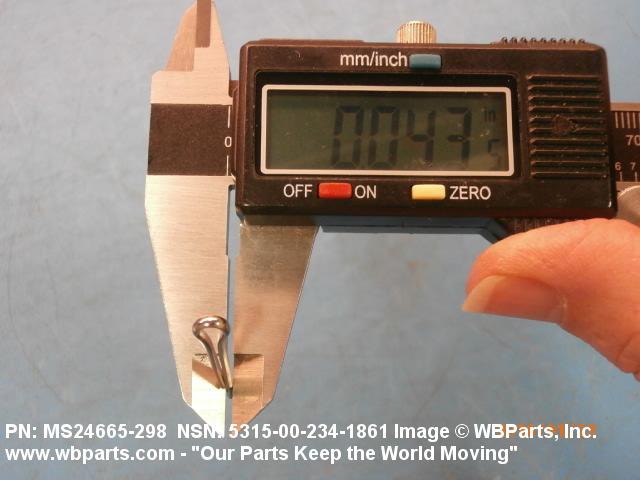

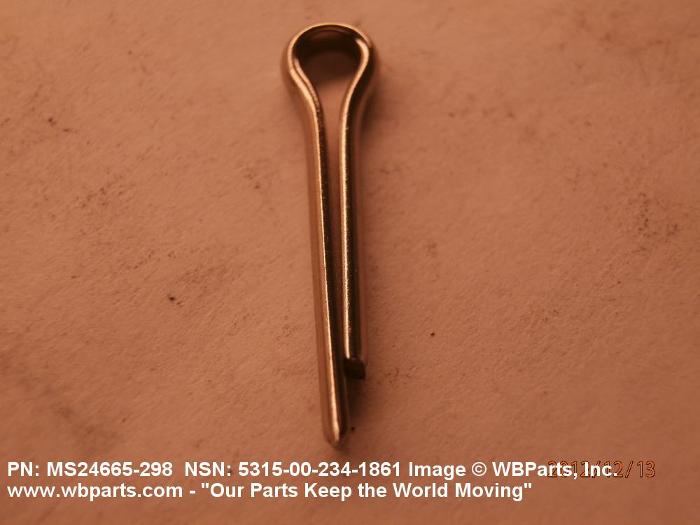

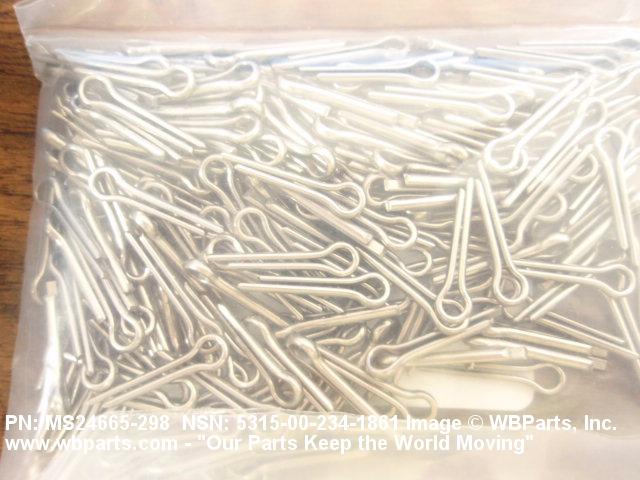

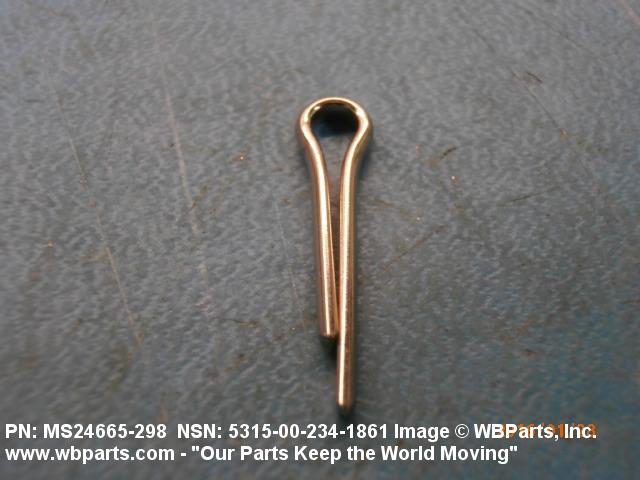

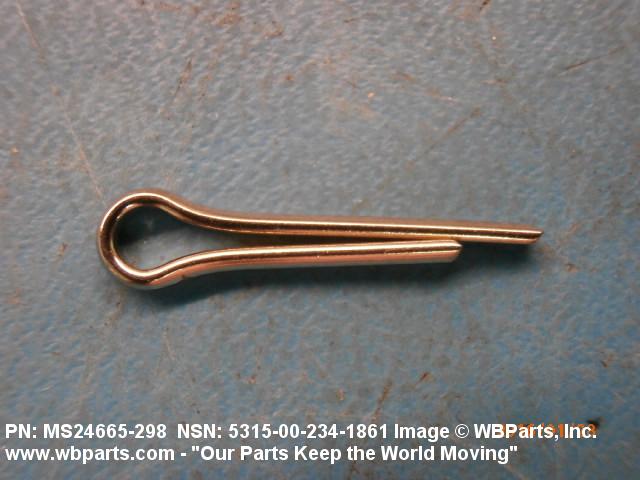

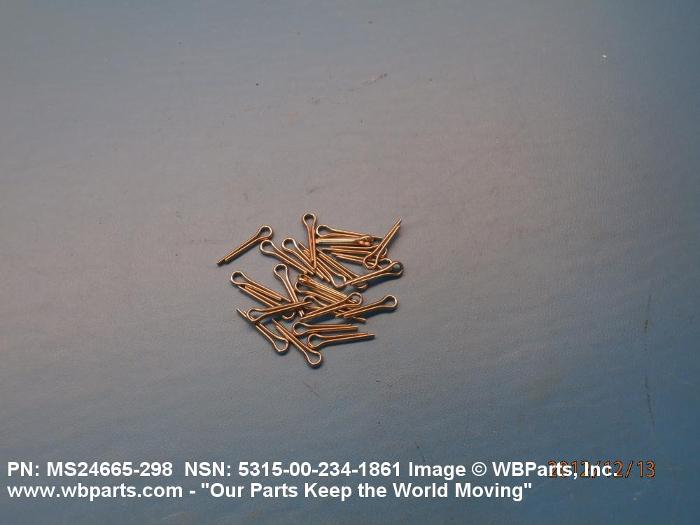

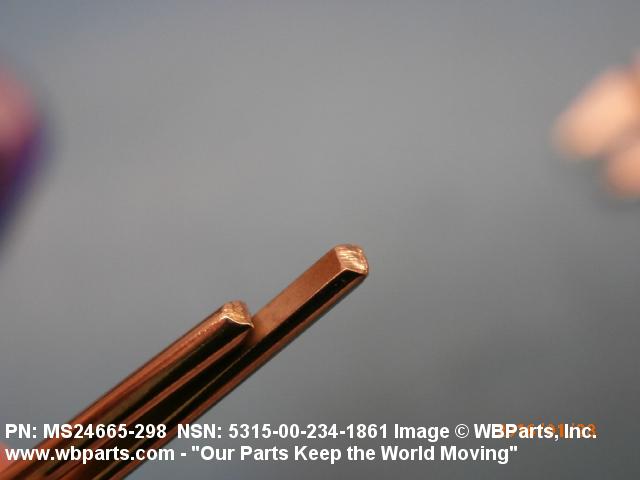

Drawings & Photos | NSN 5315-00-234-1861
Demand History | NSN 5315-00-234-1861
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-234-1861 | 2024-07-201 | 16 | us |
| MS24665298 | 2024-03-80 | 5 | IN |
| MS24665298 | 2024-02-59 | 26 | AE |
| 5315-00-234-1861 | 2024-01-31 | 1 | United States |
| MS24665298 | 2023-12-354 | 1 | United States |
| MS24665298 | 2022-05-136 | 20 | DE |
| MS24665298 | 2020-09-272 | 70 | China |
| MS24665-298 | 2020-05-147 | 1000 | US |
| MS24665298 | 2019-11-329 | 100 | Brazil |
| 5315002341861 | 2018-03-78 | 4 | US |
| MS24665298 | 2017-05-124 | 2 | US |
| 5315-00-234-1861 | 2013-05-136 | 19105 | DIBBS |
| 5315-00-234-1861 | 2012-11-332 | 25 | United States |
| 5315-00-234-1861 | 2012-11-332 | 25 | United States |
| MS24665298 | 2012-08-227 | 20 | US |
| MS24665298 | 2012-07-192 | 100 | CN |
| MS24665298 | 2010-08-230 | 5 | United States |
| MS24665298 | 2010-08-223 | 5 | United States |
| 5315-00-234-1861 | 2009-10-292 | 11763 | DIBBS |
Cross Reference | NSN 5315-00-234-1861
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z5056-35 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 12Z5056-35 | 94135 | NAVAL ORDNANCE STANDARDS |
| 5315-234-1861 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5315002341861 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5315PL0248815 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 863607-1716 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| A10390 | U4574 | MANROY ENGINEERING LTD |
| AS123788 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24665-298 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-298 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PINCTR3/32X1/2S | 0AJL2 | REMOTEC, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-234-1861
Technical Data | NSN 5315-00-234-1861
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM E30 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 60.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 70.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | A1 STANDARD |
| DIAMETER | 0.086 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| UNDERLOOP LENGTH | 0.438 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| POINT TYPE | EXTENDED PRONG SQUARE CUT |
| MANUFACTURERS CODE | 94135 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 12Z5056-35 |
Restrictions/Controls & Freight Information | NSN 5315-00-234-1861
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
