NSN 5315-00-236-8362 MS24665376, MS24665-376, MS34665376
Product Details | COTTER PIN

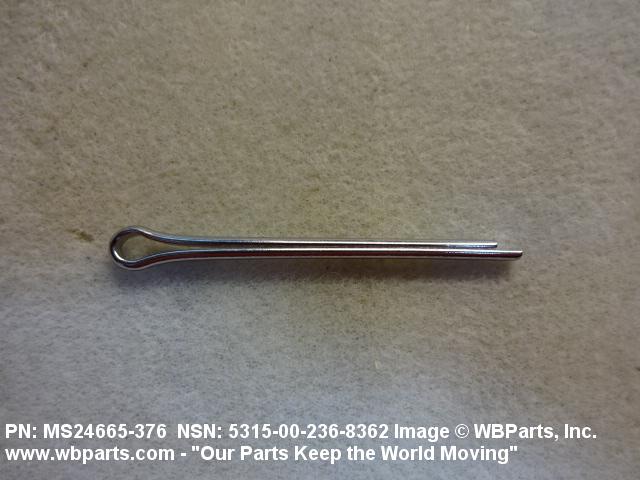

5315-00-236-8362 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: MS24665376, MS24665-376, MS34665376, MS34665-376, AN380C47, AN380C4-7, AN381428, AN381-4-28, ANSI B.18.8.1.1, ANSIB18811, FFP386, 00881-0008, 122-5277656 ITEM 33, 1225277656ITEM33, 122-5277664 ITEM 55, 1225277664ITEM55, 122-5277665 ITEM 55, 1225277665ITEM55, 122-5277698 ITEM 15, 1225277698ITEM15, 167-7379128 ITEM 8, 1677379128ITEM8, 36337N7, 67944, 805-1630164 PC8, 8051630164PC8, 881008, 881-008, 92-AV101-N-SYM- 80, 92AV101NSYM80, 5315-00-236-8362, 00-236-8362, 5315002368362, 008810008, 002368362
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-236-8362 | 02381 ( PIN, COTTER ) |
Drawings & Photos | NSN 5315-00-236-8362
Demand History | NSN 5315-00-236-8362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24665376 | 2025-04-101 | 8 | United States |
| FFP386 | 2022-04-96 | 230 | US |
| MS24665376 | 2022-01-20 | 100 | us |
| 5315-00-236-8362 | 2021-09-272 | 2 | US |
| 5315-00-236-8362 | 2021-06-154 | 500 | MANUAL |
| MS24665376 | 2020-01-03 | 50 | United States |
| 5315-00-236-8362 | 2018-11-309 | 380 | United States |
| 5315-00-236-8362 | 2018-08-232 | 384 | DIBBS |
| 5315-00-236-8362 | 2018-07-182 | 906 | DIBBS |
| 5315-00-236-8362 | 2018-06-162 | 1400 | DIBBS |
| 5315-00-236-8362 | 2018-06-154 | 812 | DIBBS |
| 5315-00-236-8362 | 2018-05-134 | 279 | DIBBS |
| 5315-00-236-8362 | 2018-03-87 | 1500 | Portugal |
| MS24665376 | 2017-09-244 | 200 | us |
| MS24665376 | 2017-05-128 | 100 | SG |
| MS24665376 | 2017-03-83 | 40 | India |
| 5315-00-236-8362 | 2017-02-53 | 15 | MANUAL |
| MS24665376 | 2015-10-279 | 2 | us |
| 5315-00-236-8362 | 2015-08-243 | 1 | MANUAL |
| MS24665-376 | 2015-08-243 | 1 | US |
| MS24665376 | 2015-01-28 | 5 | United States |
| MS24665376 | 2013-10-291 | 24 | ES |
| MS24665-376 | 2012-11-310 | 50 | |
| MS24665376 | 2012-03-67 | 30 | United States |
| 5315-00-236-8362 | 2011-01-11 | 100 | TR |
| 5315-00-236-8362 | 2010-08-231 | 4 | US |
| 5315-00-236-8362 | 2009-06-173 | 3123 | DIBBS |
| 5315-00-236-8362 | 2009-03-61 | 710 | DIBBS |
| 5315-00-236-8362 | 2009-01-05 | 599 | DIBBS |
| 5315-00-236-8362 | 2008-07-190 | 6 | US |
| MS24665376 | 2008-05-127 | 700 | United States |
| MS24665376 | 2008-04-108 | 700 | United States |
| MS24665376 | 2006-10-290 | 25 | US |
Cross Reference | NSN 5315-00-236-8362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00881-0008 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 122-5277656 ITEM 33 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 122-5277664 ITEM 55 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 122-5277665 ITEM 55 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 122-5277698 ITEM 15 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 167-7379128 ITEM 8 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 36337N7 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 67944 | 06840 | BENDIX CORP THE |
| 67944 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| 67944 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 805-1630164 PC8 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 881-008 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 92-AV101-N-SYM- 80 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN380C4-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN381-4-28 | 01413 | AIR LOGISTICS CORPORATION DBA FIELD APPLIED COMPOSITE SYSTEMS |
| AN381-4-28 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| ANSI B.18.8.1.1 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| FFP386 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24665-376 | 1WCW6 | DRASUM LTD |
| MS24665-376 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-376 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS34665-376 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-236-8362
Technical Data | NSN 5315-00-236-8362
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 55.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 67.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | A1 STANDARD |

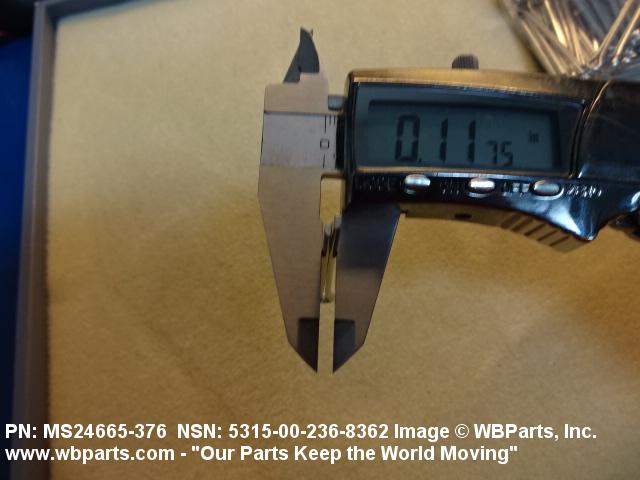

| DIAMETER | 0.116 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |

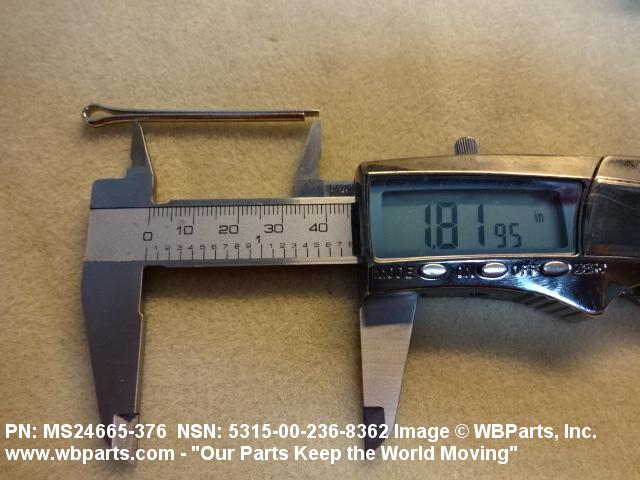

| UNDERLOOP LENGTH | 1.690 INCHES MINIMUM AND 1.810 INCHES MAXIMUM |
| POINT TYPE | EXTENDED PRONG MITRE END |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY POINT STYLE AND PACKING DATA |
Restrictions/Controls & Freight Information | NSN 5315-00-236-8362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
