NSN 5315-00-241-7330 MS24665303, MS24665-303, MS24665304

Product Details | COTTER PIN

5315-00-241-7330 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.

Part Alternates: MS24665303, MS24665-303, MS24665304, MS24665-304, AN381320, AN381-3-20, B1937, SP90E9, 10122602 , 12Z48PC426, 28P20343, 2931014P19, 293-1014P19, 40760233, 722009455700 , 5315-00-241-7330, 00-241-7330, 5315002417330, 002417330

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-241-7330	02381 ( PIN, COTTER )

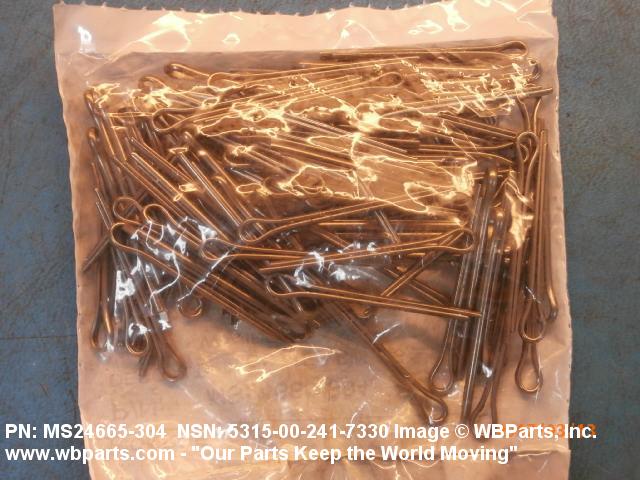

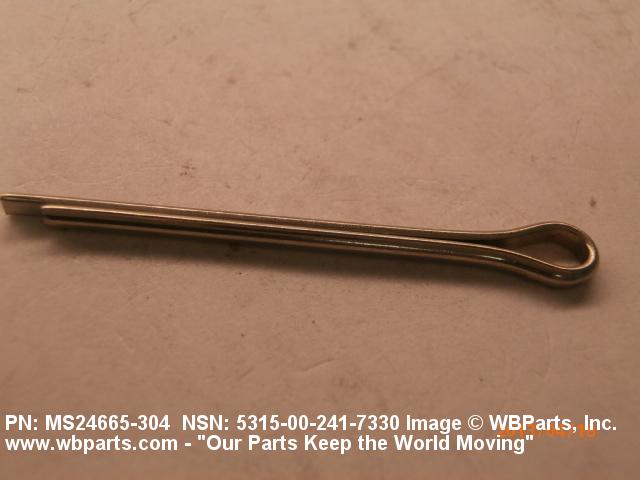

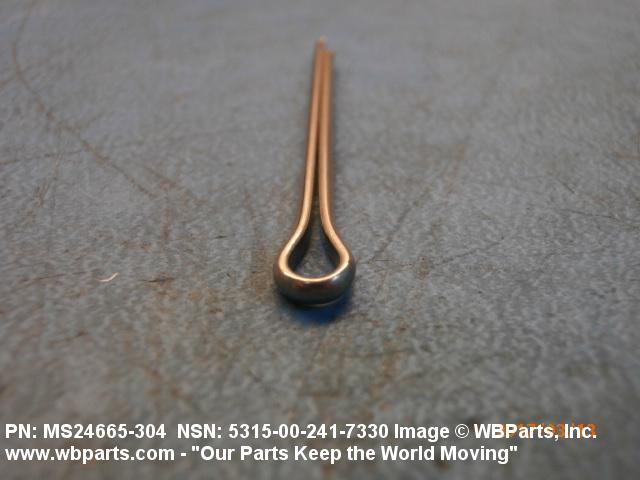

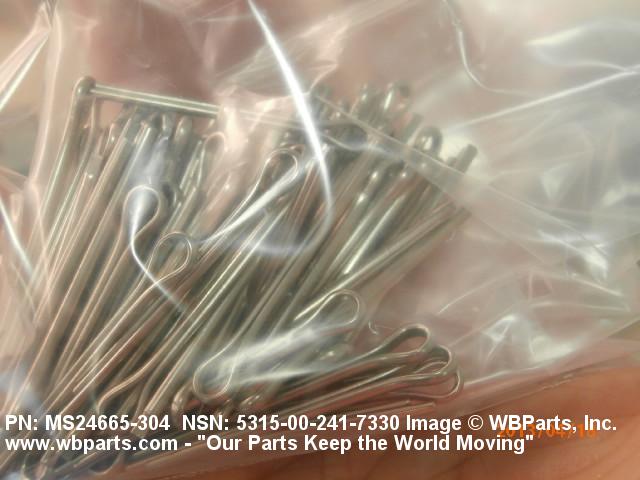

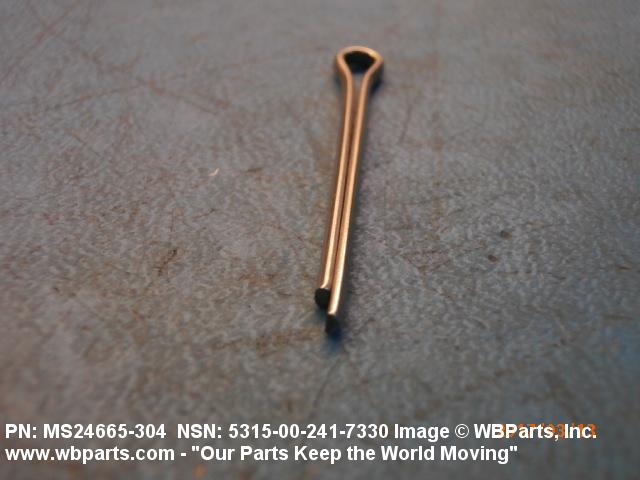

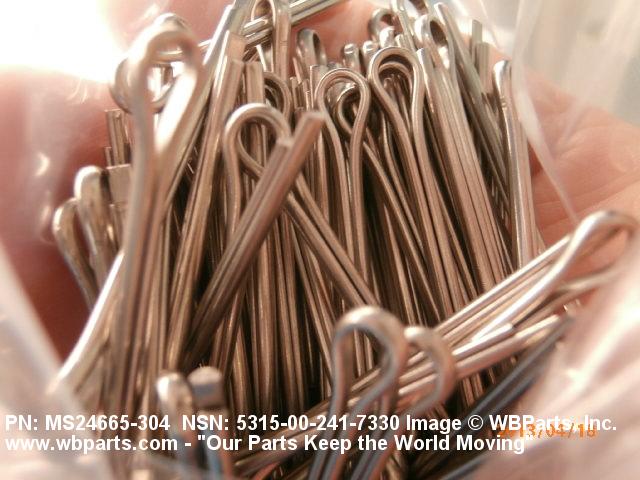

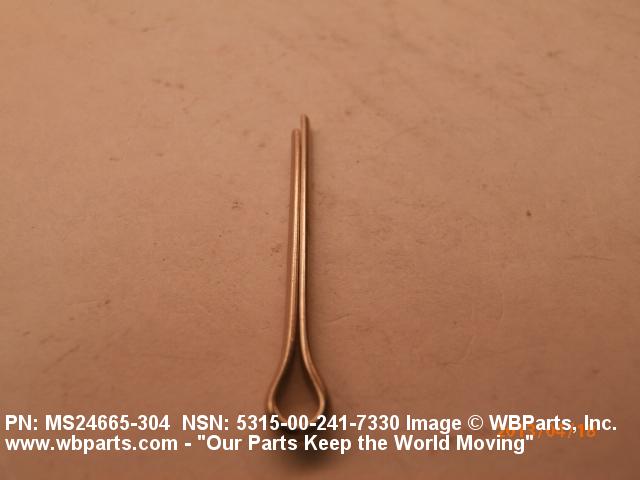

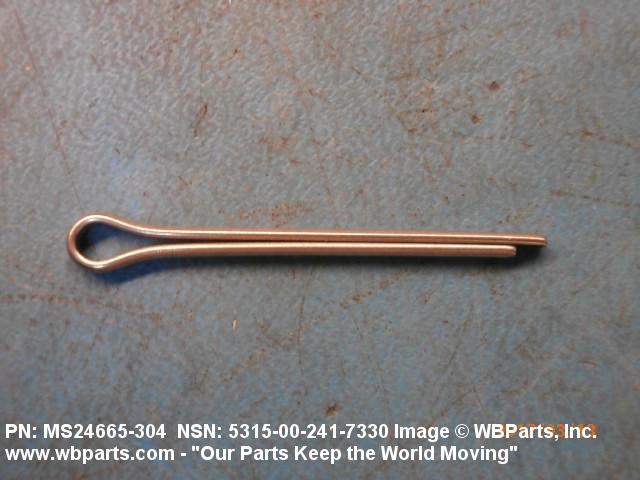

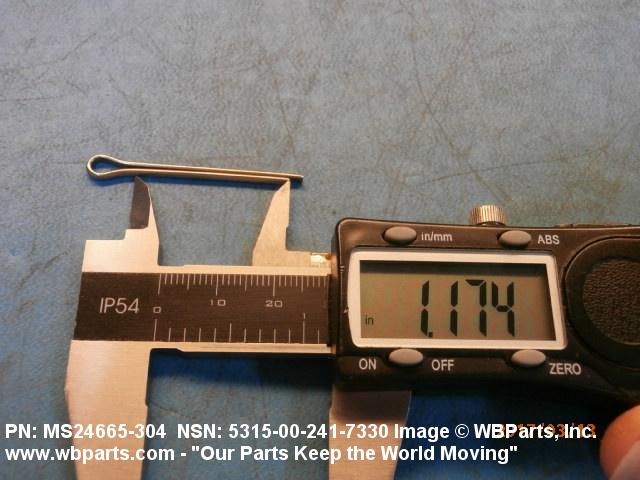

Drawings & Photos | NSN 5315-00-241-7330

Part Number	Request Date	QTY	Origin
5315-00-241-7330	2025-10-277	2	SA
MS24665304	2025-08-238	200	Croatia
MS24665304	2024-12-351	6	Japan
12Z48PC426	2024-06-172	2	United States
MS24665304	2024-02-51	100	Croatia
MS24665303	2023-10-283	100	us
MS24665304	2023-04-117	12	us
MS24665304	2023-01-27	100	NP
5315-00-241-7330	2022-11-313	150	IN
5315-00-241-7330	2022-11-313	500	IN
5315-00-241-7330	2022-09-250	120	CN
MS24665304	2022-08-235	4	United States
MS24665304	2022-06-173	6	US
MS24665304	2022-02-45	300	Philippines
MS24665304	2021-10-300	500	United States
5315-00-241-7330	2021-09-272	2	US
MS24665304	2021-09-271	2	MY
MS24665304	2021-09-254	2	MY
MS24665304	2021-08-235	1000	SG
5315-00-241-7330	2021-06-154	1000	MANUAL
MS24665-304	2020-05-136	30	Poland
MS24665304	2020-02-50	160	us
5315-00-241-7330	2019-09-267	100	United States
MS24665304	2019-09-247	200	IT
MS24665304	2019-06-176	10	US
MS24665304	2019-04-120	10	Philippines
5315-00-241-7330	2019-02-33	2000	India
5315-00-241-7330	2019-01-10	1802	DIBBS
MS24665-304	2018-10-284	200	RO
MS24665304	2018-09-255	25	United States
MS24665304	2018-06-170	3	US
MS24665304	2018-06-170	4	US
5315-00-241-7330	2018-06-158	2489	DIBBS
5315-00-241-7330	2018-03-87	600	Portugal
5315-00-241-7330	2018-02-43	7512	DIBBS
5315-00-241-7330	2017-06-164	200	US
MS24665304	2017-04-95	1	India
5315-00-241-7330	2017-03-64	1	United States
5315-00-241-7330	2016-08-215	2991	DIBBS
5315-00-241-7330	2016-05-129	2240	DIBBS
MS24665304	2015-11-313	1	us
MS24665304	2015-09-260	2	United States
MS24665304	2015-04-97	12	US
MS24665304	2014-08-225	1	Thailand
MS24665304	2014-08-217	100	United States
MS24665304	2014-05-126	4	US
5315-00-241-7330	2014-02-59	100	MANUAL
MS24665-304	2014-02-59	100	TR
5315-00-241-7330	2014-02-37	2	CL
MS24665304	2013-08-217	50	United States
5315-00-241-7330	2013-07-183	1	US
MS24665-304	2013-05-134	1	CZ
MS24665304	2013-04-106	25	United States
MS24665-304	2012-11-310	76
MS24665-304	2012-07-191	720	Canada
MS24665-304	2012-07-187	6000	KR
MS24665-304	2012-07-187	720	Canada
MS24665304	2012-05-135	200	Serbia
5315-00-241-7330	2011-05-123	7879	DIBBS
MS24665304	2010-07-189	72	US
5315-00-241-7330	2010-04-102	3367	DIBBS
5315-00-241-7330	2010-03-71	6000	US
5315-00-241-7330	2009-01-12	2307	DIBBS
5315-00-241-7330	2009-01-05	5000	DIBBS
5315-00-241-7330	2008-09-246	100	United States
5315-00-241-7330	2008-07-204	7382	DIBBS
5315-00-241-7330	2008-02-54	400	Thailand

Cross Reference | NSN 5315-00-241-7330

Part Number	Cage Code	Manufacturer
12Z48PC426	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
28P20343	U1725	MINISTRY OF DEFENCE AIR DOMESTIC R FERENCE NUMBER USE ONLY
293-1014P19	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
293-1014P19	49956	RAYTHEON COMPANY DBA RAYTHEON
40760233	K0359	WARTSILA WATER SYSTEMS LIMITED
5315002417330	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
722009455700	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
AN381-3-20	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
B1937	K3456	CLARK MASTS TEKSAM LTD
MS24665-303	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24665-304	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24665-304	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SP90E9	K7766	BRITISH STANDARDS INSTITUTION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-241-7330

Compare

Related Products | NSN 5315-00-241-7330

5315-00-241-7331, 5315-00-241-7332, 5315-00-241-7340, 5315-00-241-7353, 5315-00-241-7356

Technical Data | NSN 5315-00-241-7330

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OR STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	60.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 70.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL
STYLE DESIGNATOR	A1 STANDARD

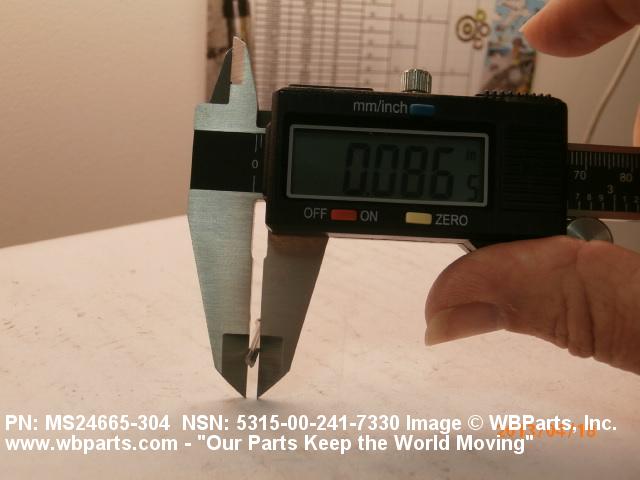

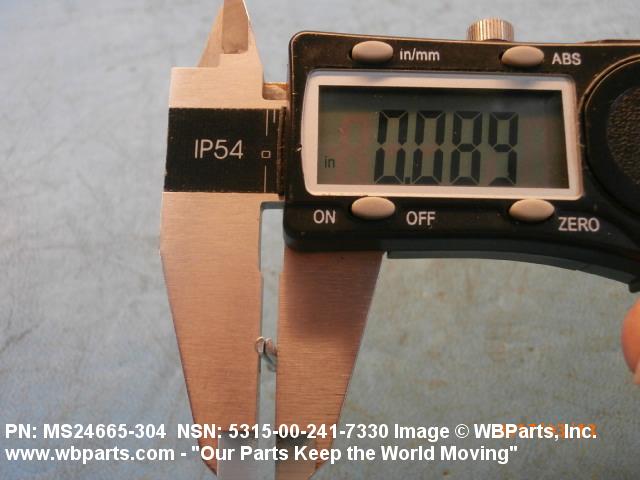

DIAMETER	0.086 INCHES MINIMUM AND 0.090 INCHES MAXIMUM

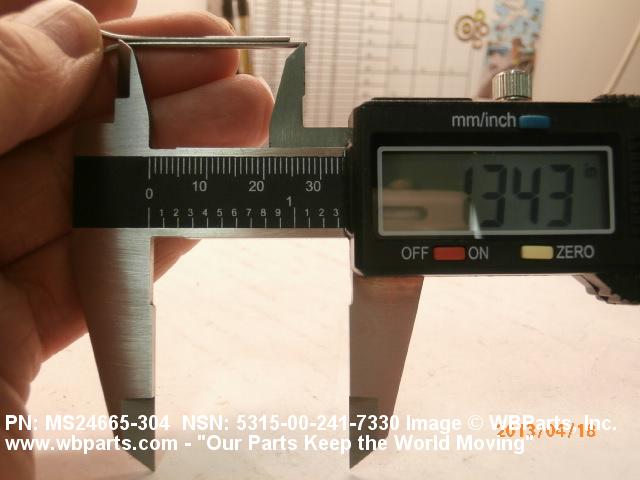

UNDERLOOP LENGTH	1.125 INCHES MINIMUM AND 1.375 INCHES MAXIMUM
POINT TYPE	EXTENDED PRONG SQUARE CUT
MANUFACTURERS CODE	88044
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN381-3-20

Restrictions/Controls & Freight Information | NSN 5315-00-241-7330

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	094380	COTTER PINS/SPRING COTTERS IRON
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-241-7330

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
