NSN 5315-00-258-0391 NAS1334A2S20, 00-258-0391, 002580391
Product Details | QUICK RELEASE PIN

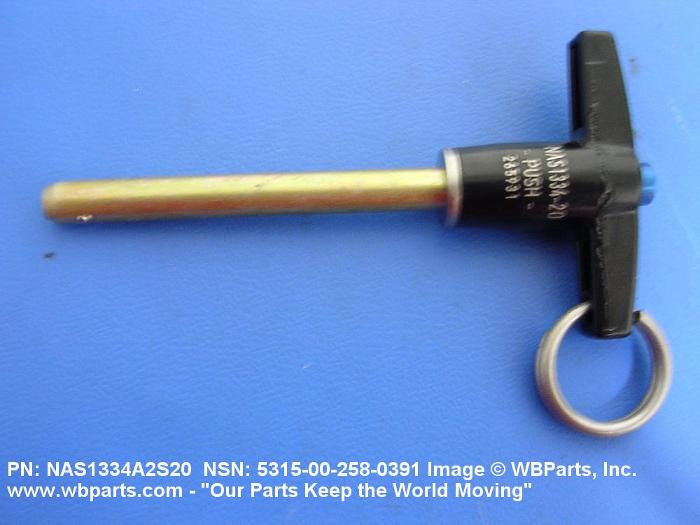

5315-00-258-0391 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1334A2S20, 5315-00-258-0391, 00-258-0391, 5315002580391, 002580391
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1973 | 00-258-0391 | 08323 ( PIN, QUICK RELEASE ) |

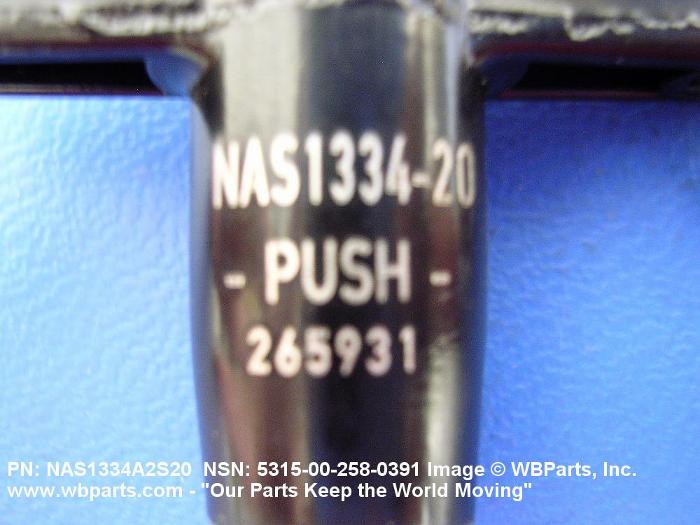

Drawings & Photos | NSN 5315-00-258-0391
Demand History | NSN 5315-00-258-0391
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1334A2S20 | 2008-06-168 | 12 | United States |
| 5315-00-258-0391 | 2008-01-24 | 12 | United States |
Cross Reference | NSN 5315-00-258-0391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1334A2S20 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-258-0391
Related Products | NSN 5315-00-258-0391
Technical Data | NSN 5315-00-258-0391
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 7075 OR ALUMINUM ALLOY 2017 OR ALUMINUM ALLOY HEAD STEEL COMP 4130 OR STEEL COMP 4135 SHANK STEEL COMP 440C DETENT STEEL COMP 4130 SPINDLE STEEL SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268,T4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-282,T6 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-351,T4 FED SPEC 3RD MATERIAL RESPONSE OR QQ-A-591 FED SPEC 4TH MATERIAL RESPONSE HEAD MIL-T-6736 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-6735 MIL SPEC 2ND MATERIAL RESPONSE SHANK QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE DETENT MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE SPRING |
| SURFACE TREATMENT | ANODIZE HEAD CADMIUM SHANK PASSIVATE DETENT CADMIUM SPINDLE CADMIUM SPRING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE SPRING |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 54.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM DETENT |
| SHEAR STRENGTH | 8200 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | Q241 T HANDLE |
| HANDLE LENGTH | 1.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| SHANK DIAMETER | 0.2470 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| GRIP LENGTH | 2.000 INCHES MINIMUM AND 2.020 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.550 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.380 INCHES NOMINAL |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | ANY ACCEPTABLE |
| PIN ATTACHMENT TYPE | HOOK OR RING |
| SPECIAL FEATURES | STEEL ATTACHING RING OR HOOK,SURFACE TREATMENT CADMIUM |
Restrictions/Controls & Freight Information | NSN 5315-00-258-0391
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZF | France ZG ZH |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
