NSN 5315-00-276-4099 P16760, 2150173, 6RE0346
Product Details | HEADED STRAIGHT PIN
5315-00-276-4099 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: P16760, 2150173, 6RE0346, 8376174, 92266, 5315-00-276-4099, 00-276-4099, 5315002764099, 110623004, 002764099
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-276-4099 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-276-4099
Cross Reference | NSN 5315-00-276-4099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110623004 | 63734 | KAITLIN CORP |
| 2150173 | 24617 | GENERAL MOTORS CORP |
| 2150173 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 6RE0346 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 8376174 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 92266 | 89109 | GRAHAM PAIGE CORP |
| P16760 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| P16760 | 06853 | BENDIX COMMERCIAL VEHICLE SYSTEMS LLC |
| P16760 | 33323 | KENWORTH TRUCK CO A DIV OF PACCAR INC |
| P16760 | 45320 | PACCAR GOVERNMENT GROUP CO YARROW BAY OFFICE PK |
| P16760 | 56442 | DIAMOND REO TRUCK CO |
| P16760 | 61465 | GARWOOD/FELLER INC GARWOOD WINCH DIV |
| P16760 | 65282 | WHITE MOTOR CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-276-4099
Related Products | NSN 5315-00-276-4099
Technical Data | NSN 5315-00-276-4099
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1015 OR STEEL COMP 1120 OR STEEL COMP 1112 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES NOMINAL |
| DIAMETER | 0.0921 INCHES NOMINAL |
| UNDER HEAD LENGTH | 1.656 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 10.0 DEGREES NOMINAL |

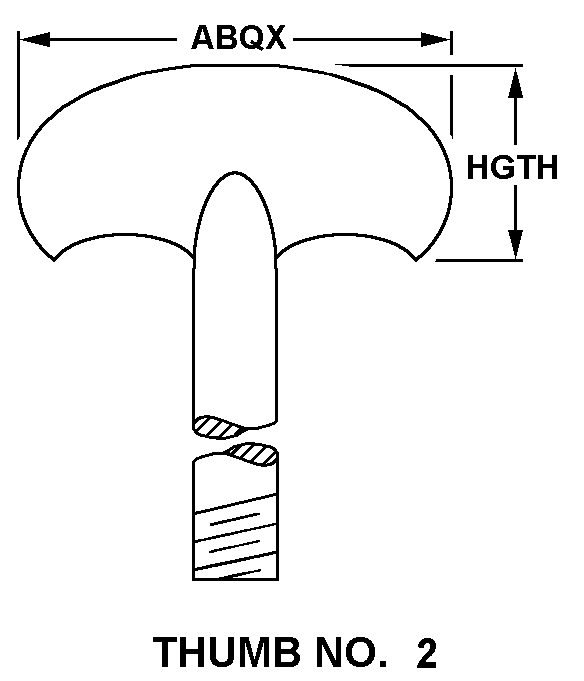

| HEAD STYLE | 46 THUMB NO. 2 |
| HEAD WIDTH | 0.156 INCHES NOMINAL |
| HEIGHT | 0.094 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-276-4099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-276-4099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
