NSN 5315-00-290-7691 MS9048236, MS9048-236, D520482501500
Product Details | SPRING PIN
5315-00-290-7691 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS9048236, MS9048-236, D520482501500, D52-048-250-1500, 5315-00-290-7691, 00-290-7691, 5315002907691, 002907691
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 SEP 1973 | 00-290-7691 | 02389 ( PIN, SPRING ) |

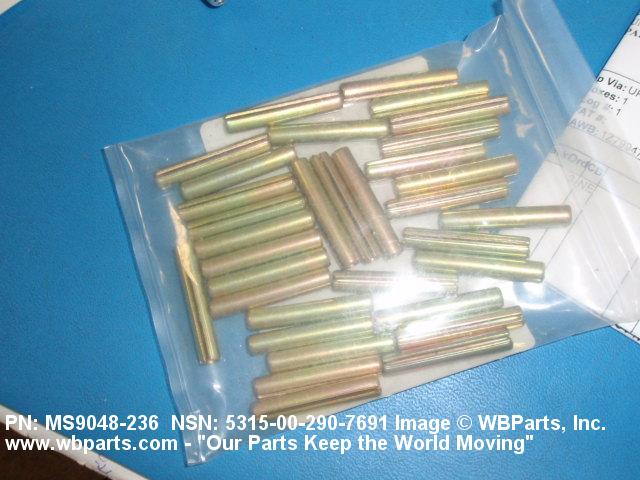

Drawings & Photos | NSN 5315-00-290-7691
Demand History | NSN 5315-00-290-7691
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS9048236 | 2022-04-91 | 10 | US |
| MS9048236 | 2010-10-280 | 30 | United States |
| MS9048236 | 2009-09-264 | 33 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-290-7691
Technical Data | NSN 5315-00-290-7691
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1074 OR STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5120 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5121 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400-2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 1.480 INCHES MINIMUM AND 1.520 INCHES MAXIMUM |
| DIAMETER | 0.258 INCHES MINIMUM AND 0.264 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.048 INCHES NOMINAL |
| SURFACE FINISH | 80.0 MICROINCHES OUTSIDE DIAMETER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9048-236 |
Restrictions/Controls & Freight Information | NSN 5315-00-290-7691
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
