NSN 5315-00-401-4796 MS17984C1035, MS17984-C1035, SLC10AB35
Product Details | QUICK RELEASE PIN
5315-00-401-4796 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984C1035, MS17984-C1035, SLC10AB35, BLC10B35S, LG10CB3500, LG10CB35M, 5315-00-401-4796, 00-401-4796, 5315004014796, 004014796
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 1972 | 00-401-4796 | 08323 ( PIN, QUICK RELEASE ) |

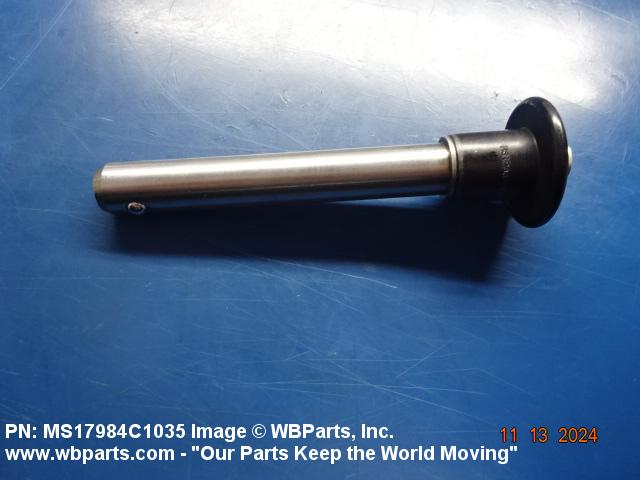

Drawings & Photos | NSN 5315-00-401-4796
Demand History | NSN 5315-00-401-4796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17984C1035 | 2025-10-287 | 1 | United States |
| MS17984C1035 | 2024-10-289 | 1 | us |
| 5315-00-401-4796 | 2016-03-82 | 13 | DIBBS |
| 5315-00-401-4796 | 2015-12-364 | 10 | DIBBS |
| 5315-00-401-4796 | 2015-12-341 | 1 | DIBBS |
| 5315-00-401-4796 | 2015-09-258 | 16 | DIBBS |
| 5315-00-401-4796 | 2015-02-51 | 1 | DIBBS |
| 5315-00-401-4796 | 2015-02-40 | 1 | DIBBS |
| MS17984C1035 | 2014-04-98 | 60 | US |
| MS17984C1035 | 2013-08-228 | 3 | US |
| MS17984C1035 | 2013-07-210 | 3 | US |
| MS17984C1035 | 2011-01-12 | 8 | US |
Cross Reference | NSN 5315-00-401-4796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC10B35S | 84256 | AVIBANK MFG., INC. |
| LG10CB3500 | 62060 | SOUTHCO INC. |
| LG10CB3500 | 83014 | HARTWELL CORPORATION |
| LG10CB3500 | SV287 | PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V. |
| LG10CB35M | 62060 | SOUTHCO INC. |
| LG10CB35M | 83014 | HARTWELL CORPORATION |
| LG10CB35M | SV287 | PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V. |
| MS17984-C1035 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS17984C1035 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C1035 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SLC10AB35 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-401-4796
Related Products | NSN 5315-00-401-4796
Technical Data | NSN 5315-00-401-4796
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 SHANK |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OR MIL-C-81562,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SHANK |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| STYLE DESIGNATOR | Q243 BUTTON |
| SHANK DIAMETER | 0.6220 INCHES MINIMUM AND 0.6235 INCHES MAXIMUM |
| BUTTON HANDLE DIAMETER | 1.530 INCHES MINIMUM AND 1.700 INCHES MAXIMUM |
| GRIP LENGTH | 3.500 INCHES MINIMUM AND 3.520 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.500 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.550 INCHES MINIMUM AND 0.580 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK OR RING |
Restrictions/Controls & Freight Information | NSN 5315-00-401-4796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-401-4796
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
