NSN 5315-00-405-2635 7310134, 731013-4, 00-405-2635
Product Details | MACHINE KEY
5315-00-405-2635 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 7310134, 731013-4, 5315-00-405-2635, 00-405-2635, 5315004052635, 004052635
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1971 | 00-405-2635 | 02378 ( KEY, MACHINE ) |

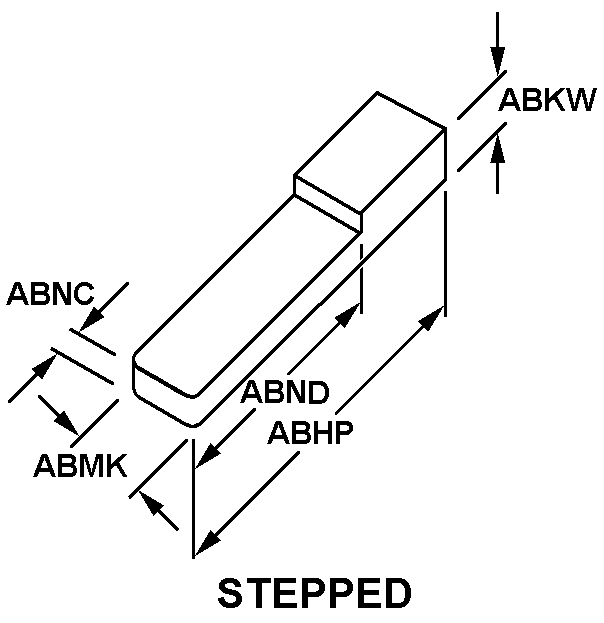

Drawings & Photos | NSN 5315-00-405-2635
Demand History | NSN 5315-00-405-2635
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-405-2635 | 2024-05-135 | 5 | DIBBS |
| 5315-00-405-2635 | 2023-12-361 | 2 | DIBBS |
| 5315-00-405-2635 | 2023-12-353 | 2 | DIBBS |
| 5315-00-405-2635 | 2023-08-235 | 1 | DIBBS |
Cross Reference | NSN 5315-00-405-2635
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 731013-4 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-405-2635
Technical Data | NSN 5315-00-405-2635
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8640 OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | B23 STEPPED |
| OVERALL LENGTH | 7.625 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| OVERALL WIDTH | 1.397 INCHES MINIMUM AND 1.398 INCHES MAXIMUM |
| FIRST FLAT LENGTH | 6.375 INCHES NOMINAL |
| FLAT HEIGHT | 0.499 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| MOUNTING HOLE TYPE AND QUANTITY | 1 THREADED |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNF |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.500 INCHES |
| MOUNTING HOLE THREAD CLASS | 3A |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 1.062 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 1.250 INCHES NOMINAL |
| STARTING EDGE SHAPE | STRAIGHT |
| MANUFACTURERS CODE | 44114 |
| DESIGN CONTROL REFERENCE | 731013-4 |
Restrictions/Controls & Freight Information | NSN 5315-00-405-2635
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-405-2635
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
