NSN 5315-00-446-9475 WD46814, WD468-14 , 496891
Product Details | HEADED STRAIGHT PIN
5315-00-446-9475 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: WD46814, WD468-14 , 496891, 49689-1, 5315-00-446-9475, 00-446-9475, 5315004469475, 004469475
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1971 | 00-446-9475 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-446-9475
Demand History | NSN 5315-00-446-9475
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-446-9475 | 2021-11-333 | 1693 | DIBBS |
| 5315-00-446-9475 | 2021-11-320 | 1693 | DIBBS |
| 5315-00-446-9475 | 2017-09-257 | 1317 | DIBBS |
| 5315-00-446-9475 | 2016-02-35 | 1615 | DIBBS |
| 5315-00-446-9475 | 2014-05-149 | 2448 | DIBBS |
| 5315-00-446-9475 | 2013-11-310 | 2250 | DIBBS |
| 5315-00-446-9475 | 2011-02-38 | 1845 | DIBBS |
| 5315-00-446-9475 | 2009-09-272 | 3116 | DIBBS |
| 5315-00-446-9475 | 2008-11-331 | 1480 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-446-9475
Related Products | NSN 5315-00-446-9475
Technical Data | NSN 5315-00-446-9475
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5637 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.030 INCHES NOMINAL |
| DIAMETER | 0.245 INCHES MINIMUM AND 0.247 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.688 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 25.0 DEGREES MINIMUM AND 0.35 DEGREES MAXIMUM |

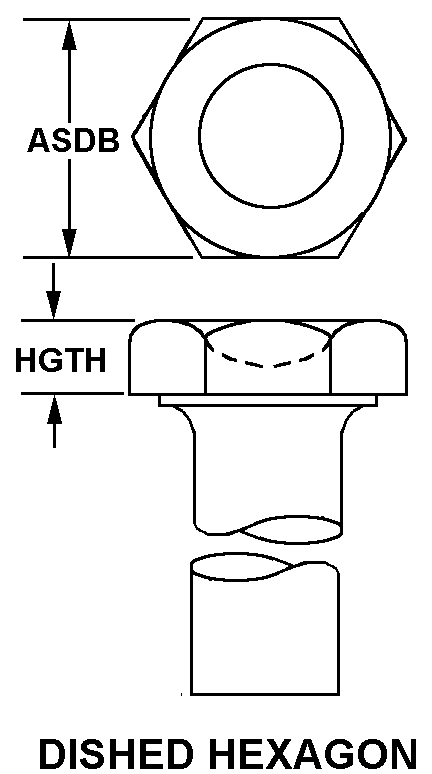

| HEAD STYLE | 9 DISHED HEXAGON |
| WIDTH ACROSS FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| HEIGHT | 0.203 INCHES NOMINAL |
| SPECIAL FEATURES | THREADED 0.25-0.28 IN NEXT TO HEAD,0.3125-24UNF-3A |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN,RADIAL LOCATION |
Restrictions/Controls & Freight Information | NSN 5315-00-446-9475
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TU | AF Cataloging Agent DLIS-K Battle Creek, MI 49037-3094 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
