NSN 5315-00-478-0252 MS16556693, MS16556-693, 00-478-0252
Product Details | HEADLESS STRAIGHT PIN
5315-00-478-0252 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS16556693, MS16556-693, 5315-00-478-0252, 00-478-0252, 5315004780252, 004780252
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 1970 | 00-478-0252 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

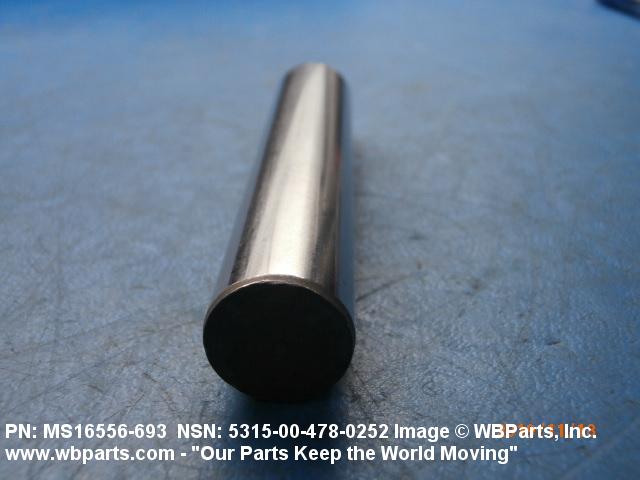

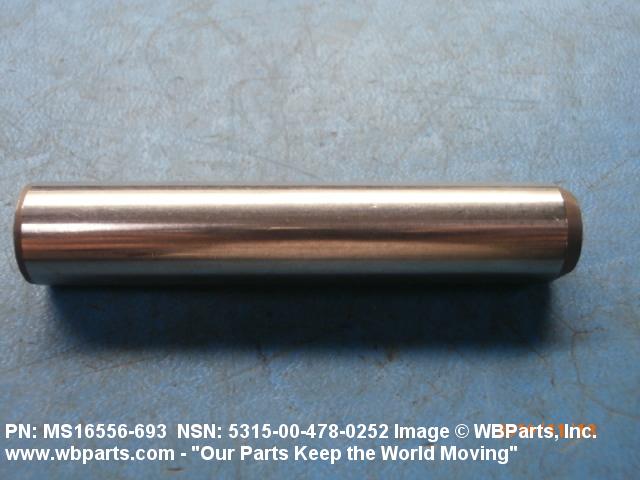

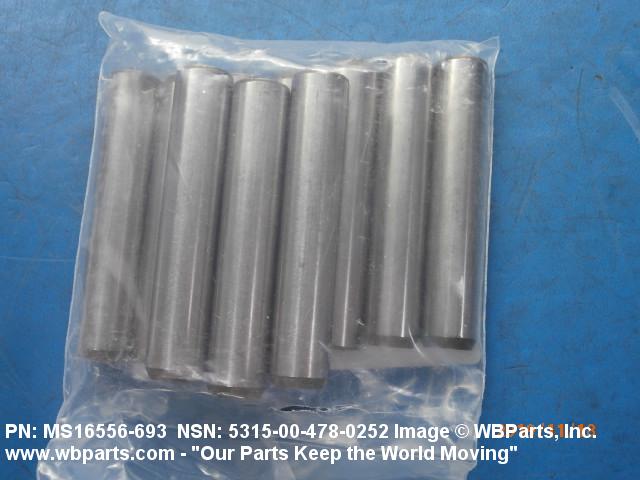

Drawings & Photos | NSN 5315-00-478-0252
Demand History | NSN 5315-00-478-0252
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-478-0252 | 2023-10-290 | 34 | DIBBS |
| 5315-00-478-0252 | 2022-03-87 | 45 | DIBBS |
| 5315-00-478-0252 | 2022-03-75 | 45 | DIBBS |
| MS16556693 | 2021-11-306 | 12 | United States |
| MS16556693 | 2021-10-292 | 12 | United States |
| MS16556693 | 2019-11-309 | 4 | United States |
| MS16556693 | 2018-03-73 | 8 | United States |
| 5315-00-478-0252 | 2015-05-148 | 4 | DIBBS |
| 5315-00-478-0252 | 2014-10-279 | 28 | DIBBS |
| MS16556693 | 2014-03-78 | 16 | United States |
| MS16556693 | 2013-08-241 | 16 | United States |
| 5315-00-478-0252 | 2012-05-152 | 6 | DIBBS |
| 5315-00-478-0252 | 2011-12-349 | 14 | DIBBS |
| MS16556693 | 2006-08-220 | 16 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-478-0252
Related Products | NSN 5315-00-478-0252
Technical Data | NSN 5315-00-478-0252
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |

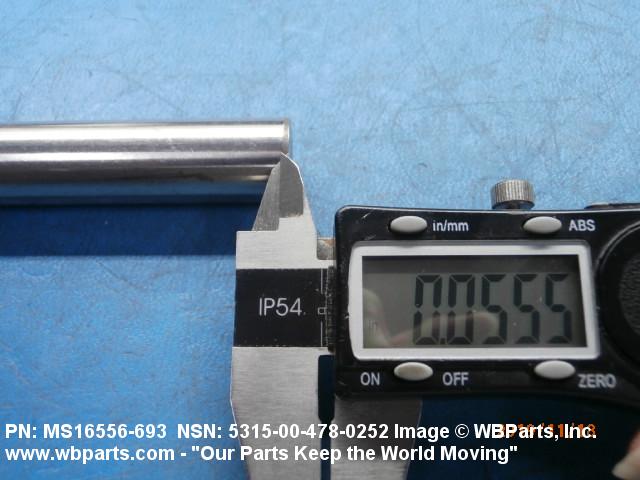

| FIRST END TAPER LENGTH | 0.062 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 20.0 DEGREES MINIMUM AND 30.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 1 CHAMFERED |

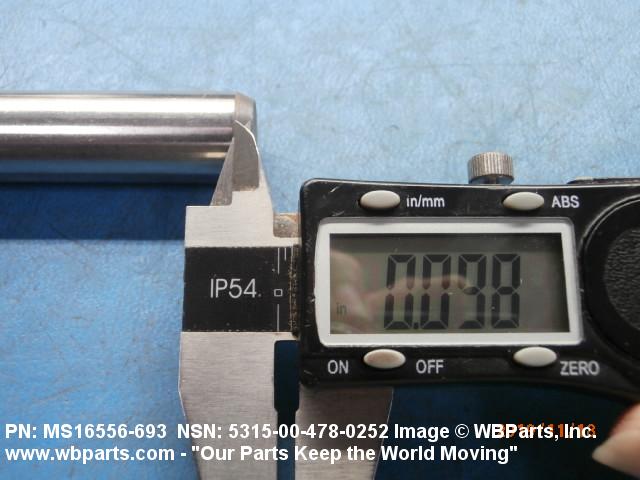

| SECOND END TAPER LENGTH | 0.089 INCHES NOMINAL |
| SECOND END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 12.0 DEGREES MAXIMUM |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |

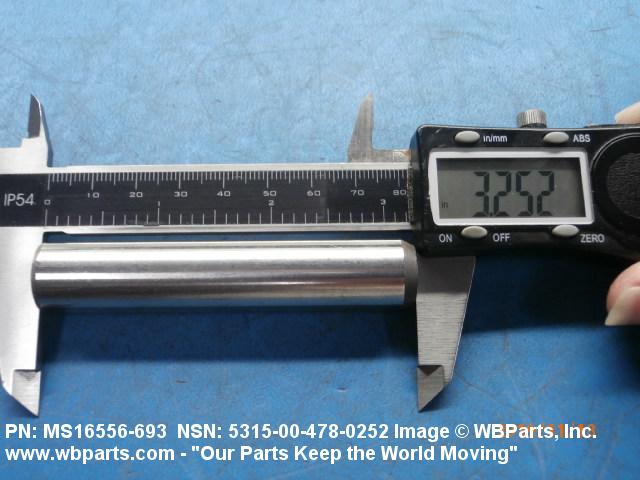

| PIN OVERALL LENGTH | 3.240 INCHES MINIMUM AND 3.260 INCHES MAXIMUM |

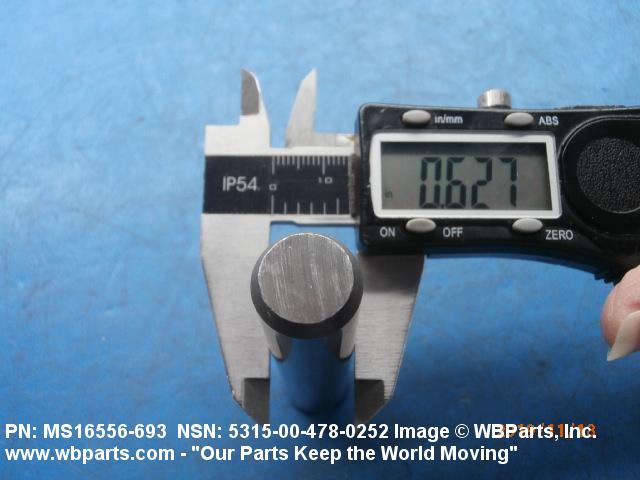

| PIN OVERALL DIAMETER | 0.6259 INCHES MINIMUM AND 0.6261 INCHES MAXIMUM |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | SMALL CHAMFER END MAY HAVE 0.062 IN. MIN 0.125 IN. MAX RADIUS IN LIEU OF CHAMFER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16556-693 |
Restrictions/Controls & Freight Information | NSN 5315-00-478-0252
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-478-0252
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
