NSN 5315-00-496-7580 MS39086494, MS39086-494, 00128
Product Details | SPRING PIN
5315-00-496-7580 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS39086494, MS39086-494, 00128, 5315-00-496-7580, 00-496-7580, 5315004967580, 004967580
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 JUL 1974 | 00-496-7580 | 02389 ( PIN, SPRING ) |

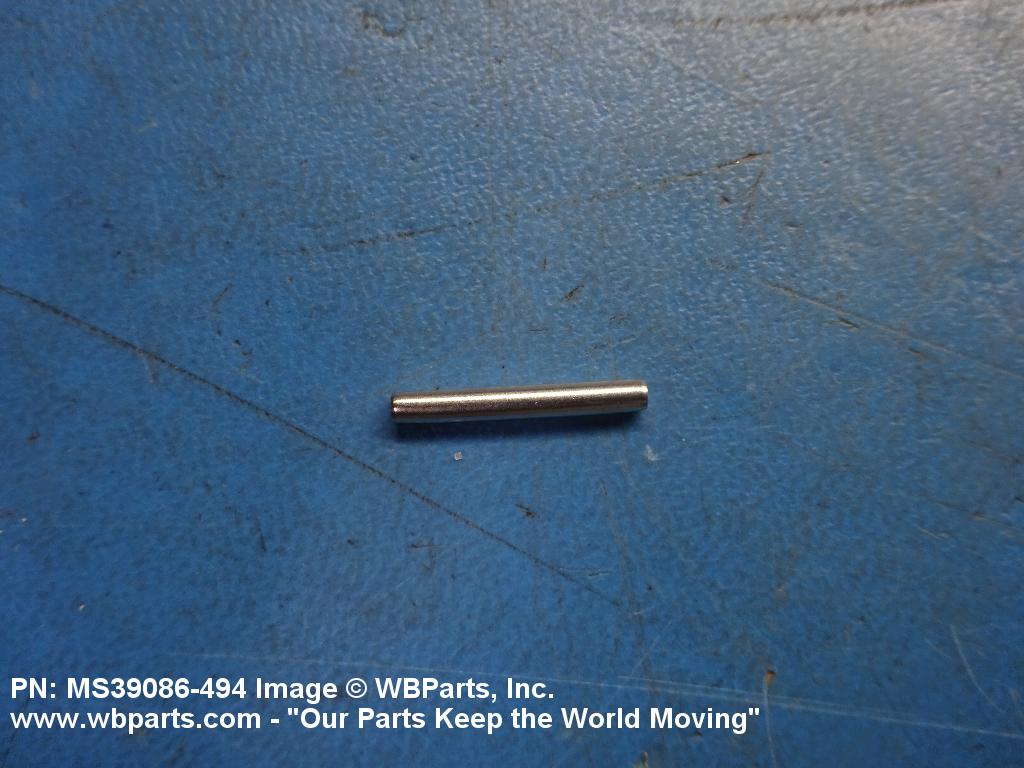

Drawings & Photos | NSN 5315-00-496-7580
Demand History | NSN 5315-00-496-7580
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-496-7580 | 2025-12-338 | 1 | Panama |
| MS39086-494 | 2025-07-191 | 1601 | DIBBS |
| NASM39086 | 2025-07-191 | 1601 | DIBBS |
| MS39086-494 | 2024-06-155 | 379 | DIBBS |
| NASM39086 | 2024-06-155 | 379 | DIBBS |
| MS39086-494 | 2024-05-142 | 233 | DIBBS |
| NASM39086 | 2024-05-142 | 233 | DIBBS |
| 5315-00-496-7580 | 2023-08-229 | 3588 | DIBBS |
| 5315-00-496-7580 | 2021-09-264 | 330 | United States |
| 5315-00-496-7580 | 2020-11-323 | 2 | United States |
| MS39086494 | 2019-07-210 | 75 | US |
| MS39086494 | 2016-06-180 | 1 | CN |
| MS39086494 | 2016-03-77 | 5 | US |
| 5315-00-496-7580 | 2015-03-83 | 2000 | DIBBS |
| 5315-00-496-7580 | 2011-01-11 | 1 | TR |
| MS39086494 | 2010-11-306 | 25 | US |
| 5315-00-496-7580 | 2010-04-105 | 614 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-496-7580
Related Products | NSN 5315-00-496-7580
Technical Data | NSN 5315-00-496-7580
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 53000 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | K177 COILED |

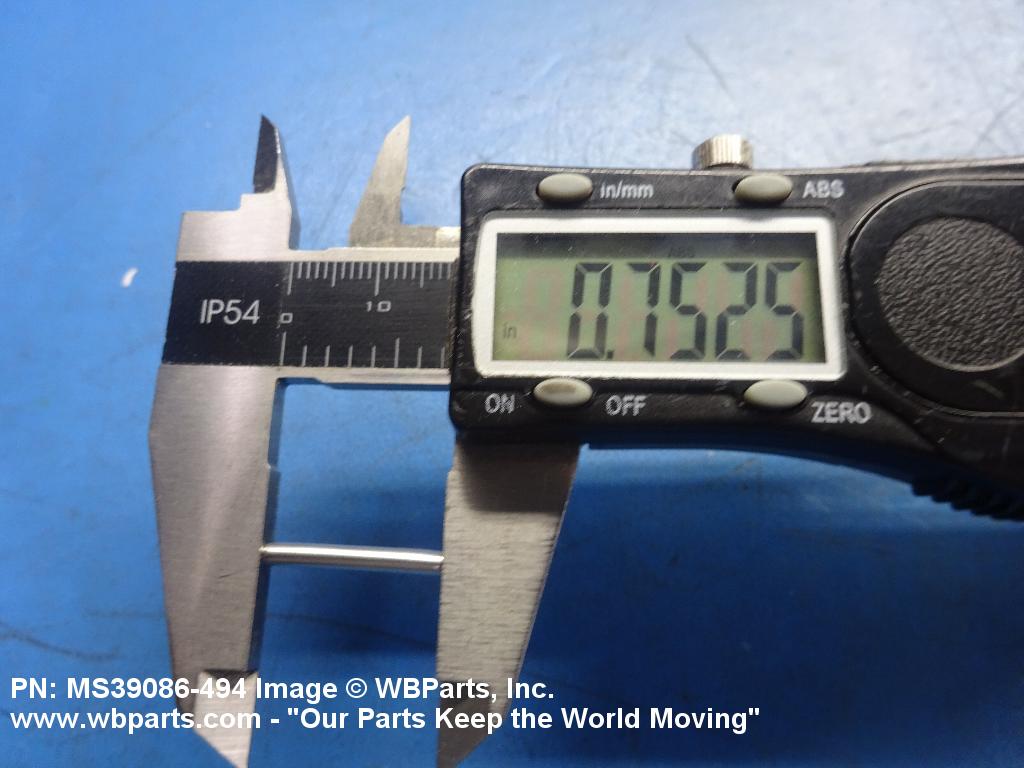

| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| DIAMETER | 0.094 INCHES NOMINAL |

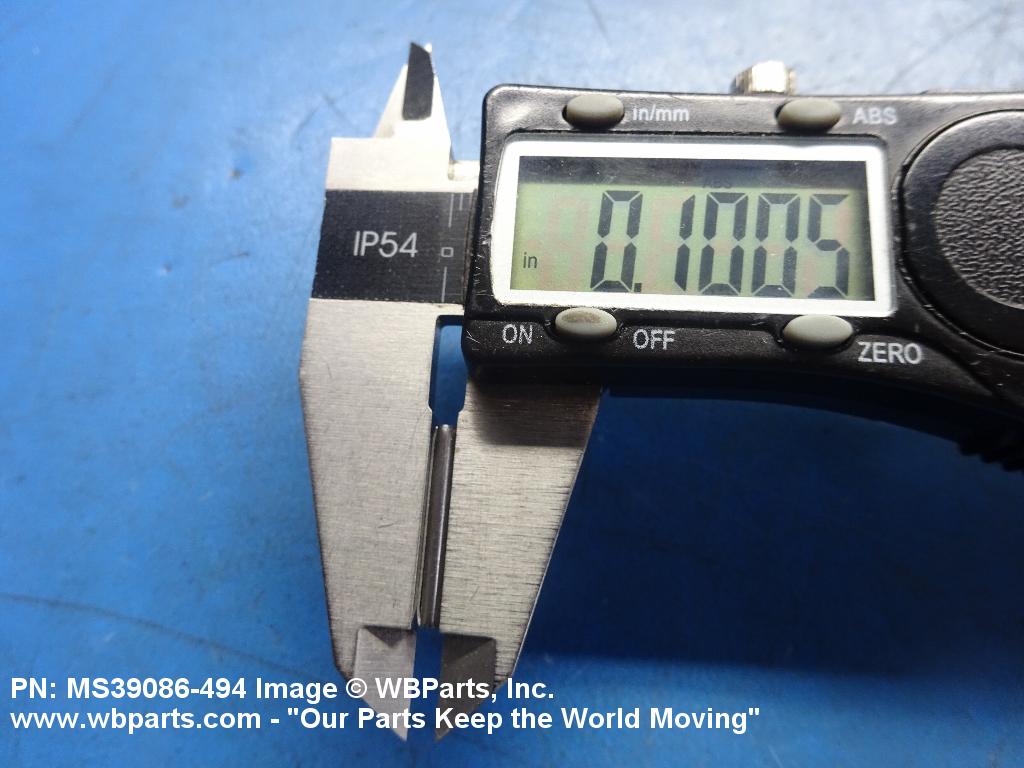

| EXPANDED DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39086-494 |
Restrictions/Controls & Freight Information | NSN 5315-00-496-7580
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5315-00-496-7580
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
