NSN 5315-00-513-6794 513987PC3, 00-513-6794, 005136794
Product Details | HEADED STRAIGHT PIN
5315-00-513-6794 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 513987PC3, 5315-00-513-6794, 00-513-6794, 5315005136794, 005136794
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-513-6794 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-513-6794
Cross Reference | NSN 5315-00-513-6794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 513987PC3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-513-6794
Technical Data | NSN 5315-00-513-6794
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE OVERALL |
| DIAMETER | 0.375 INCHES NOMINAL |
| UNDER HEAD LENGTH | 0.875 INCHES NOMINAL |

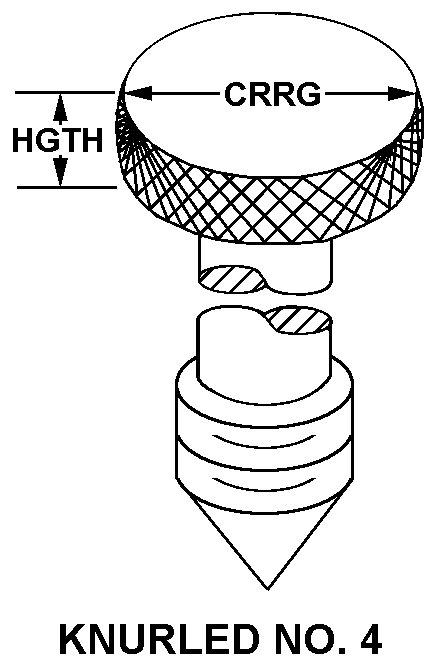

| HEAD STYLE | 28 KNURLED NO. 4 |
| PIN HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEIGHT | 0.250 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 5 DRILLED THRU HEAD |
| FIRST HOLE DIAMETER | 0.062 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.969 INCHES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 513987PC3 |
