NSN 5315-00-579-8390 NAS56124, NAS561-2-4, 1810416
Product Details | SPRING PIN
5315-00-579-8390 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: NAS56124, NAS561-2-4, 1810416, 1810-4-16, 5315-00-579-8390, 00-579-8390, 5315005798390, 005798390
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-579-8390 | 02389 ( PIN, SPRING ) |

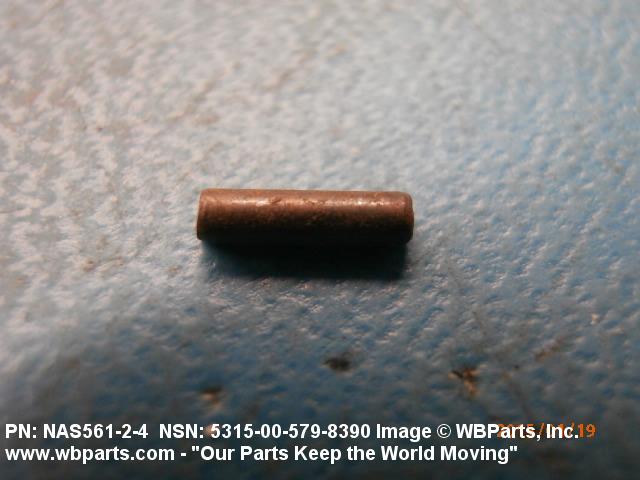

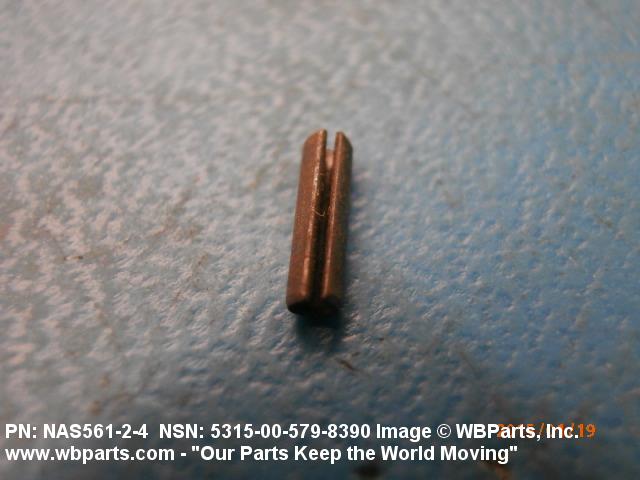

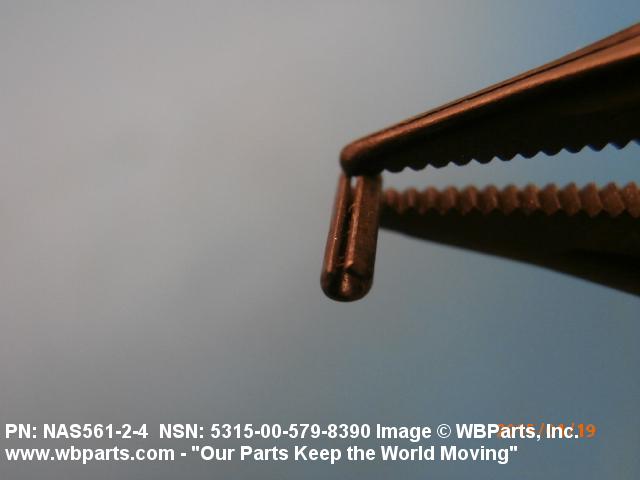

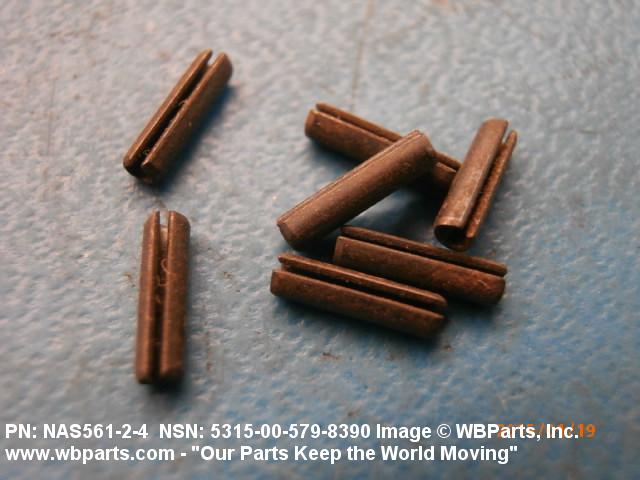

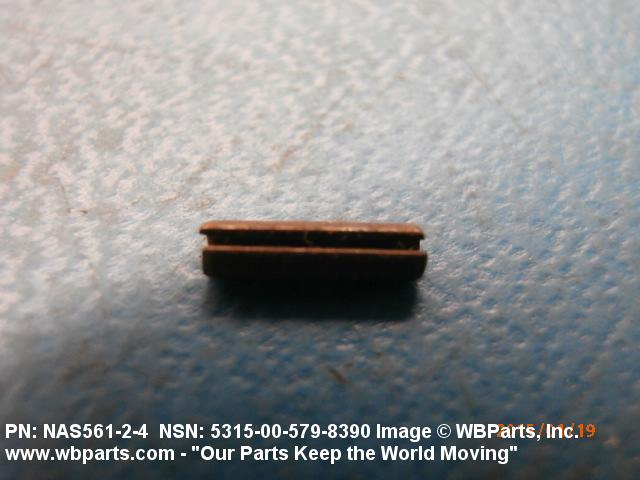

Drawings & Photos | NSN 5315-00-579-8390
Demand History | NSN 5315-00-579-8390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-579-8390 | 2019-07-197 | 1 | US |
| 5315-00-579-8390 | 2015-01-12 | 50 | United States |
| 5315-00-579-8390 | 2015-01-08 | 50 | United States |
| 5315-00-579-8390 | 2014-12-356 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-579-8390
Technical Data | NSN 5315-00-579-8390
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 83.6 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 87.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |

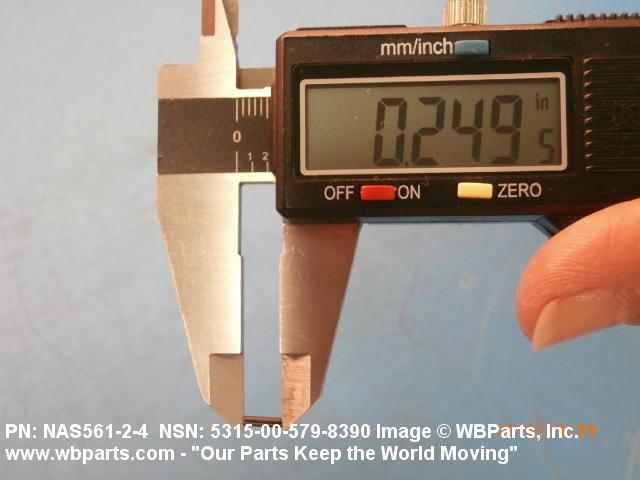

| OVERALL LENGTH | 0.250 INCHES NOMINAL |

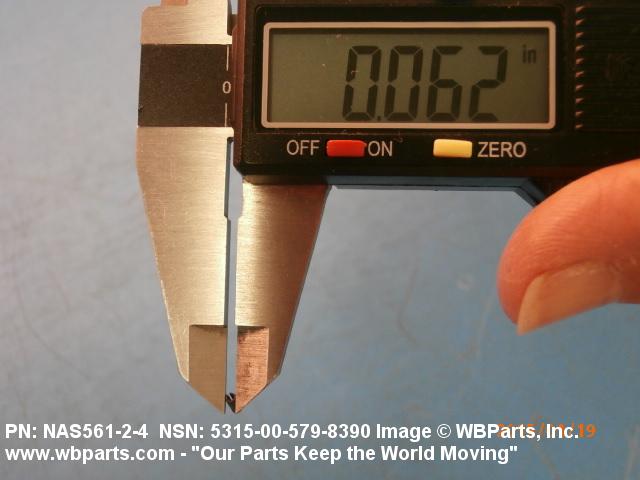

| DIAMETER | 0.062 INCHES NOMINAL |

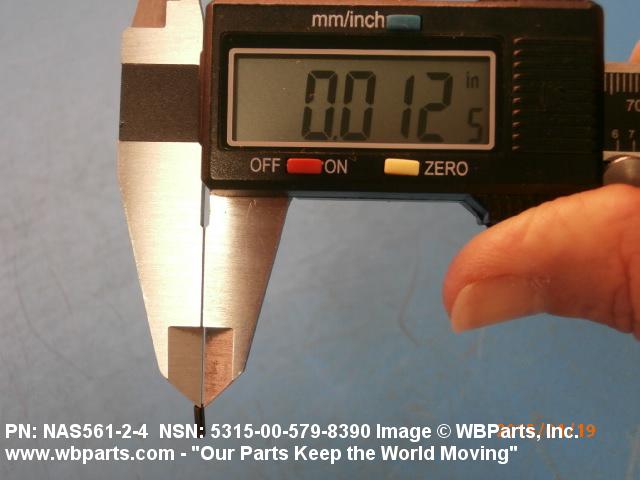

| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-579-8390
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
