NSN 5315-00-584-1600 MS20392785, MS20392-7-85, MILP5673
Product Details | HEADED STRAIGHT PIN

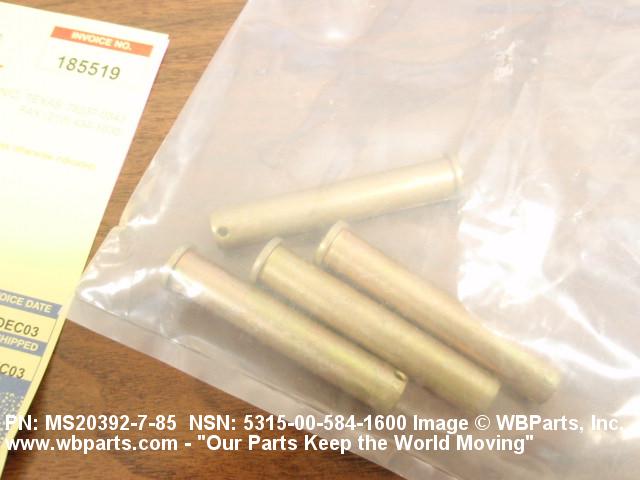

5315-00-584-1600 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS20392785, MS20392-7-85, MILP5673, 5315-00-584-1600, 00-584-1600, 5315005841600, 005841600
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-1600 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-584-1600
Demand History | NSN 5315-00-584-1600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20392785 | 2010-11-323 | 4 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-584-1600
Technical Data | NSN 5315-00-584-1600
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| DIAMETER | 0.495 INCHES MINIMUM AND 0.497 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 2.922 INCHES MINIMUM AND 2.953 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.625 INCHES NOMINAL |
| HEIGHT | 0.094 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.0965 INCHES MINIMUM AND 0.1165 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.223 INCHES MINIMUM AND 0.234 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILP5673 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-7-85 |
