NSN 5315-00-586-9096 8B3402085, 8B340208-5, 00-586-9096
Product Details | HEADED SHOULDER PIN
5315-00-586-9096 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 8B3402085, 8B340208-5, 5315-00-586-9096, 00-586-9096, 5315005869096, 005869096
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-586-9096 | 16563 ( PIN, SHOULDER, HEADED ) |
Drawings & Photos | NSN 5315-00-586-9096
Cross Reference | NSN 5315-00-586-9096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8B340208-5 | 89446 | HILLER AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-586-9096
Related Products | NSN 5315-00-586-9096
Technical Data | NSN 5315-00-586-9096
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | H149 SHOULDER |
| UNDER HEAD LENGTH | 0.976 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.433 INCHES MINIMUM AND 0.436 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.186 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.371 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| SECOND STEP LENGTH | 0.790 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.030 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |

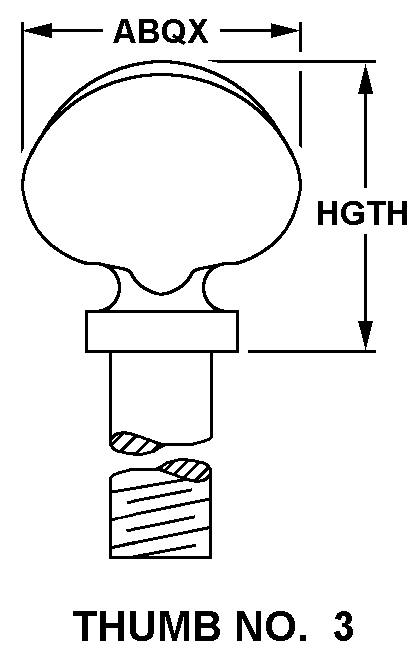

| HEAD STYLE | 47 THUMB NO. 3 |
| HEAD WIDTH | 0.547 INCHES NOMINAL |
| HEIGHT | 0.500 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 89446 |
| DESIGN CONTROL REFERENCE | 8B340208-5 |
Restrictions/Controls & Freight Information | NSN 5315-00-586-9096
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-586-9096
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
