NSN 5315-00-614-6957 231680, 23-1680, 00-614-6957
Product Details | HEADED SHOULDER PIN
5315-00-614-6957 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 231680, 23-1680, 5315-00-614-6957, 00-614-6957, 5315006146957, 006146957
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-614-6957 | 16563 ( PIN, SHOULDER, HEADED ) |
Drawings & Photos | NSN 5315-00-614-6957
Demand History | NSN 5315-00-614-6957
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-614-6957 | 2025-03-72 | 5 | DIBBS |
| 5315-00-614-6957 | 2023-07-201 | 13 | DIBBS |
| 23-1680 | 2023-03-71 | 3 | DIBBS |
| 23-1680 | 2023-02-59 | 2 | DIBBS |
Cross Reference | NSN 5315-00-614-6957
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23-1680 | 82918 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-614-6957
Related Products | NSN 5315-00-614-6957
Technical Data | NSN 5315-00-614-6957
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CLASS 416 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

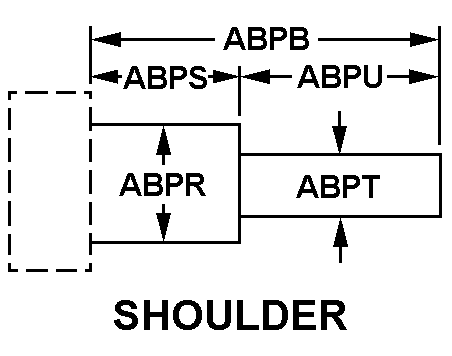

| STYLE DESIGNATOR | H149 SHOULDER |
| UNDER HEAD LENGTH | 2.490 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.680 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.190 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.5601 INCHES MINIMUM AND 0.5606 INCHES MAXIMUM |
| SECOND STEP LENGTH | 2.300 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.260 INCHES NOMINAL |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.930 INCHES NOMINAL |
| HEIGHT | 0.120 INCHES NOMINAL |
| SURFACE FINISH | 100.0 MICROINCHES OVERALL |
| CRITICALITY CODE JUSTIFICATION | ABPT |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 23-1680 |
Restrictions/Controls & Freight Information | NSN 5315-00-614-6957
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-614-6957
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FG | SX:B-52 STRATO FORTRESS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
