NSN 5315-00-616-4493 FFN103, 00-616-4493, 006164493
Product Details | TACK
5315-00-616-4493 A short, sharp-pointed fastening device having a flat or oval head and a cut shank usually less than 1 inch (25.4 mm) in length.
Part Alternates: FFN103, 5315-00-616-4493, 00-616-4493, 5315006164493, 006164493
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-4493 | 29633 ( TACK ) |
Drawings & Photos | NSN 5315-00-616-4493
Cross Reference | NSN 5315-00-616-4493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFN103 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-616-4493
Related Products | NSN 5315-00-616-4493
Technical Data | NSN 5315-00-616-4493
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |
| FABRICATION METHOD | CUT |
| STERILIZED | NO |
| METALLIC HARDNESS RATING | NOT RATED |
| SHANK STYLE | 8 SMOOTH ROUND |
| SHANK DIAMETER | 0.078 INCHES NOMINAL |
| HEAD STYLE | 19 FLAT |
| HEAD DIAMETER | 0.259 INCHES NOMINAL |

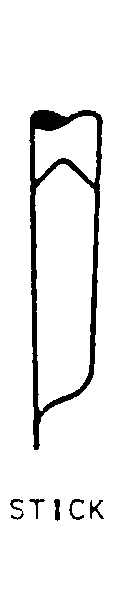

| POINT STYLE | 10 STICK |
| FASTENER LENGTH | 0.594 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 3 STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFN103 |
Restrictions/Controls & Freight Information | NSN 5315-00-616-4493
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
