NSN 5315-00-702-3139 MS179851228, MS17985-1228, MS17985C1228
Product Details | QUICK RELEASE PIN
5315-00-702-3139 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS179851228, MS17985-1228, MS17985C1228, SLC12AT28, LG12CT1228, LG12CT28M, 55791228T, 5579-12-28T, 5315-00-702-3139, 00-702-3139, 5315007023139, 007023139
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 NOV 1966 | 00-702-3139 | 08323 ( PIN, QUICK RELEASE ) |

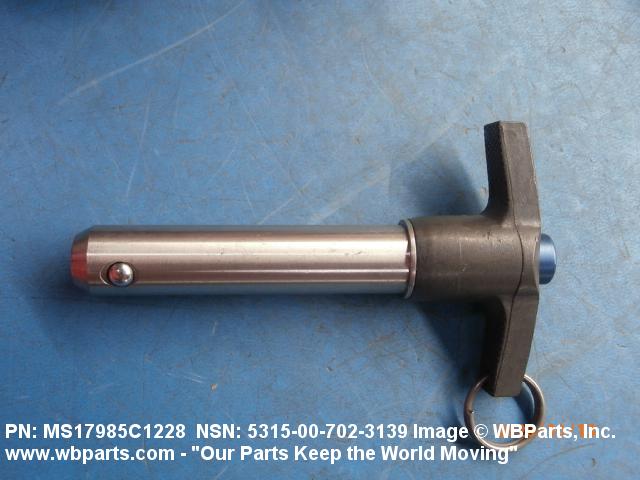

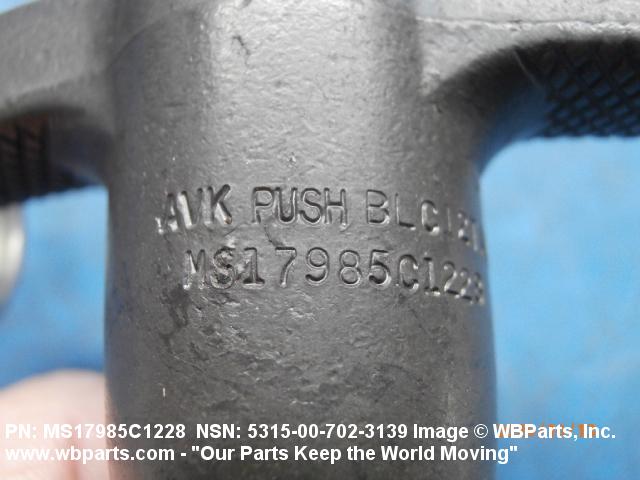

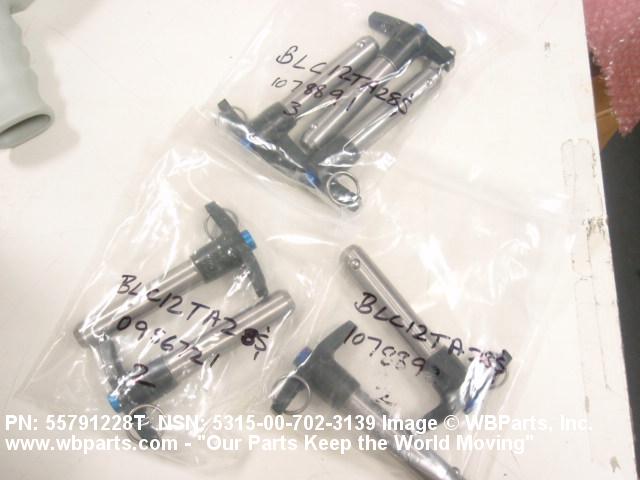

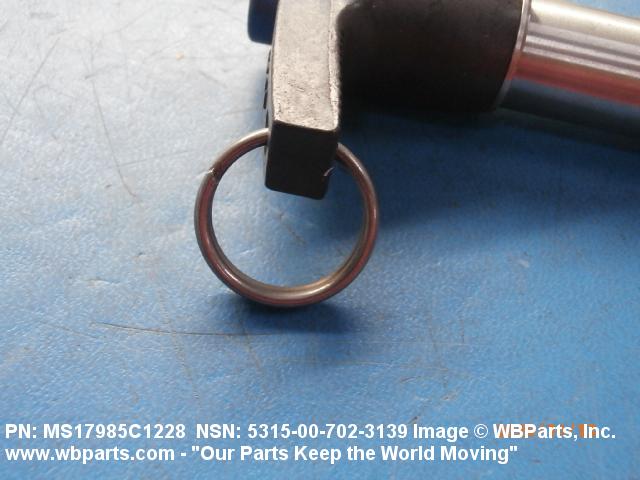

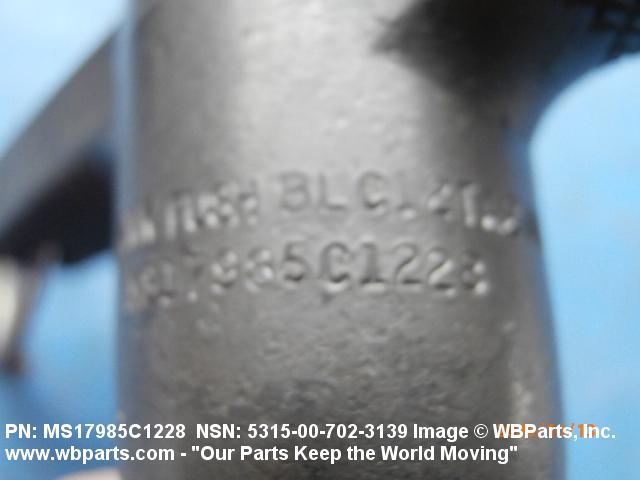

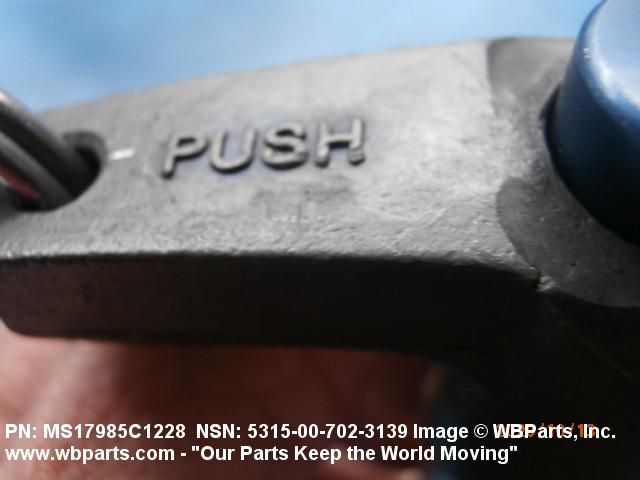

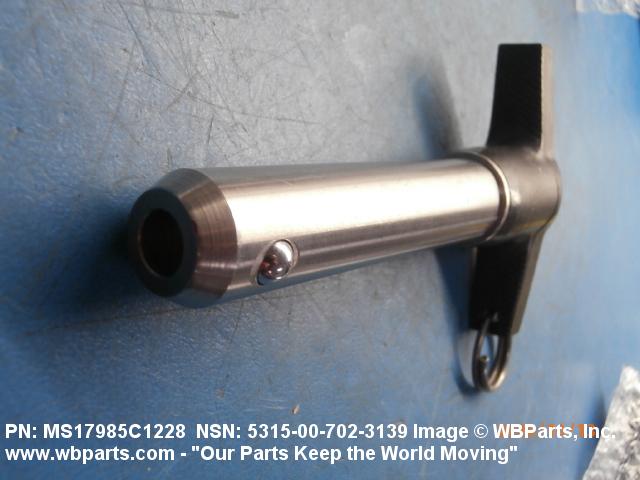

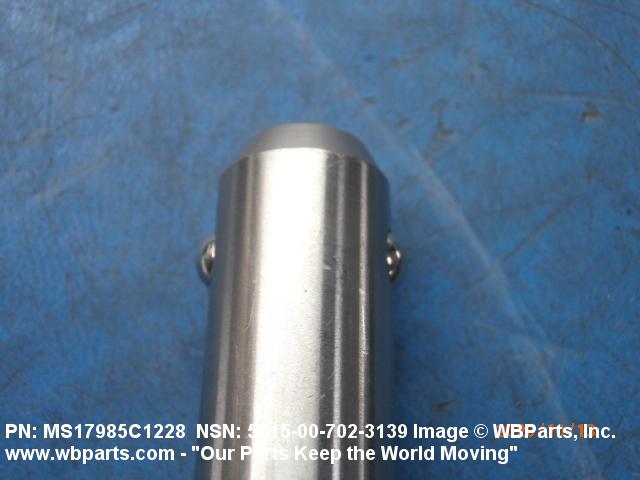

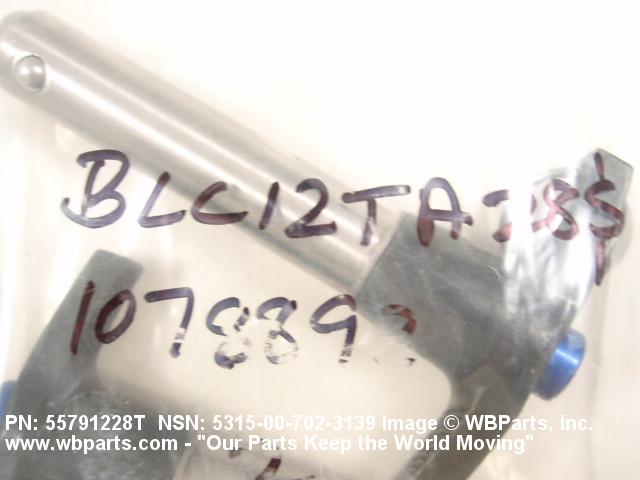

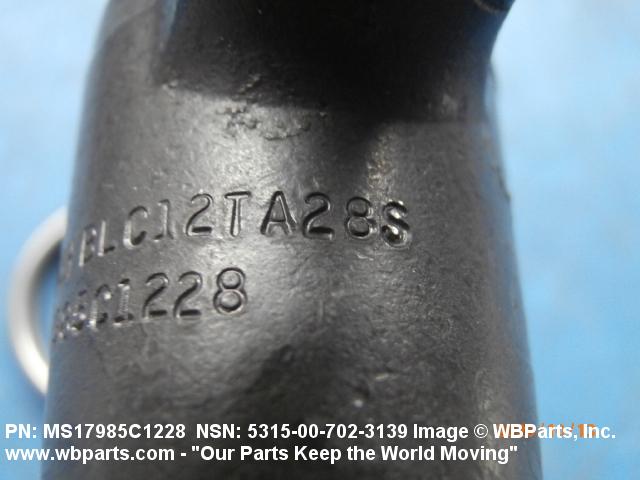

Drawings & Photos | NSN 5315-00-702-3139
Demand History | NSN 5315-00-702-3139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-702-3139 | 2025-05-150 | 2 | Canada |
| 5315-00-702-3139 | 2023-10-284 | 8 | us |
| 5315-00-702-3139 | 2021-04-118 | 1 | GU |
| MS17985C1228 | 2020-10-281 | 2 | United States |
| MS17985C1228 | 2020-09-273 | 2 | United States |
| 5315-00-702-3139 | 2019-02-59 | 1 | DIBBS-RFPs |
| MS17985C1228 | 2018-07-193 | 8 | United States |
| 5315-00-702-3139 | 2016-08-214 | 819 | DIBBS |
| 5315-00-702-3139 | 2016-05-145 | 6 | MANUAL |
| LG12CT1228 | 2016-05-145 | 6 | Spain |
| 5315-00-702-3139 | 2016-03-78 | 5 | United States |
| 5315-00-702-3139 | 2013-11-319 | 1 | DIBBS-RFPs |
| 55791228T | 2010-09-272 | 7 | United States |
| MS17985C1228 | 2010-08-216 | 10 | United States |
| 5315-00-702-3139 | 2010-03-90 | 1 | Canada |
| 5315-00-702-3139 | 2009-07-187 | 957 | DIBBS |
Cross Reference | NSN 5315-00-702-3139
| Part Number | Cage Code | Manufacturer |
|---|---|---|

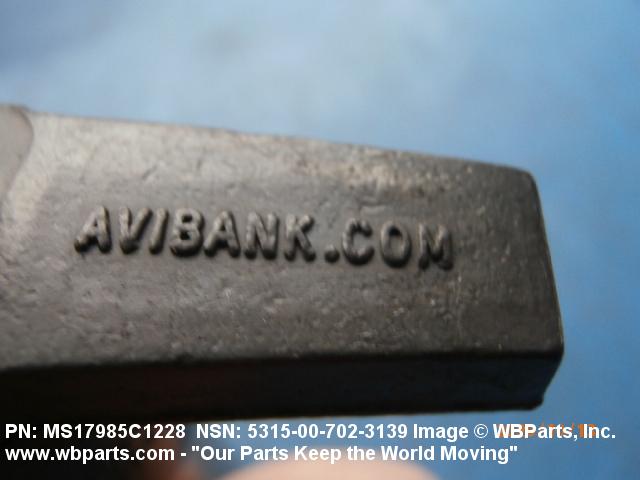

| 5579-12-28T | 84256 | AVIBANK MFG., INC. |
| 5579-12-28T | R1120 | SATAIR A/S |
| LG12CT1228 | 62060 | SOUTHCO INC. |
| LG12CT1228 | 83014 | HARTWELL CORPORATION |
| LG12CT28M | 62060 | SOUTHCO INC. |
| LG12CT28M | 83014 | HARTWELL CORPORATION |
| MS17985-1228 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17985C1228 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17985C1228 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17985C1228 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| SLC12AT28 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-702-3139
Related Products | NSN 5315-00-702-3139
Technical Data | NSN 5315-00-702-3139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| SHEAR STRENGTH | 82500 DOUBLE POUND |

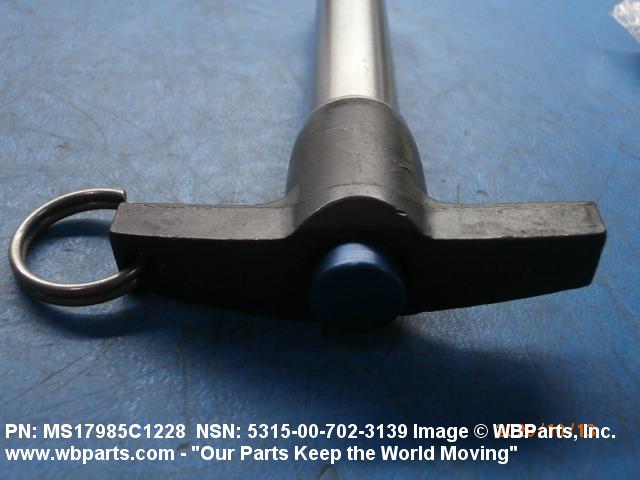

| STYLE DESIGNATOR | Q241 T HANDLE |

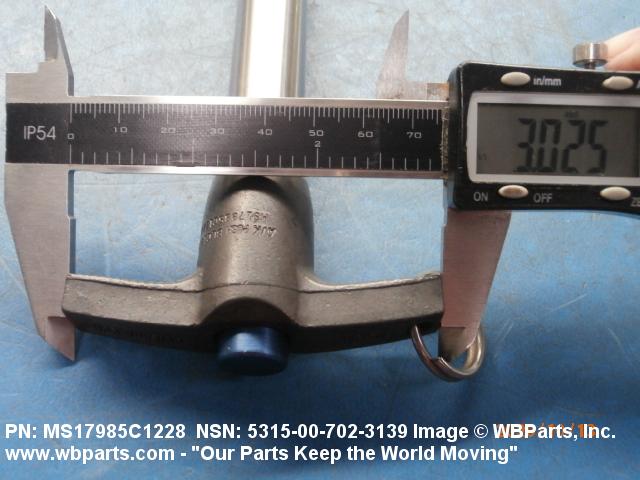

| HANDLE LENGTH | 2.500 INCHES MINIMUM AND 3.100 INCHES MAXIMUM |

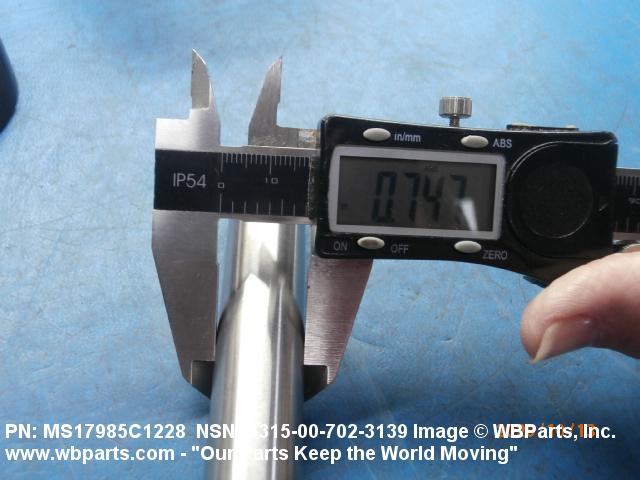

| SHANK DIAMETER | 0.7470 INCHES MINIMUM AND 0.7485 INCHES MAXIMUM |

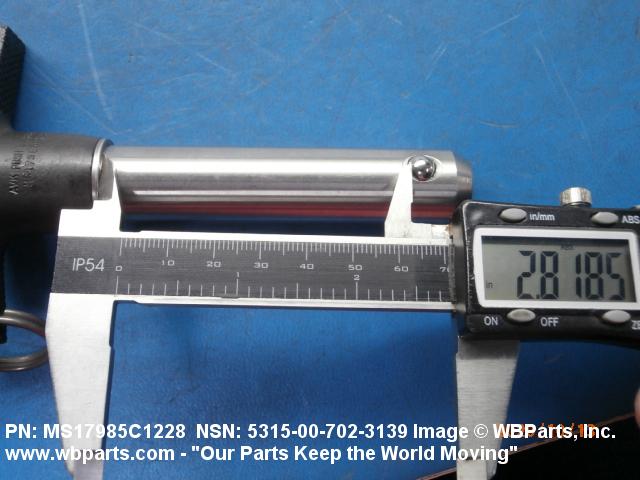

| GRIP LENGTH | 2.800 INCHES MINIMUM AND 2.820 INCHES MAXIMUM |

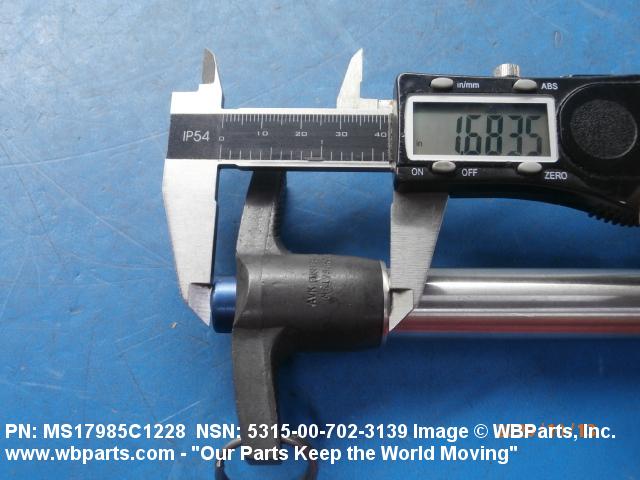

| SHOULDER TO HEAD END DISTANCE | 1.720 INCHES MAXIMUM |

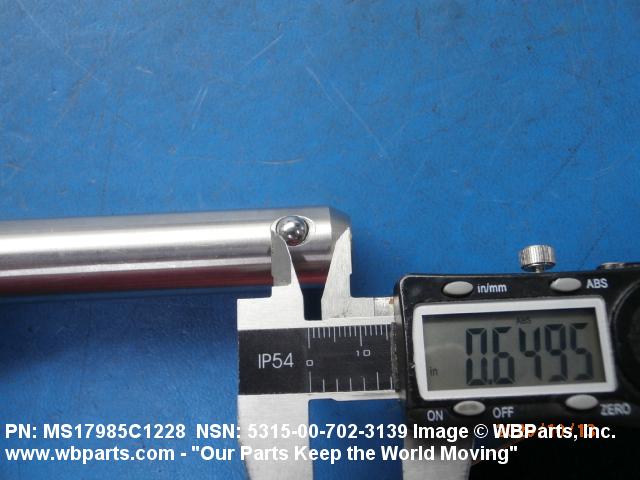

| DETENT TO TAPERED END DISTANCE | 0.640 INCHES MINIMUM AND 0.670 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |

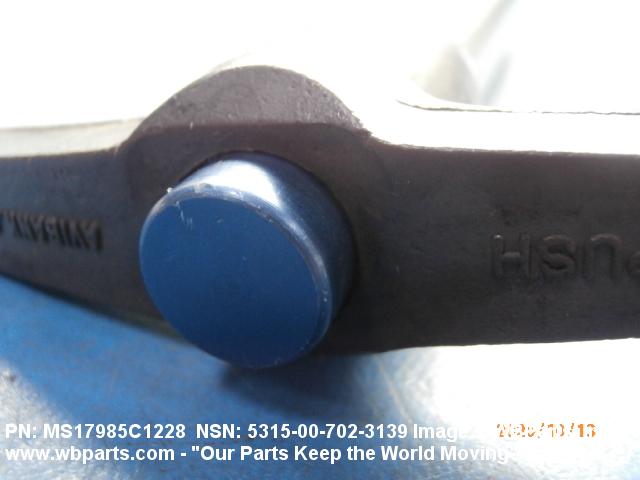

| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK OR RING |
Restrictions/Controls & Freight Information | NSN 5315-00-702-3139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-702-3139
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
