Product Details | HEADLESS GROOVED PIN

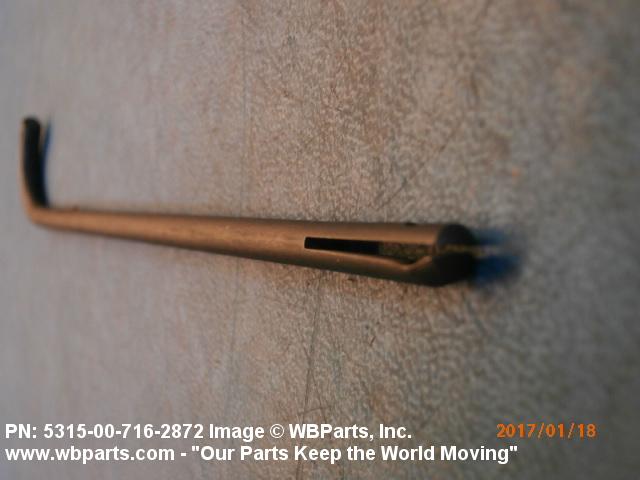

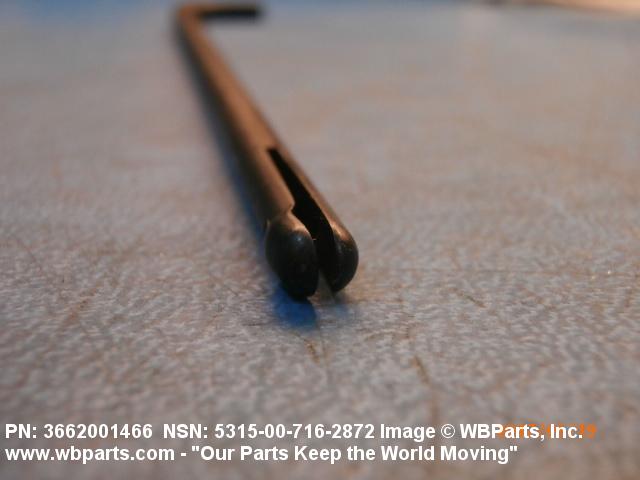

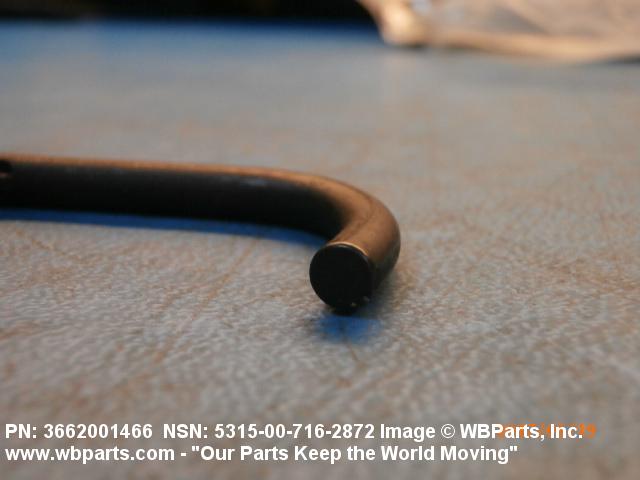

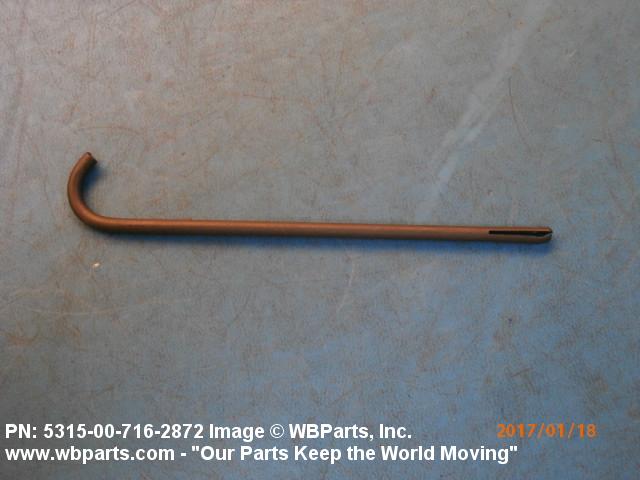

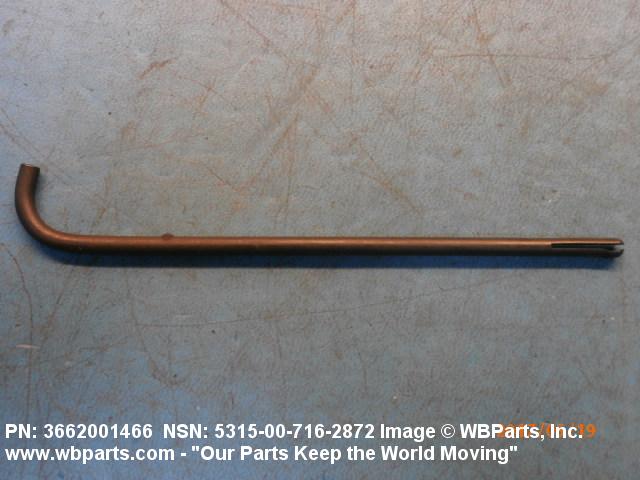

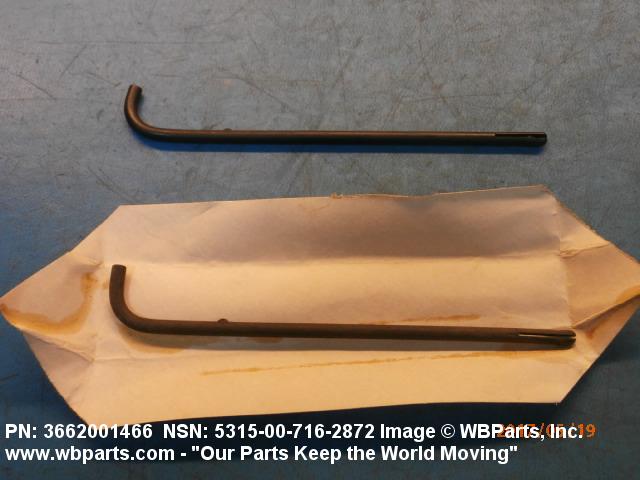

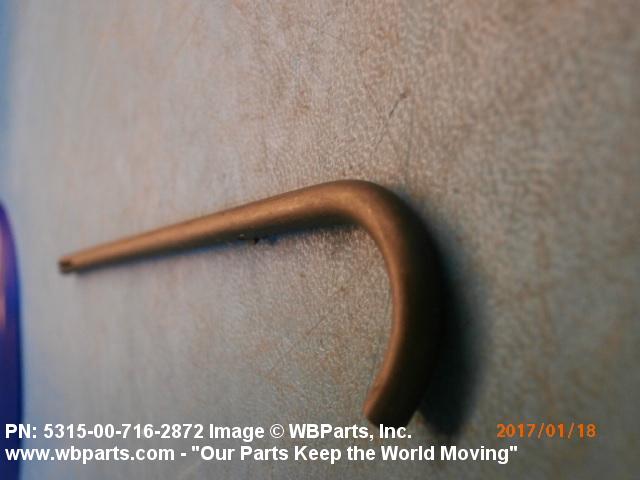

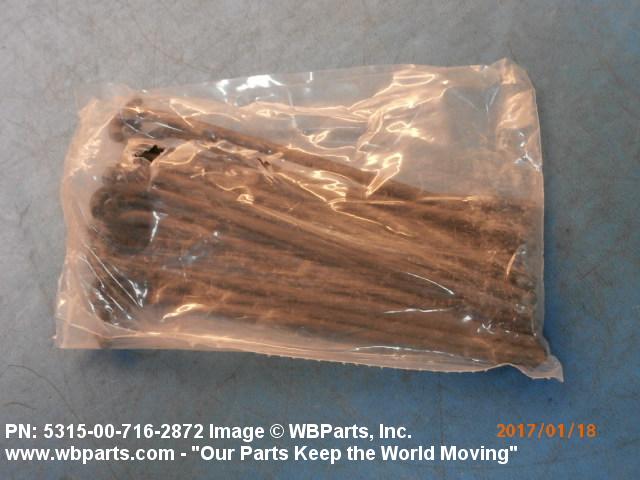

5315-00-716-2872 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: A10422, 10057162872, 3662001466, 366-200-1466, 5315PL0954960, 7162872, 75F6030, 5315-00-716-2872, 00-716-2872, 5315007162872, 007162872
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-716-2872 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-00-716-2872
Demand History | NSN 5315-00-716-2872
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-716-2872 | 2023-05-25 | 10 | United States |
| 5315-00-716-2872 | 2021-01-29 | 7 | United States |
| 5315-00-716-2872 | 2019-12-26 | 4 | United States |
| 5315-00-716-2872 | 2019-04-09 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2018-09-05 | 37 | United States |
| 5315-00-716-2872 | 2018-05-17 | 3600 | DIBBS |
| 5315-00-716-2872 | 2018-01-31 | 14800 | DIBBS |
| 5315-00-716-2872 | 2018-01-24 | 5 | United States |
| 5315-00-716-2872 | 2017-12-27 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-12-08 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-12-01 | 11000 | DIBBS |
| 5315-00-716-2872 | 2017-10-31 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-10-19 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-10-16 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-09-21 | 10 | United States |
| 5315-00-716-2872 | 2017-09-08 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-08-08 | 5 | United States |
| 5315-00-716-2872 | 2017-04-12 | 6 | United States |
| 5315-00-716-2872 | 2017-01-27 | 1 | DIBBS-RFPs |
| 5315-00-716-2872 | 2017-01-16 | 7 | United States |
| 5315-00-716-2872 | 2016-12-19 | 20 | United States |
| 5315-00-716-2872 | 2015-07-17 | 2104 | DIBBS |
| 5315-00-716-2872 | 2011-11-02 | 4716 | DIBBS |
| 5315-00-716-2872 | 2011-03-08 | 833 | DIBBS |
| 5315-00-716-2872 | 2011-01-03 | 13238 | DIBBS |
| 5315-00-716-2872 | 2010-04-21 | 7994 | DIBBS |
| 5315-00-716-2872 | 2010-01-28 | 4367 | DIBBS |
| 5315-00-716-2872 | 2009-11-12 | 15037 | DIBBS |
Cross Reference | NSN 5315-00-716-2872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10057162872 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 366-200-1466 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 3662001466 | 3S679 | FN AMERICA, LLC |
| 3662001466 | B0897 | FN HERSTAL SA |
| 5315007162872 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5315PL0954960 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 7162872 | 19200 | US ARMY ARDEC RDECOM |
| A10422 | U4574 | MANROY ENGINEERING LTD |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-716-2872
Related Products | NSN 5315-00-716-2872
5315-00-848-8785, 5315-00-894-2549, 5315-00-979-9716, 5315-01-053-2855, 5315-01-071-8871
Technical Data | NSN 5315-00-716-2872
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1045 AND STEEL COMP 4140 AND STEEL COMP 8640 AND STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA108 ASSN STD SINGLE MATERIAL RESPONSE AND ASTMA322 ASSN STD SINGLE MATERIAL RESPONSE AND ASTMA331 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE AND PHOSPHATE ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,CLASS 1,TYPE M MIL SPEC SINGLE TREATMENT RESPONSE AND MIL-P-16232,CLASS 1,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

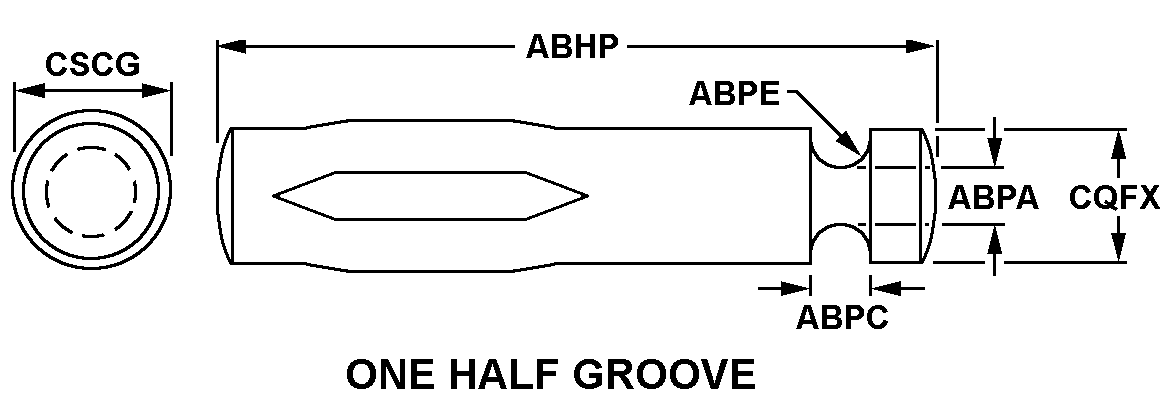

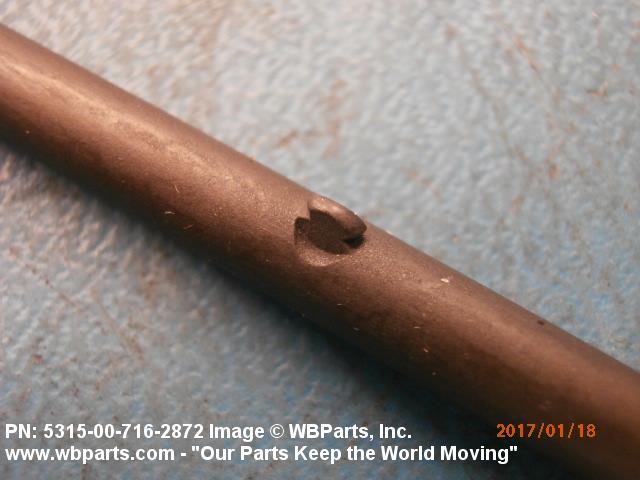

| STYLE DESIGNATOR | F122 ONE HALF GROOVE |

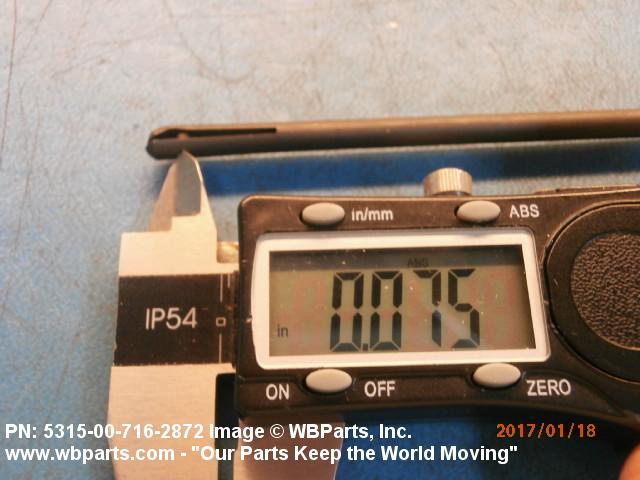

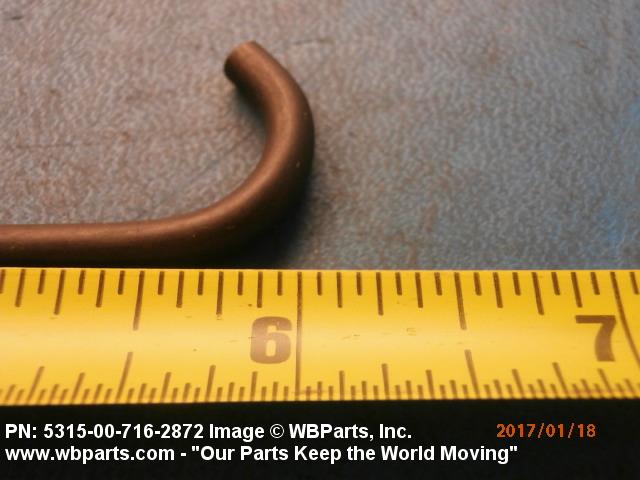

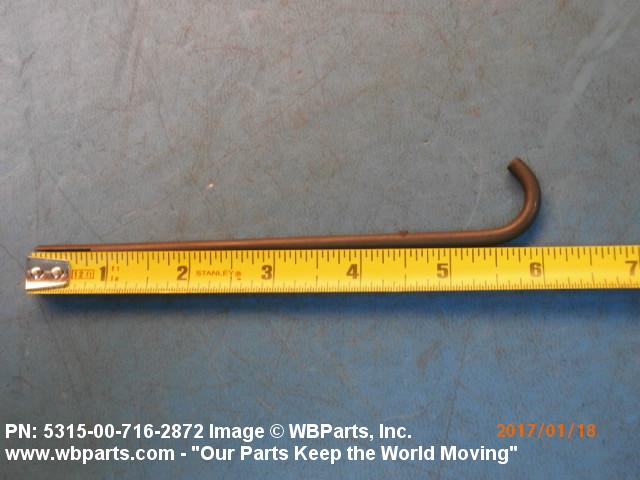

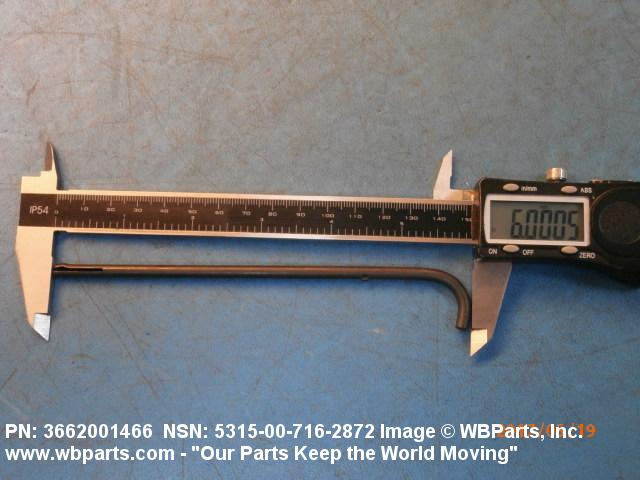

| OVERALL LENGTH | 6.020 INCHES NOMINAL |

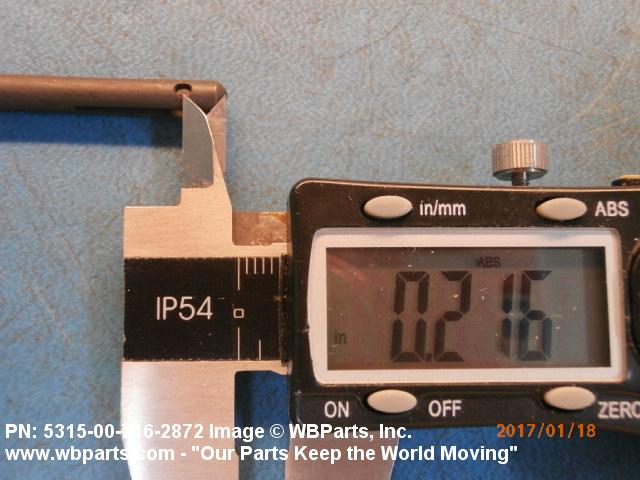

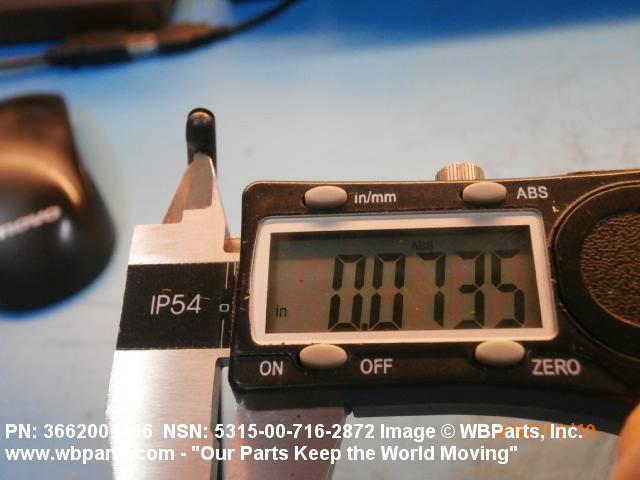

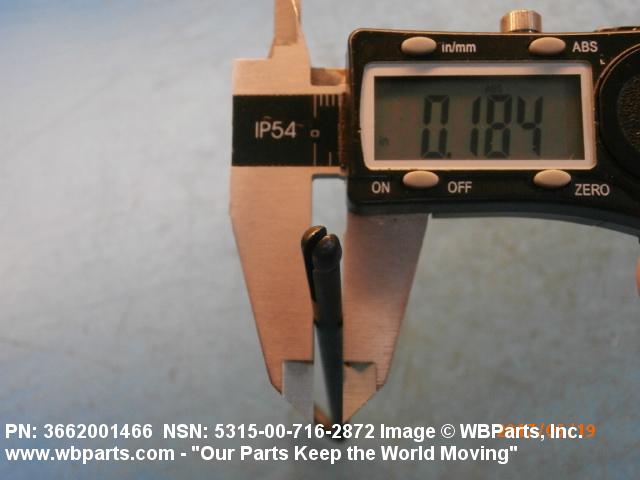

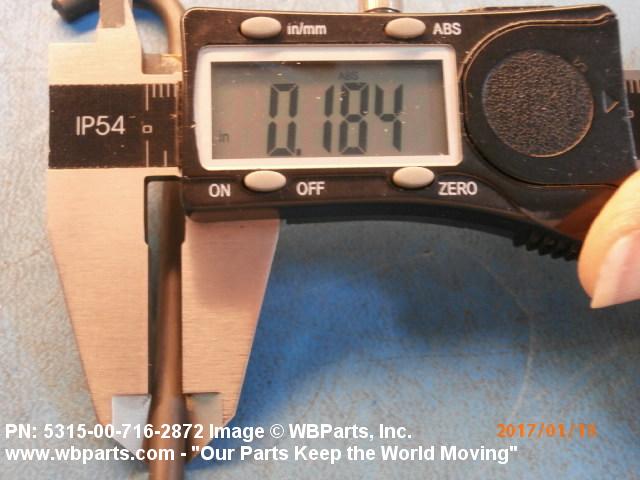

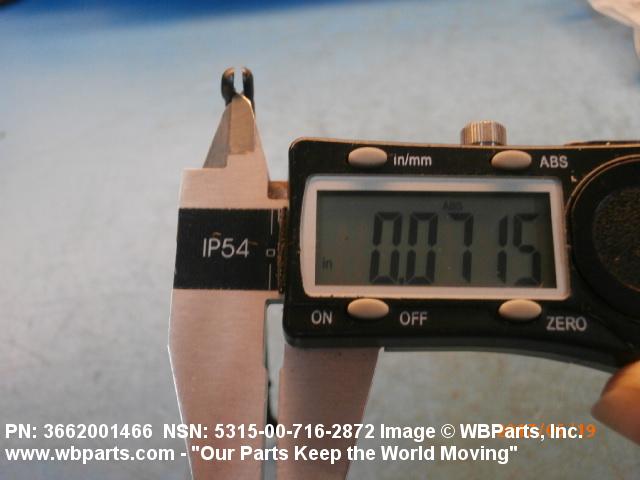

| UNDERCUT DIAMETER | 0.186 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.090 INCHES NOMINAL |
| UNDERCUT RADIUS | 0.050 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.205 INCHES NOMINAL |
| PIN LARGE END DIAMETER | 0.205 INCHES NOMINAL |
| FIRST END STYLE | 5 ROUND |
| FIRST END OUTER RADIUS | 0.110 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | GROOVED END |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.072 INCHES NOMINAL |

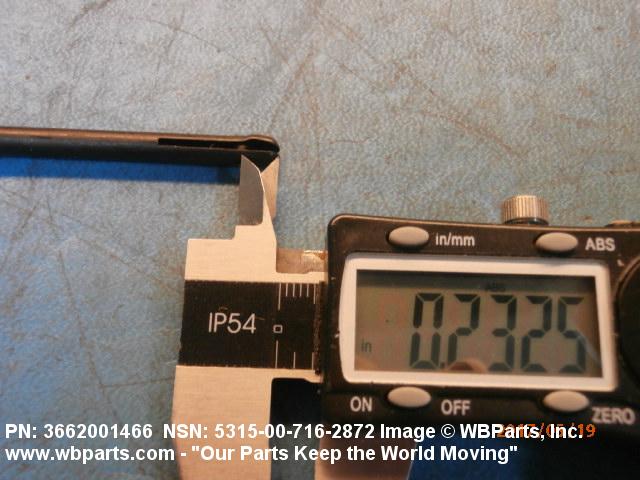

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.230 INCHES NOMINAL |
| SPECIAL FEATURES | HEAT AT 1540-1580 DEG F,OIL QUENCH,TEMPER 1 HR |
| III END ITEM IDENTIFICATION | 1005-00-322-9715 |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 7162872 |
