NSN 5315-00-723-9721 P053651, P053-6-51, 3M39C651
Product Details | HEADED STRAIGHT PIN
5315-00-723-9721 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: P053651, P053-6-51, 3M39C651, 3M39C6-51, 5315-00-723-9721, 00-723-9721, 5315007239721, 007239721
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-723-9721 | 02384 ( PIN, STRAIGHT, HEADED ) |

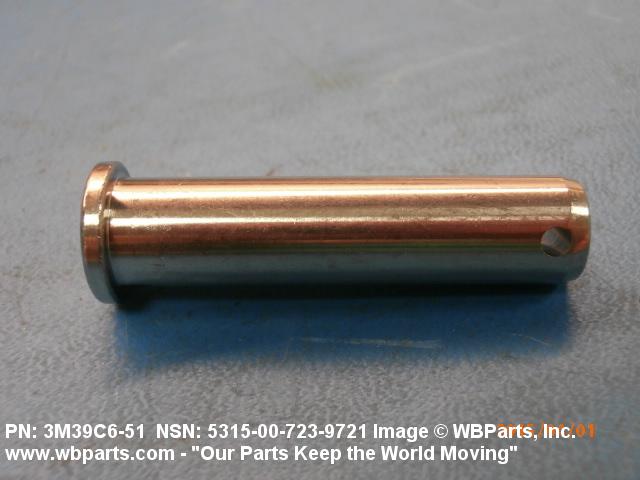

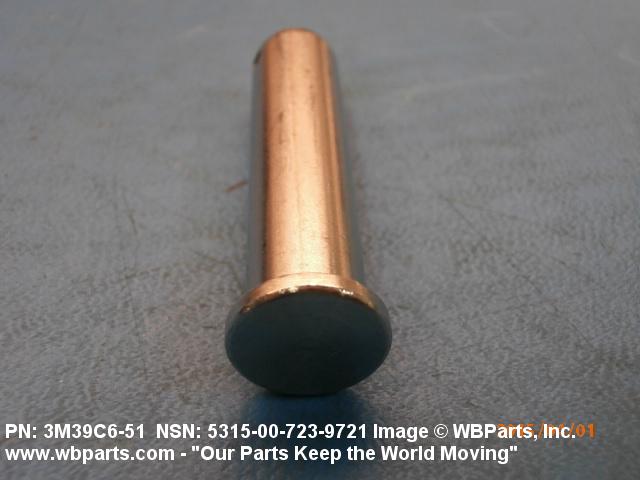

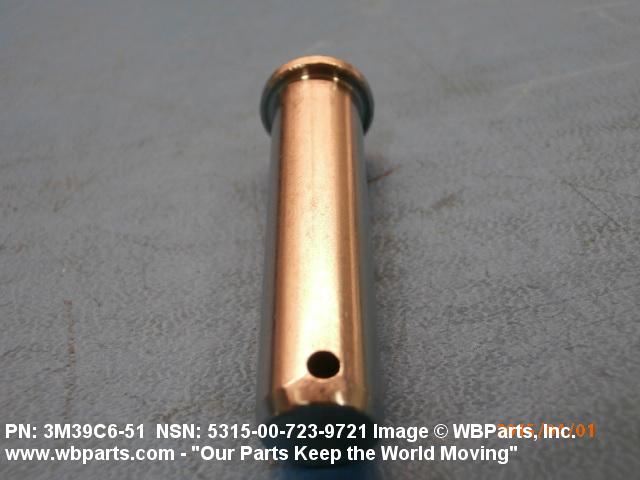

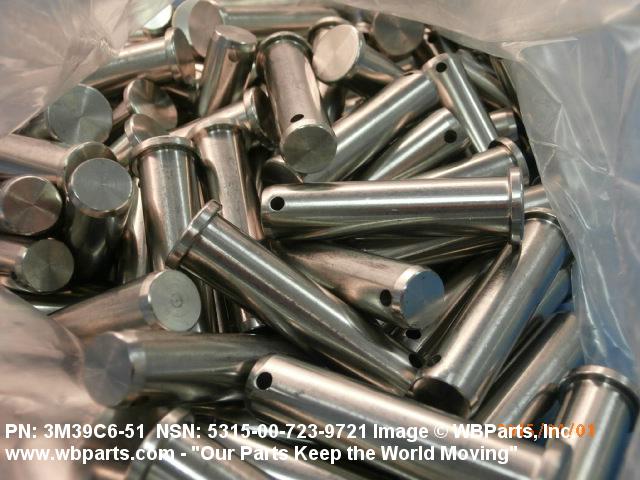

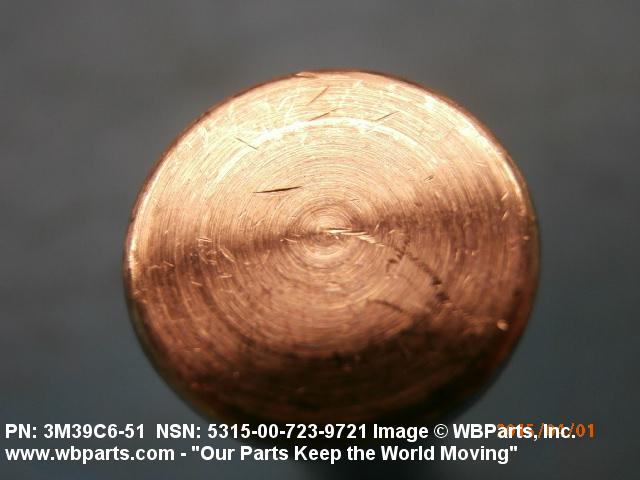

Drawings & Photos | NSN 5315-00-723-9721
Demand History | NSN 5315-00-723-9721
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-723-9721 | 2020-05-133 | 15 | DIBBS |
| 5315-00-723-9721 | 2020-02-57 | 12 | DIBBS |
| 5315-00-723-9721 | 2019-03-78 | 25 | DIBBS |
| 5315-00-723-9721 | 2019-02-55 | 8 | DIBBS |
| 3M39C6-51 | 2014-12-357 | 116 | Australia |
| 3M39C6-51 | 2014-08-232 | 56 | Australia |
| 3M39C6-51 | 2014-08-232 | 56 | United States |
| 3M39C6-51 | 2014-08-232 | 56 | United States |
| 3M39C6-51 | 2014-08-227 | 56 | Australia |
| 3M39C651 | 2014-07-211 | 24 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-723-9721
Related Products | NSN 5315-00-723-9721
Technical Data | NSN 5315-00-723-9721
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | L194 STRAIGHT |

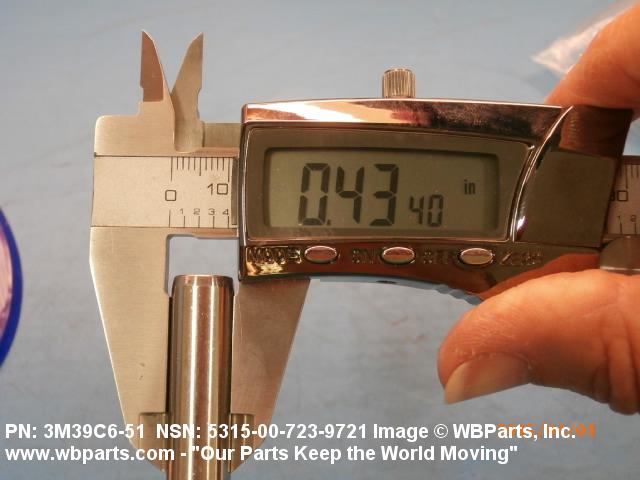

| DIAMETER | 0.438 INCHES NOMINAL |

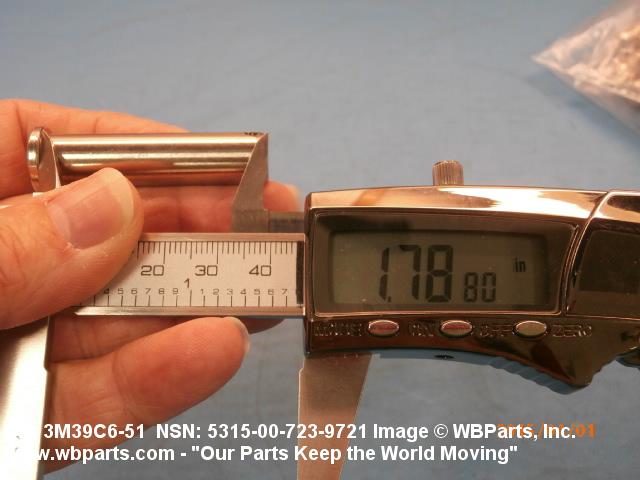

| UNDER HEAD LENGTH | 1.781 INCHES NOMINAL |
| END RADIUS | 0.031 INCHES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.436 INCHES NOMINAL |

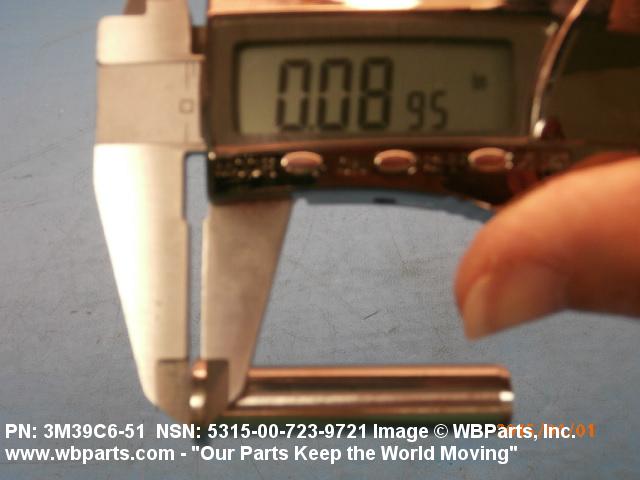

| HEIGHT | 0.093 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

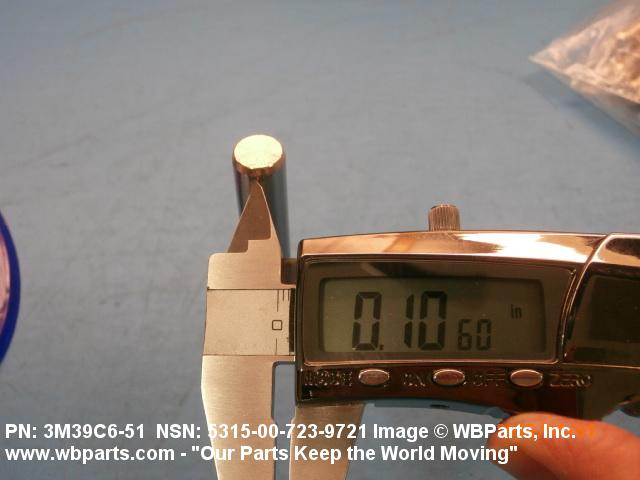

| FIRST HOLE DIAMETER | 0.106 INCHES NOMINAL |

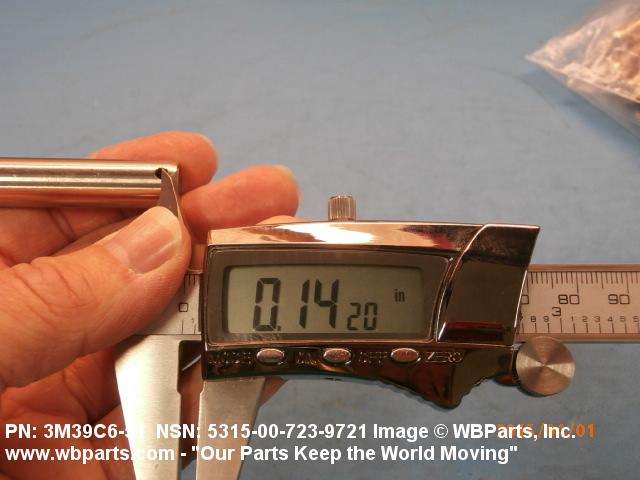

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.140 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-723-9721
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-723-9721
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
