Product Details | HEADED STRAIGHT PIN
5315-00-725-7655 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 39361, 5315-00-725-7655, 00-725-7655, 5315007257655, 007257655
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-725-7655 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-725-7655
Demand History | NSN 5315-00-725-7655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-725-7655 | 2020-09-272 | 10 | US |
| 5315-00-725-7655 | 2018-08-217 | 80 | DIBBS |
| 5315-00-725-7655 | 2018-07-205 | 1 | DIBBS |
| 5315-00-725-7655 | 2018-07-205 | 2 | DIBBS |
| 5315-00-725-7655 | 2010-07-194 | 125 | DIBBS |
| 5315-00-725-7655 | 2010-01-14 | 125 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-725-7655
Related Products | NSN 5315-00-725-7655
Technical Data | NSN 5315-00-725-7655
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,TY 303 SE FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.099 INCHES NOMINAL |
| UNDER HEAD LENGTH | 0.415 INCHES MINIMUM AND 0.425 INCHES MAXIMUM |
| END RADIUS | 0.010 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |

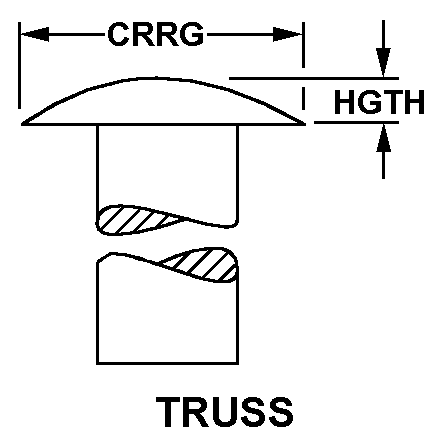

| HEAD STYLE | 54 TRUSS |
| PIN HEAD DIAMETER | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| HEIGHT | 0.020 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 39361 |
