NSN 5315-00-728-0731 MS17985614, MS17985-614, MS17985C614

Product Details | QUICK RELEASE PIN

5315-00-728-0731 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17985614, MS17985-614, MS17985C614, NAS1336A2S14D, SLC6AT14, SLS6AT14, BLC6TA14S, BLC6TA14SM, BLS6TA14S , BLS6TA4SM, LG6CT0614, LG6CT14M, LG6ST1400 , LG6ST14M, 5315-00-728-0731, 00-728-0731, 5315007280731, 007280731

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 FEB 1968	00-728-0731	08323 ( PIN, QUICK RELEASE )

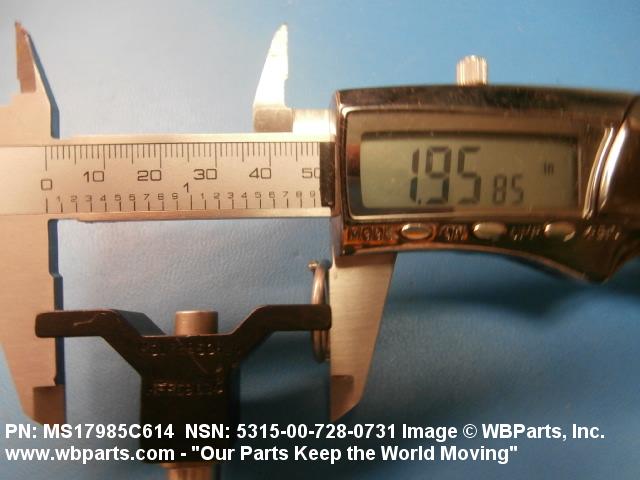

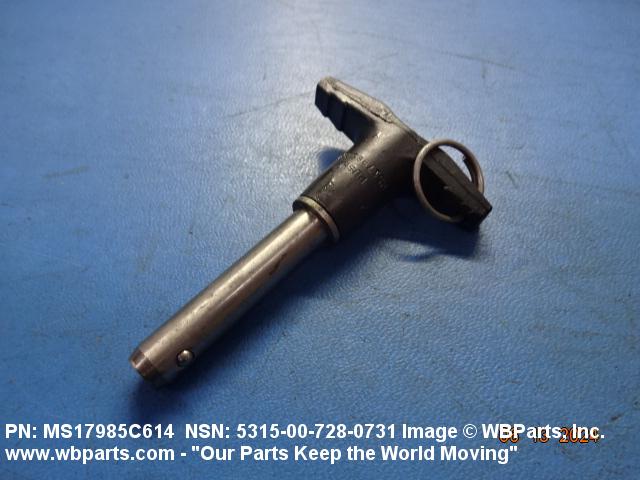

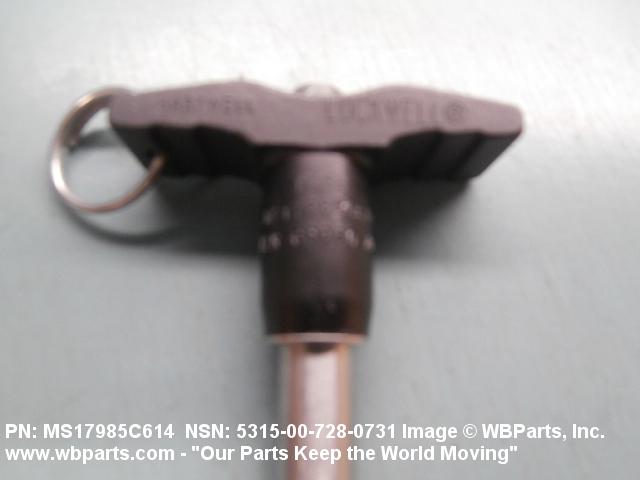

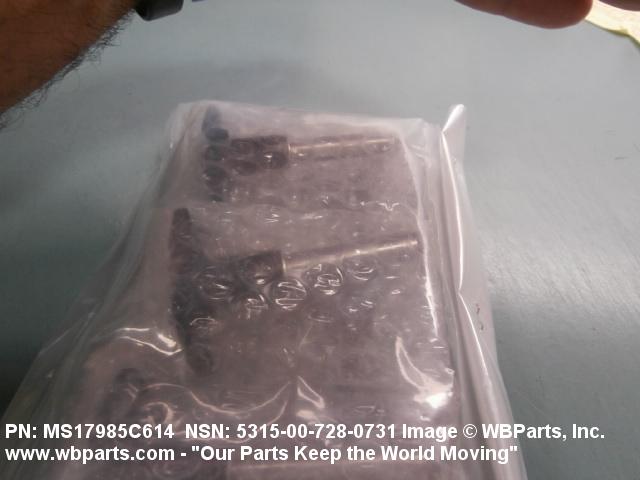

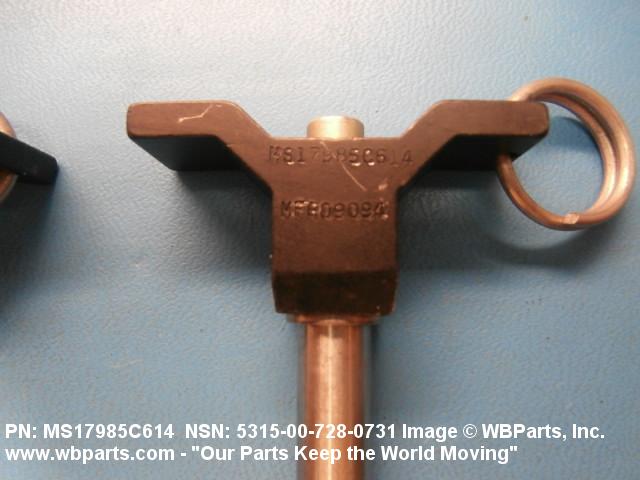

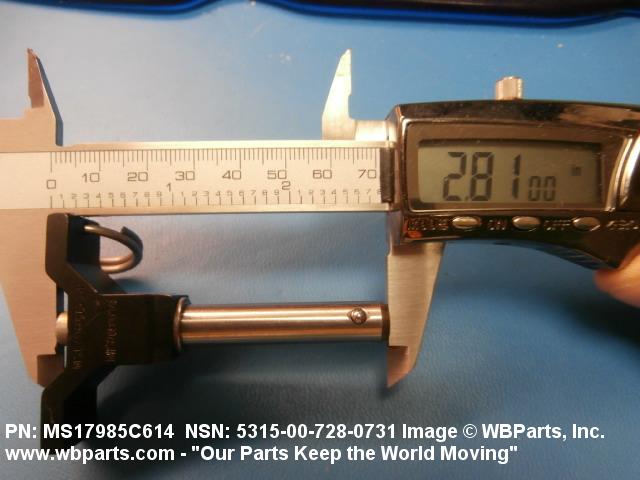

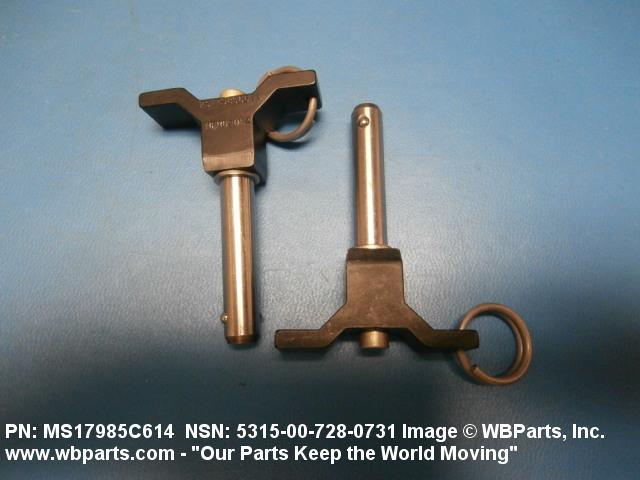

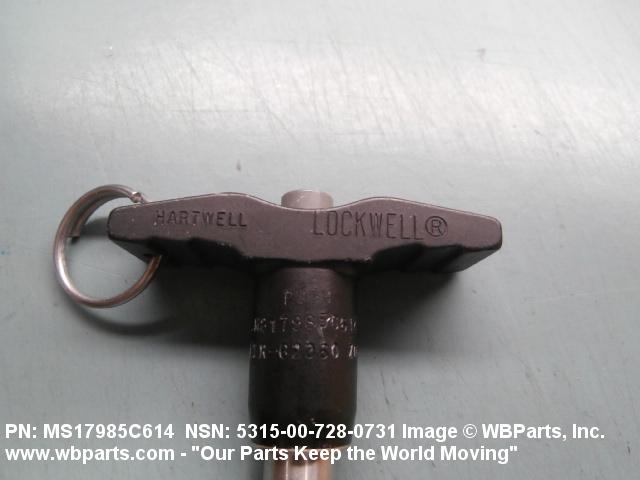

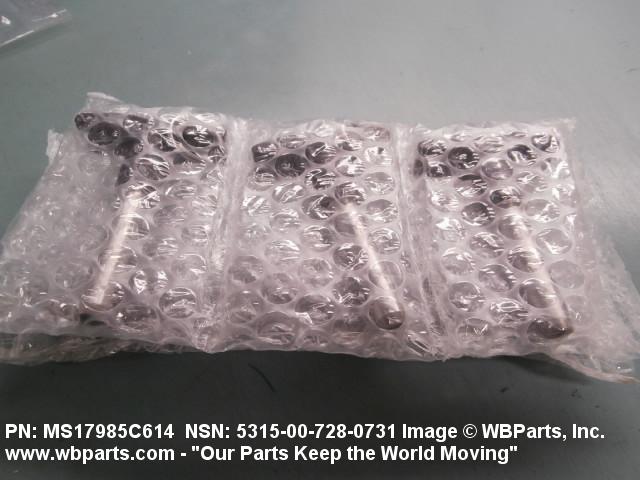

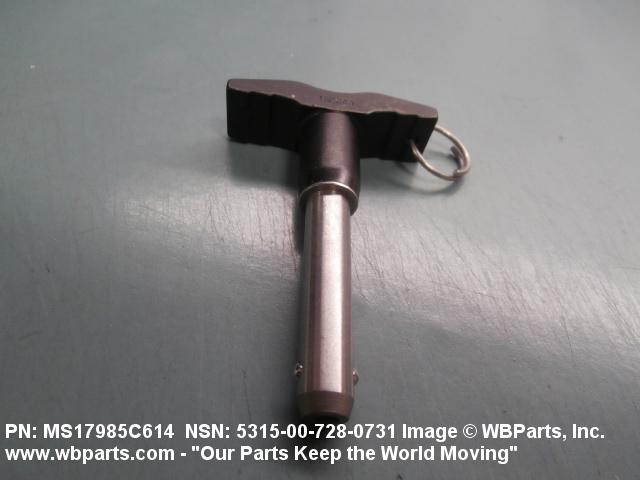

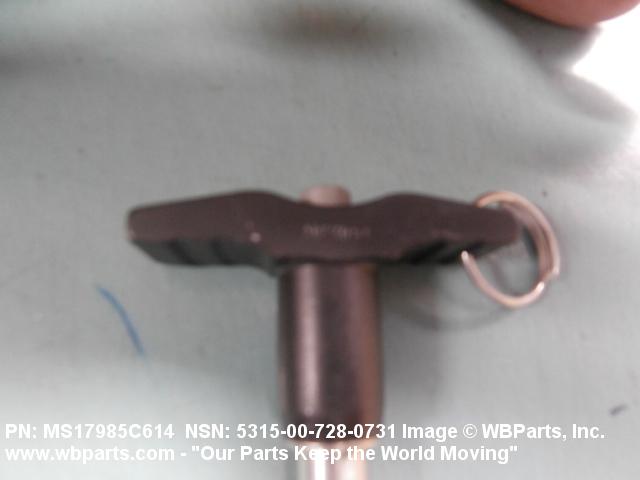

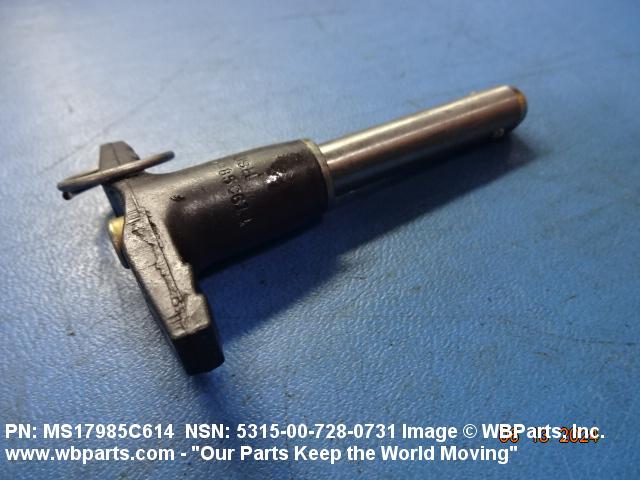

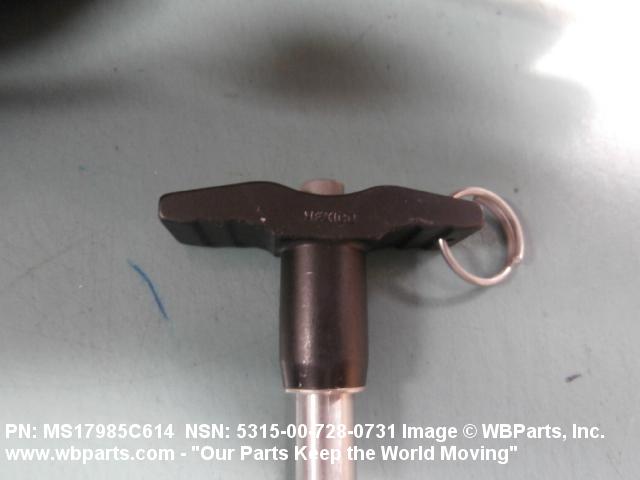

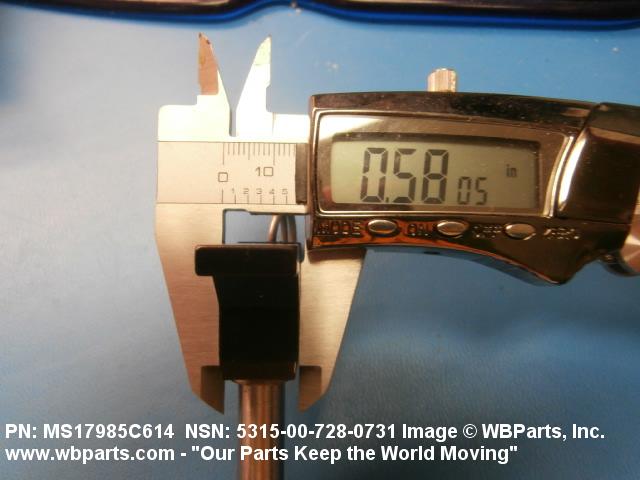

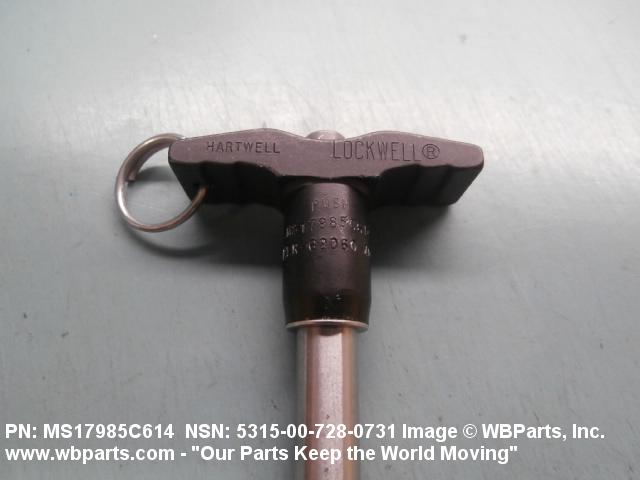

Drawings & Photos | NSN 5315-00-728-0731

Part Number	Request Date	QTY	Origin
5315-00-728-0731	2024-07-191	129	DIBBS
MS17985C614	2024-05-149	4	us
5315-00-728-0731	2024-01-25	129	DIBBS
MS17985C614	2015-10-292	2	United States
MS17985C614	2015-09-272	1	United States
MS17985C614	2014-06-168	6	United States
MS17985C614	2014-02-35	2	US
MS17985C614	2013-10-296	60	United States
MS17985C614	2013-02-37	125	US
MS17985C614	2013-01-08	220	United States
MS17985C614	2012-12-356	220	United States
5315-00-728-0731	2010-10-300	32	United States
MS17985614	2010-06-160	112	US
5315-00-728-0731	2010-01-27	44	DIBBS

Cross Reference | NSN 5315-00-728-0731

Part Number	Cage Code	Manufacturer
BLC6TA14S	84256	AVIBANK MFG., INC.
BLC6TA14SM	84256	AVIBANK MFG., INC.
BLS6TA14S	84256	AVIBANK MFG., INC.
BLS6TA4SM	84256	AVIBANK MFG., INC.
LG6CT0614	62060	SOUTHCO INC.
LG6CT0614	83014	HARTWELL CORPORATION
LG6CT0614	SV287	PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V.
LG6CT14M	62060	SOUTHCO INC.
LG6CT14M	83014	HARTWELL CORPORATION
LG6CT14M	SV287	PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V.
LG6ST1400	62060	SOUTHCO INC.
LG6ST1400	83014	HARTWELL CORPORATION
LG6ST1400	SV287	PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V.
LG6ST14M	62060	SOUTHCO INC.
LG6ST14M	83014	HARTWELL CORPORATION
LG6ST14M	SV287	PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V.
MS17985-614	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17985-614	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17985C614	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17985C614	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1336A2S14D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
SLC6AT14	16258	SPACELOK INC.
SLS6AT14	16258	SPACELOK INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-728-0731

Compare

Related Products | NSN 5315-00-728-0731

5315-00-728-0799, 5315-00-728-0802, 5315-00-728-0803, 5315-00-728-1363, 5315-00-728-1366

Technical Data | NSN 5315-00-728-0731

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT	PASSIVATE SHANK PASSIVATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING	40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE
STYLE DESIGNATOR	Q241 T HANDLE
HANDLE LENGTH	1.935 INCHES MINIMUM AND 2.065 INCHES MAXIMUM

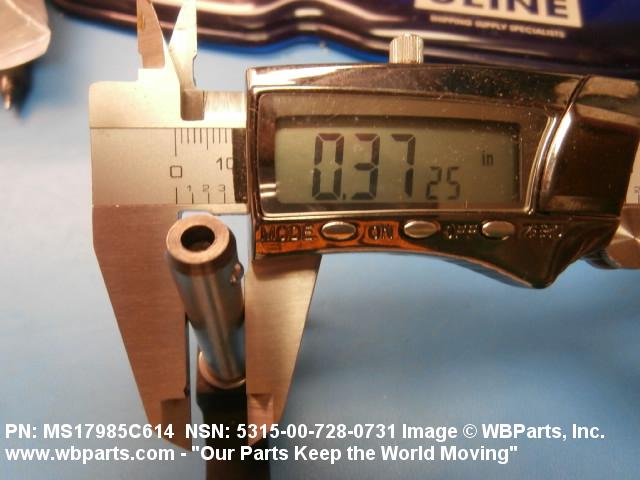

SHANK DIAMETER	0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM

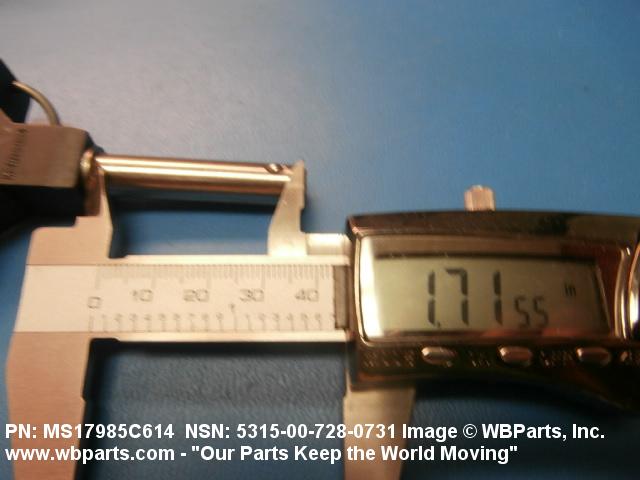

GRIP LENGTH	1.400 INCHES MINIMUM AND 1.420 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE	1.450 INCHES MAXIMUM
DETENT TO TAPERED END DISTANCE	0.365 INCHES MAXIMUM
ACTUATION TYPE	PUSH
ACTUATION METHOD	PUSH BUTTON
DETENT QUANTITY	2
PIN ATTACHMENT TYPE	HOOK OR RING

Restrictions/Controls & Freight Information | NSN 5315-00-728-0731

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-728-0731

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
