NSN 5315-00-728-9398 MS2006610, MS20066-10, 00K220
Product Details | MACHINE KEY
5315-00-728-9398 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: MS2006610, MS20066-10, 00K220, 5315-00-728-9398, 00-728-9398, 5315007289398, 007289398
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 DEC 1968 | 00-728-9398 | 02378 ( KEY, MACHINE ) |

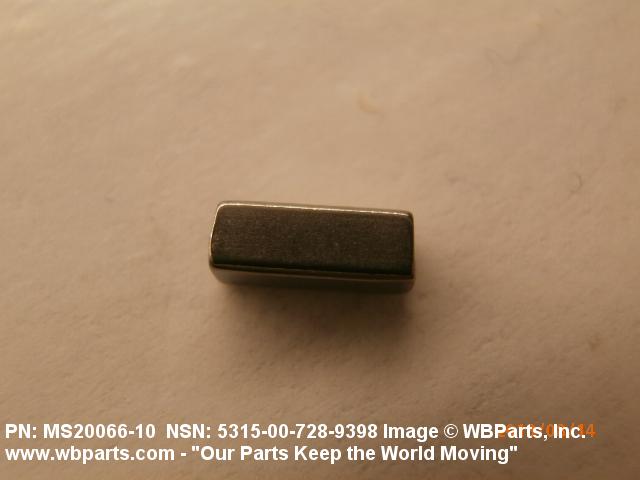

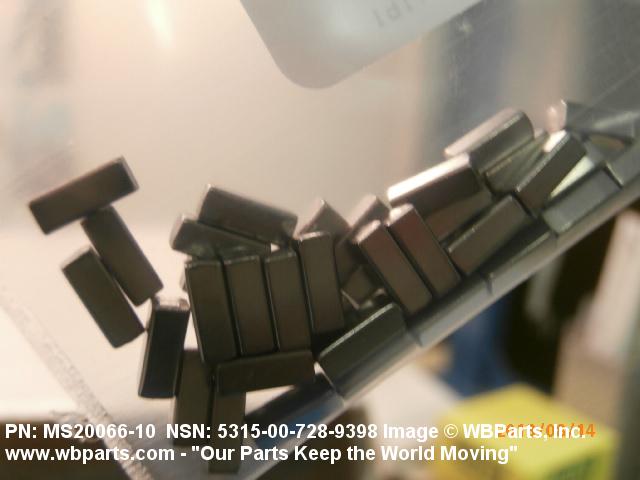

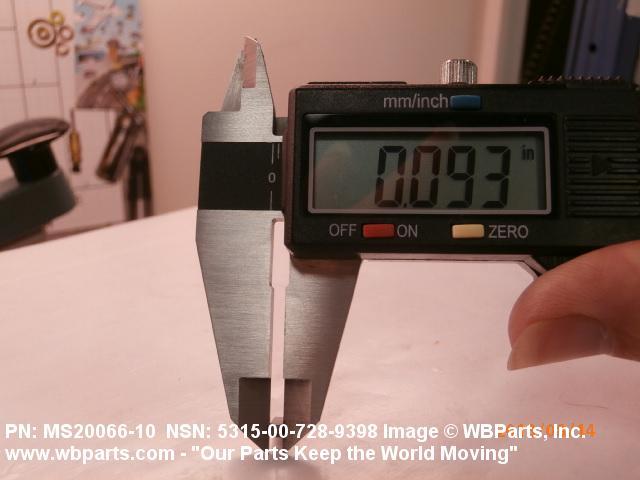

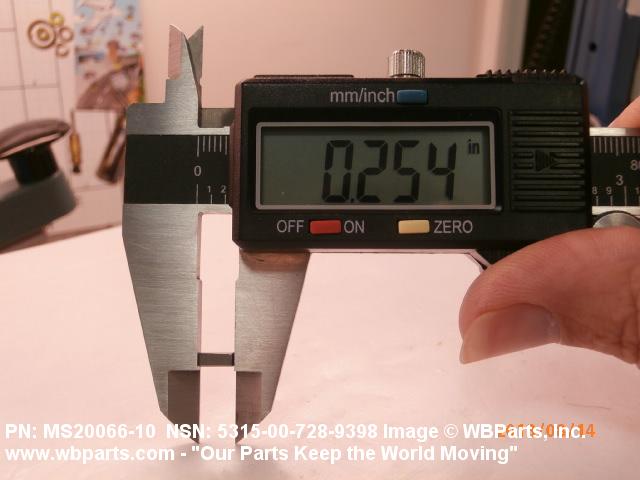

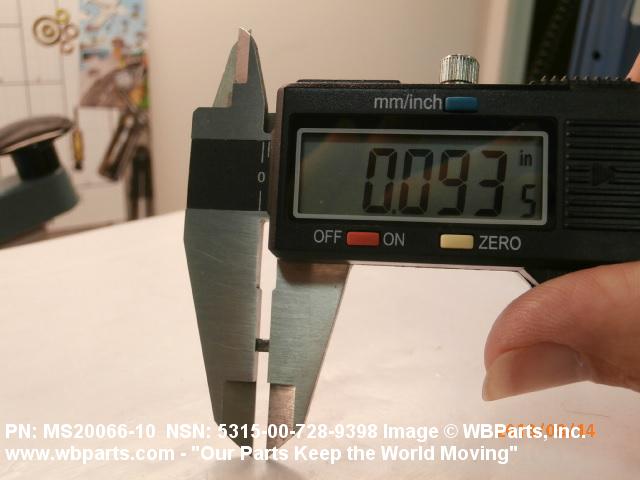

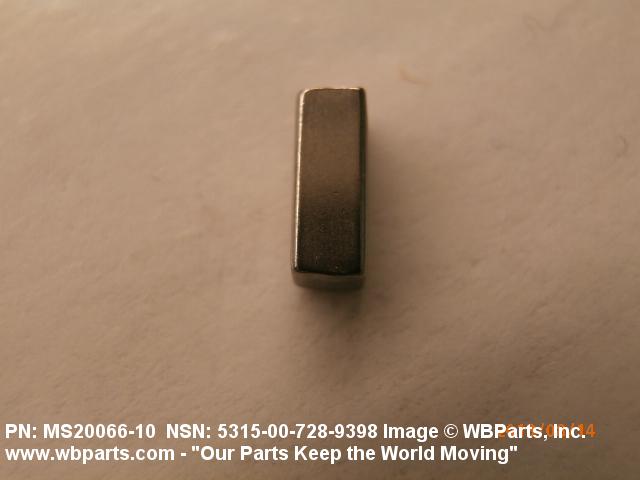

Drawings & Photos | NSN 5315-00-728-9398
Demand History | NSN 5315-00-728-9398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2006610 | 2017-12-355 | 50 | United States |
| MS2006610 | 2017-12-355 | 100 | United States |
| MS2006610 | 2017-12-355 | 500 | United States |
| MS2006610 | 2014-09-265 | 1 | US |
| 5315-00-728-9398 | 2013-07-210 | 40 | United States |
| MS2006610 | 2011-03-68 | 1 | US |
| MS2006610 | 2010-08-237 | 80 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-728-9398
Related Products | NSN 5315-00-728-9398
Technical Data | NSN 5315-00-728-9398
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 403 OR STEEL COMP 405 OR STEEL COMP 410 OR STEEL COMP 414 OR STEEL COMP 416 OR STEEL COMP 416SE OR STEEL COMP 420 OR STEEL COMP 430 OR STEEL COMP 431 OR STEEL COMP 440A OR STEEL COMP 440C OR STEEL COMP 446 OR STEEL COMP 440B OR STEEL COMP 440F OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 75000 SINGLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | B15 PLAIN |
| OVERALL LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.0937 INCHES MINIMUM AND 0.0948 INCHES MAXIMUM |
| OVERALL WIDTH | 0.0937 INCHES MINIMUM AND 0.0948 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND A STYLE AND A GRADE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20066-10 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 00K220 |
Restrictions/Controls & Freight Information | NSN 5315-00-728-9398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-728-9398
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
