NSN 5315-00-806-0213 MS171475, MS9047047, MS9047-047
Product Details | SPRING PIN
5315-00-806-0213 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS171475, MS9047047, MS9047-047, 530180781125, 53-018-078-1125, 5315-00-806-0213, 00-806-0213, 5315008060213, 008060213
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-806-0213 | 02389 ( PIN, SPRING ) |

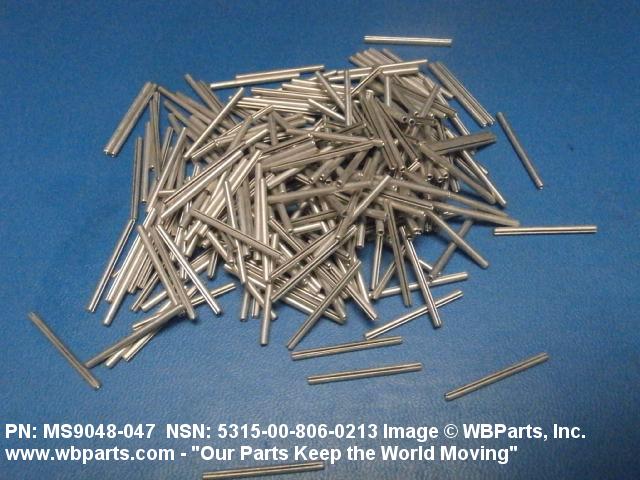

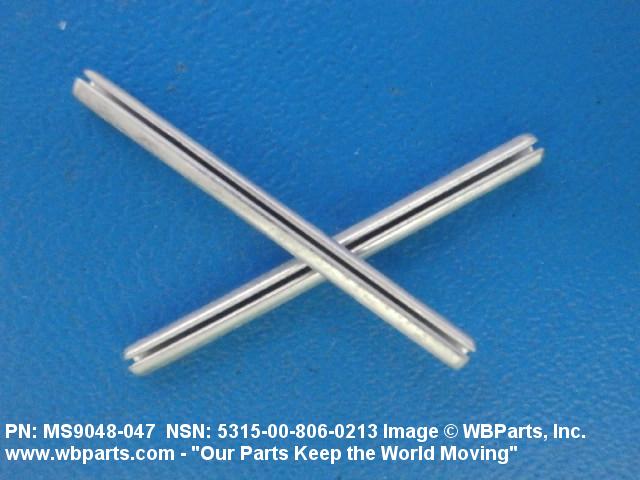

Drawings & Photos | NSN 5315-00-806-0213
Demand History | NSN 5315-00-806-0213
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-806-0213 | 2024-10-290 | 87 | DIBBS |
| 5315-00-806-0213 | 2024-05-141 | 68 | DIBBS |
| 5315-00-806-0213 | 2024-05-133 | 68 | DIBBS |
| 5315-00-806-0213 | 2024-03-88 | 25 | DIBBS |
| 5315-00-806-0213 | 2019-10-275 | 50 | DIBBS |
| 5315-00-806-0213 | 2018-09-250 | 100 | US |
| 5315-00-806-0213 | 2017-05-141 | 149 | DIBBS |
| 5315-00-806-0213 | 2017-04-114 | 139 | DIBBS |
| 5315-00-806-0213 | 2013-02-45 | 938 | DIBBS |
| MS9047047 | 2009-06-168 | 100 | BE |
Cross Reference | NSN 5315-00-806-0213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53-018-078-1125 | 72962 | HARVARD INDUSTRIES INC |
| 5315008060213 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5315PL0921568 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| MS171475 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS9047-047 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-806-0213
Technical Data | NSN 5315-00-806-0213
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5506 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 1.105 INCHES MINIMUM AND 1.145 INCHES MAXIMUM |

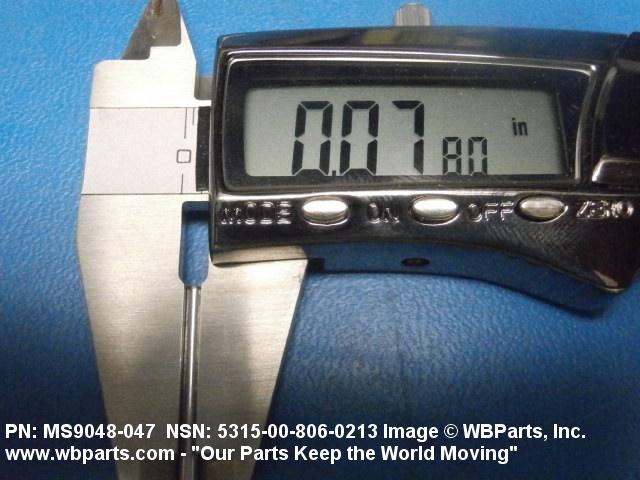

| DIAMETER | 0.078 INCHES NOMINAL |

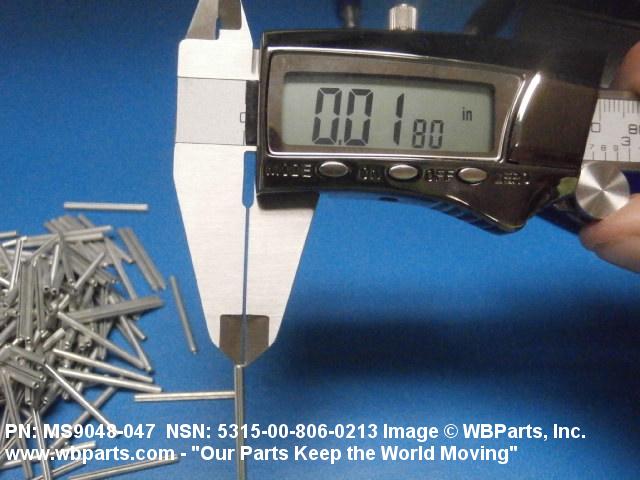

| MATERIAL THICKNESS | 0.018 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS171475 |
Restrictions/Controls & Freight Information | NSN 5315-00-806-0213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
