NSN 5315-00-811-9102 MS20392111, MS20392-1-11, MS203921C11
Product Details | HEADED STRAIGHT PIN

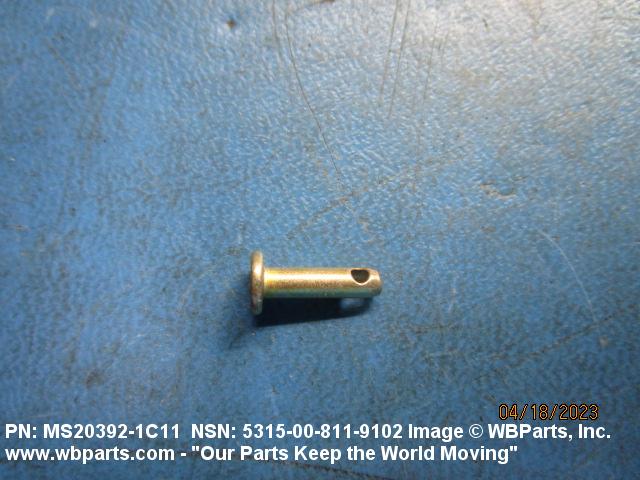

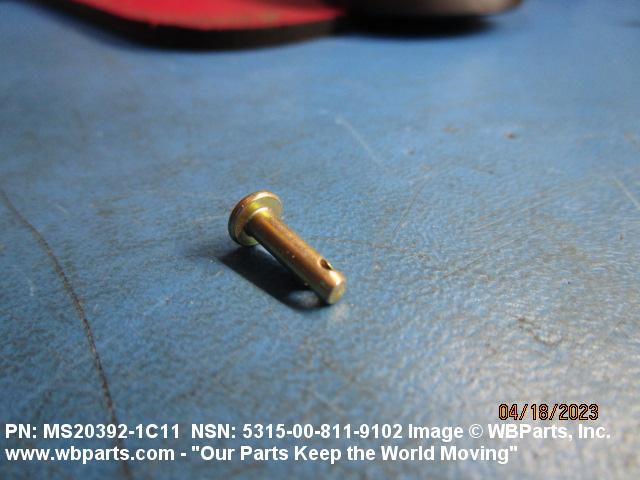

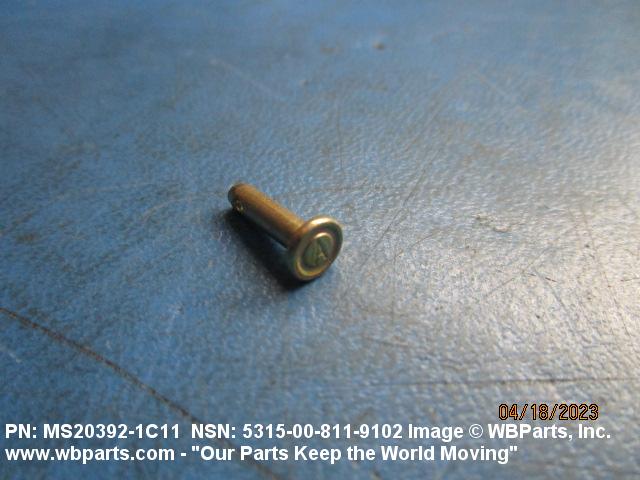

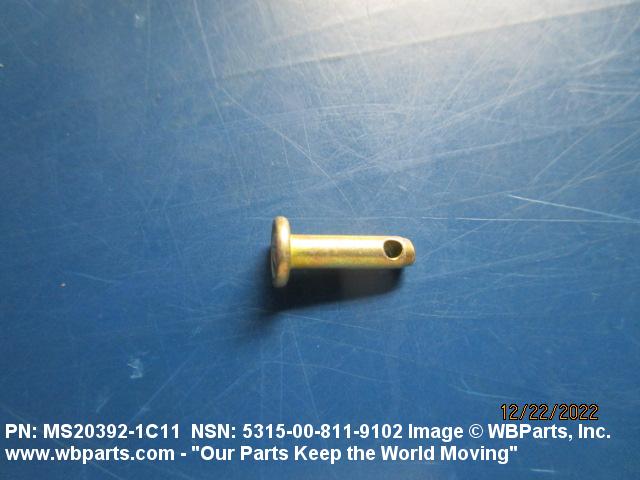

5315-00-811-9102 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS20392111, MS20392-1-11, MS203921C11, MS20392-1C11, AN39211, AN392-11, MILP5673, 2311833, 5315-00-811-9102, 00-811-9102, 5315008119102, 008119102
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-811-9102 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-811-9102
Demand History | NSN 5315-00-811-9102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20392-1C11 | 2026-01-26 | 251 | DIBBS |
| 5315-00-811-9102 | 2025-06-165 | 15 | AE |
| 5315-00-811-9102 | 2025-06-165 | 15 | AE |
| MS20392-1C11 | 2025-01-28 | 827 | DIBBS |
| MS20392-1C11 | 2024-07-213 | 455 | DIBBS |
| MS20392-1C11 | 2024-06-182 | 856 | DIBBS |
| MS20392-1C11 | 2024-06-154 | 455 | DIBBS |
| MS20392-1C11 | 2024-05-144 | 494 | DIBBS |
| MS20392-1C11 | 2024-04-95 | 320 | DIBBS |
| MS20392-1C11 | 2024-03-88 | 621 | DIBBS |
| MS20392-1C11 | 2023-10-304 | 1543 | DIBBS |
| MS20392-1C11 | 2023-04-114 | 525 | DIBBS |
| AN39211 | 2021-07-193 | 3 | United States |
| MS203921C11 | 2018-12-355 | 100 | United States |
| 5315-00-811-9102 | 2017-08-220 | 1 | Malaysia |
| 5315-00-811-9102 | 2009-09-260 | 11137 | DIBBS |
| 5315-00-811-9102 | 2008-12-350 | 2387 | DIBBS |
| 5315-00-811-9102 | 2008-11-310 | 1633 | DIBBS |
Cross Reference | NSN 5315-00-811-9102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2311833 | 001JK | EMBRAER S/A |
| 2311833 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| AN392-11 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILP5673 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20392-1-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20392-1C11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-811-9102
Technical Data | NSN 5315-00-811-9102
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 1840 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES MAXIMUM |

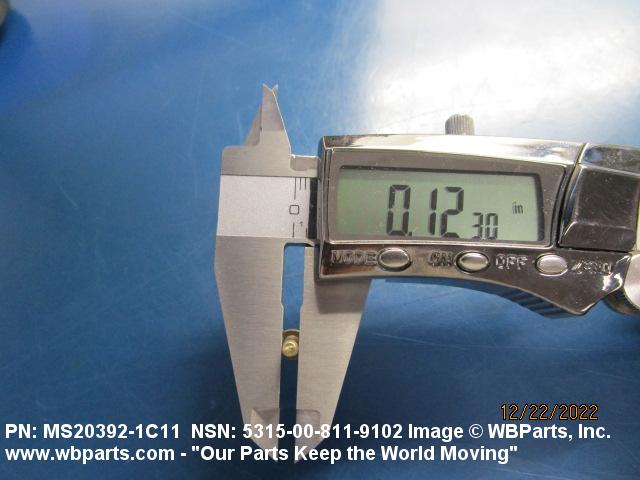

| DIAMETER | 0.184 INCHES MINIMUM AND 0.186 INCHES MAXIMUM |

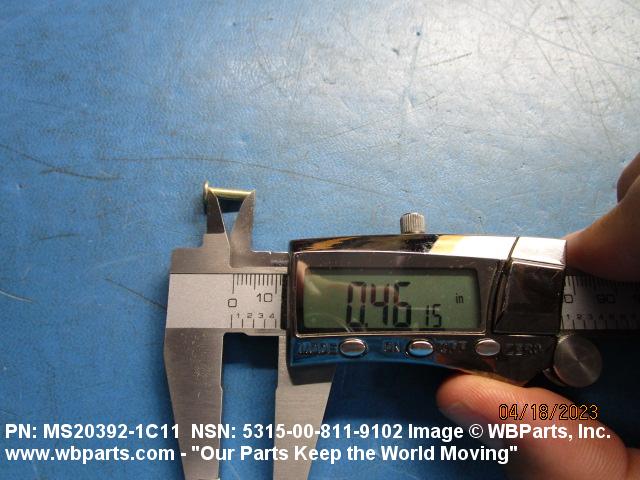

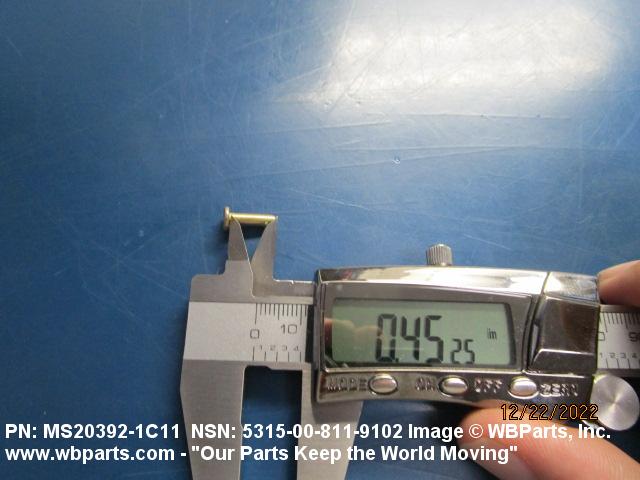

| UNDER HEAD LENGTH | 0.460 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 14.5 DEGREES MINIMUM AND 15.5 DEGREES MAXIMUM |
| HEAD STYLE | 34 PAN NO. 2 |

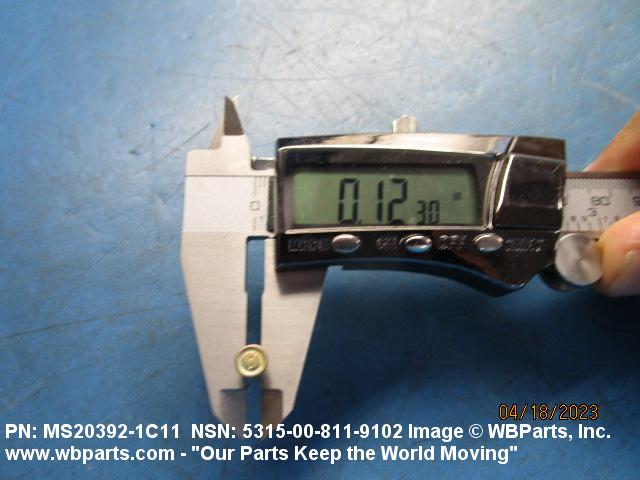

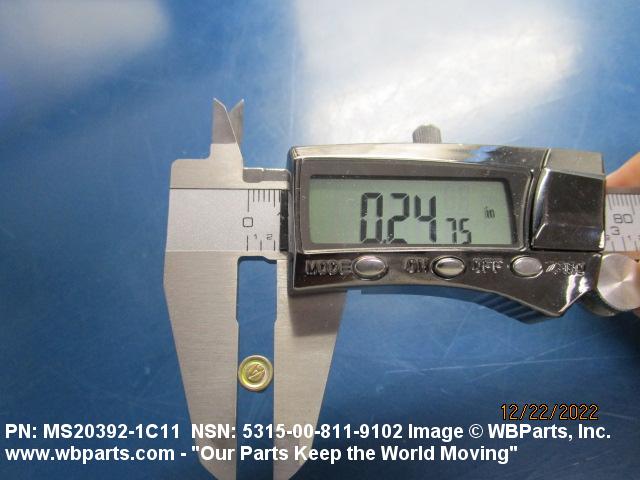

| PIN HEAD DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |

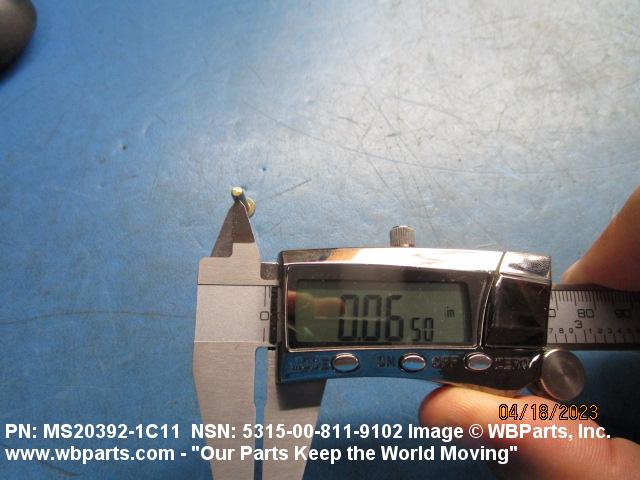

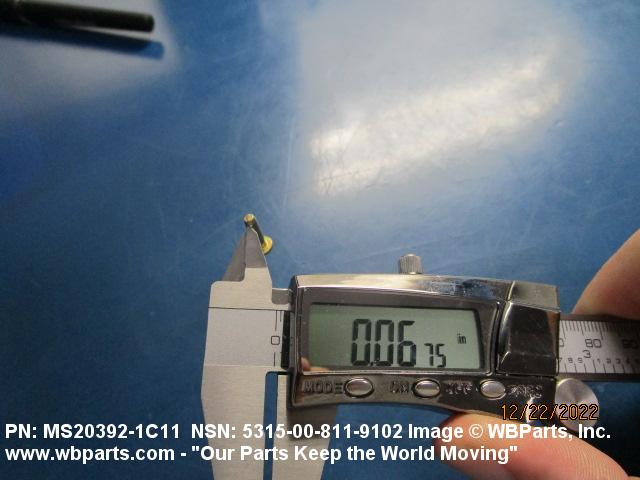

| HEIGHT | 0.030 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.091 INCHES NOMINAL |
| SPECIAL FEATURES | SHANK END MAY HAVE EITHER A CHAMFER OR RADIUS AT THE OPTION OF THE VENDOR |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-1C11 |
Restrictions/Controls & Freight Information | NSN 5315-00-811-9102
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
