NSN 5315-00-812-3766 MS203922C15, MS20392-2C15, SR220

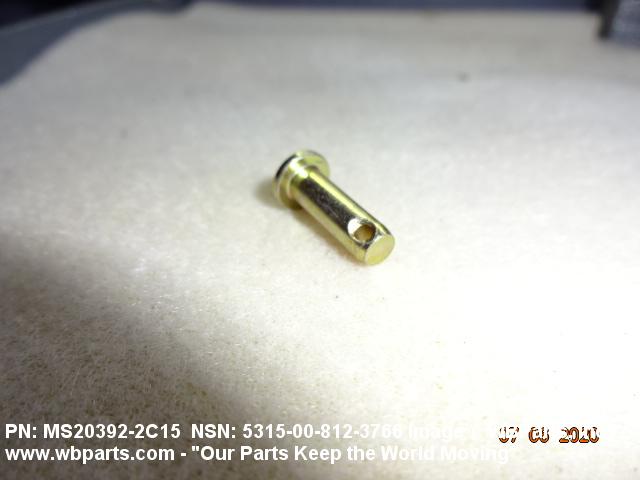

Product Details | HEADED STRAIGHT PIN

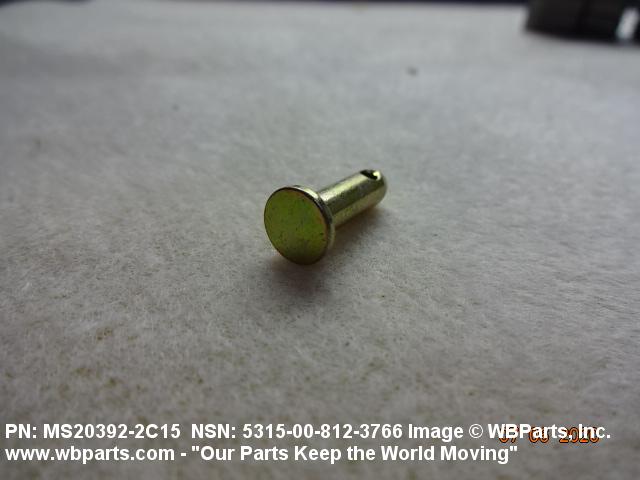

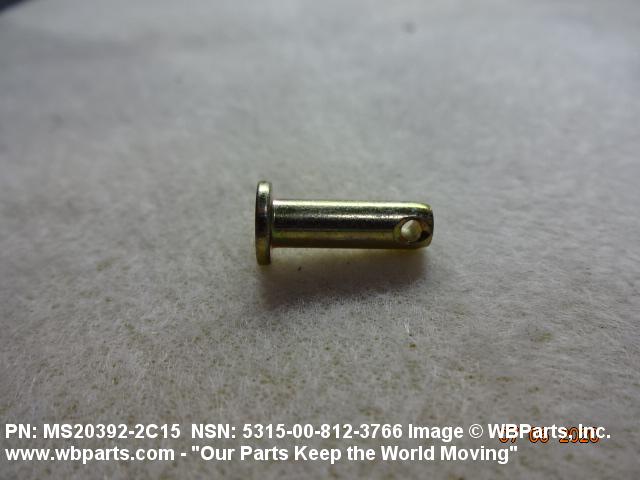

5315-00-812-3766 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203922C15, MS20392-2C15, SR220 , C3156 , 53-39252-17, 6002 , 757 231, 757231, 9197082, 2310128, 2940253, 294025-3, 39789 , 424 176, 424176, 5315-00-812-3766, 00-812-3766, 5315008123766, 008123766, 533925217
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-812-3766 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-812-3766
Demand History | NSN 5315-00-812-3766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-812-3766 | 2025-09-268 | 4 | United States |
| MS203922C15 | 2024-06-171 | 2 | US |
| MS203922C15 | 2023-12-341 | 1 | FR |
| 5315-00-812-3766 | 2020-12-363 | 3 | US |
| MS20392-2C15 | 2020-02-57 | 2 | US |
| MS203922C15 | 2020-01-06 | 50 | United States |
| MS203922C15 | 2019-04-119 | 500 | United States |
| MS203922C15 | 2019-03-88 | 50 | United States |
| 5315-00-812-3766 | 2019-01-31 | 6283 | DIBBS |
| 5315-00-812-3766 | 2018-08-228 | 9990 | DIBBS |
| 5315-00-812-3766 | 2018-08-220 | 16 | us |
| 5315-00-812-3766 | 2018-02-46 | 10000 | DIBBS |
| 5315-00-812-3766 | 2018-01-08 | 2895 | DIBBS |
| 5315-00-812-3766 | 2017-12-339 | 4120 | DIBBS |
| 5315-00-812-3766 | 2017-09-247 | 2974 | DIBBS |
| 5315-00-812-3766 | 2016-02-48 | 10 | Malaysia |
| 5315-00-812-3766 | 2015-07-194 | 5685 | DIBBS |
| MS203922C15 | 2013-11-316 | 50 | China |
| MS203922C15 | 2013-03-66 | 30 | United States |
| MS203922C15 | 2013-02-51 | 2 | us |
| MS203922C15 | 2013-02-51 | 2 | us |
| 5315008123766 | 2012-11-311 | 30 | Singapore |
| MS20392-2C15 | 2012-11-310 | 50 | |
| 6002 | 2011-12-361 | 4 | United States |
| 5315-00-812-3766 | 2011-10-287 | 7814 | DIBBS |
| 5315-00-812-3766 | 2011-08-224 | 5314 | DIBBS |
| 5315-00-812-3766 | 2011-03-89 | 30 | UK |
| 6002 | 2010-02-54 | 27 | us |
| 5315-00-812-3766 | 2009-11-323 | 5213 | DIBBS |
| MS203922C15 | 2009-08-240 | 3 | United States |
| 6002 | 2009-08-219 | 5 | Brazil |
| 5315-00-812-3766 | 2008-11-310 | 26 | KP |
Cross Reference | NSN 5315-00-812-3766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2310128 | 001JK | EMBRAER S/A |
| 2310128 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 294025-3 | 71379 | CESSNA AIRCRAFT COMPANY |
| 424 176 | 77294 | PIPER AIRCRAFT INC. |
| 53-39252-17 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 757 231 | 77294 | PIPER AIRCRAFT INC. |
| MS20392-2C15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-812-3766
Related Products | NSN 5315-00-812-3766
Technical Data | NSN 5315-00-812-3766
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 4140 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES MINIMUM |

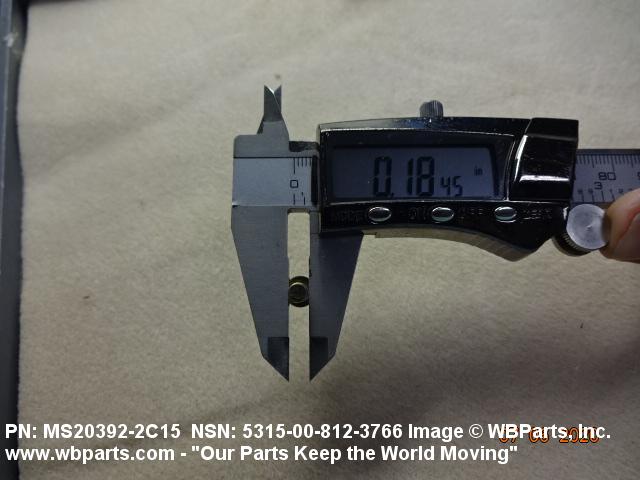

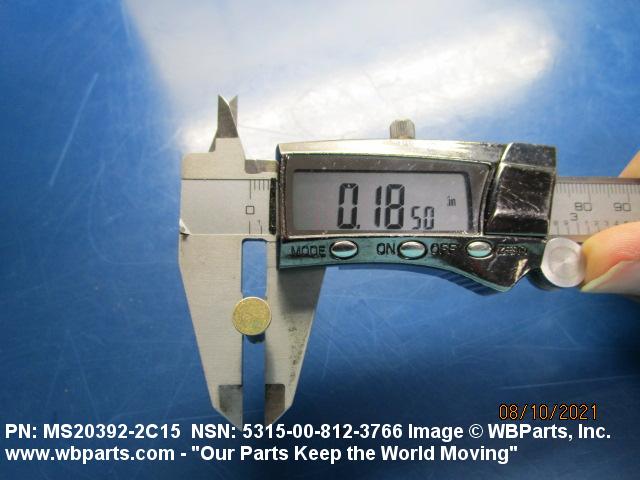

| DIAMETER | 0.184 INCHES MINIMUM AND 0.186 INCHES MAXIMUM |

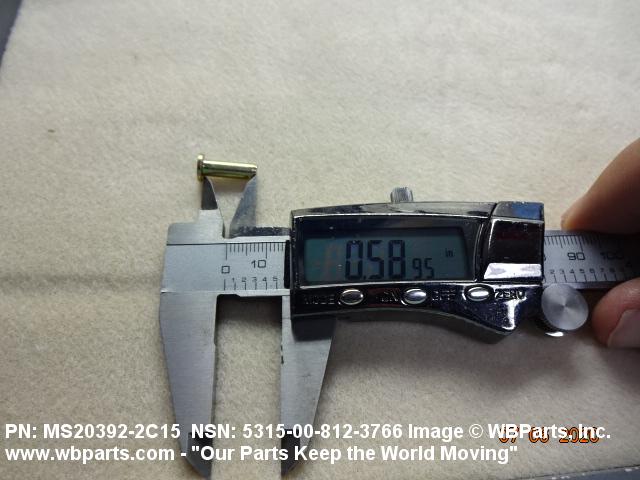

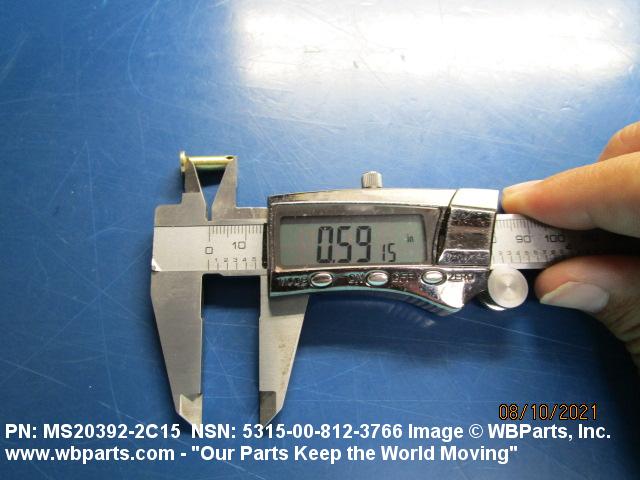

| UNDER HEAD LENGTH | 0.585 INCHES MINIMUM AND 0.605 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 14.5 DEGREES MINIMUM AND 15.5 DEGREES MAXIMUM |
| HEAD STYLE | 34 PAN NO. 2 |

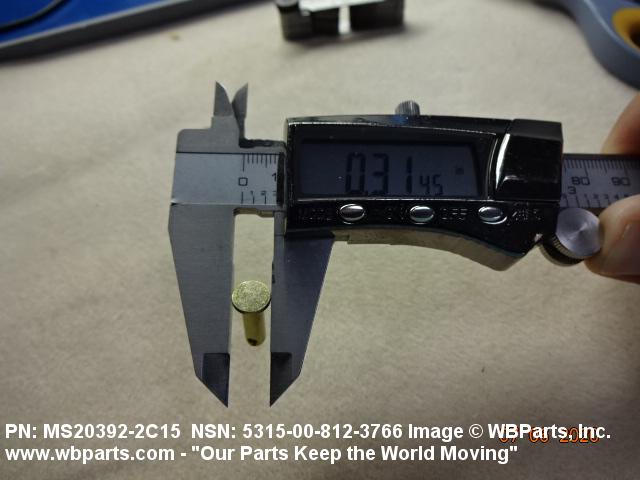

| PIN HEAD DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| HEIGHT | 0.030 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

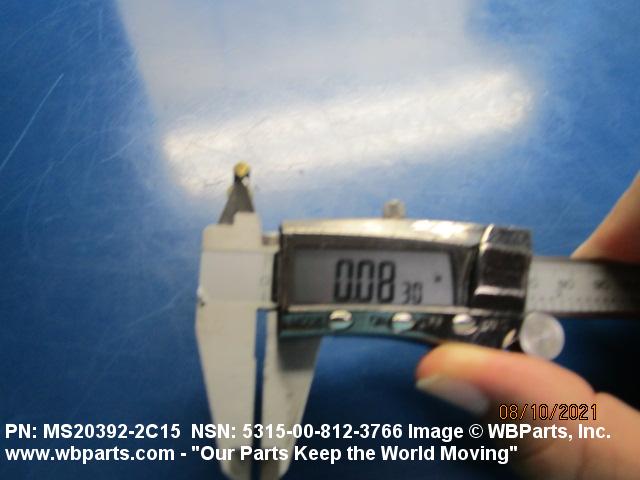

| FIRST HOLE DIAMETER | 0.066 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |

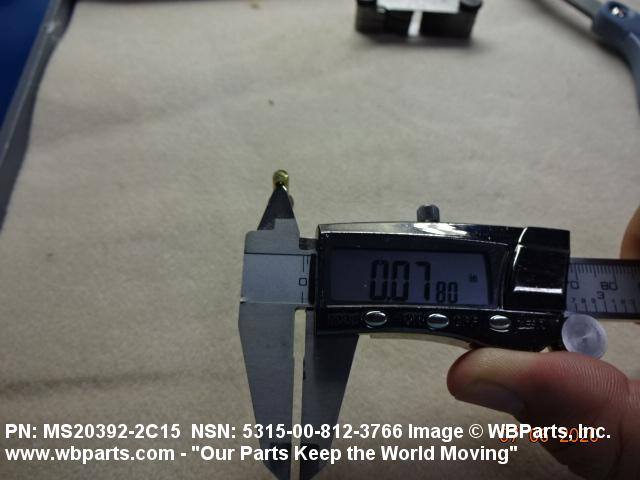

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.088 INCHES NOMINAL |
