NSN 5315-00-814-2089 2815949501, 2815949-501, 67B4528201
Product Details | HEADED STRAIGHT PIN
5315-00-814-2089 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 2815949501, 2815949-501, 67B4528201, 67B45282-01, 67B528201, 67B5282-01, 5315-00-814-2089, 00-814-2089, 5315008142089, 008142089
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 APR 1968 | 00-814-2089 | 02384 ( PIN, STRAIGHT, HEADED ) |

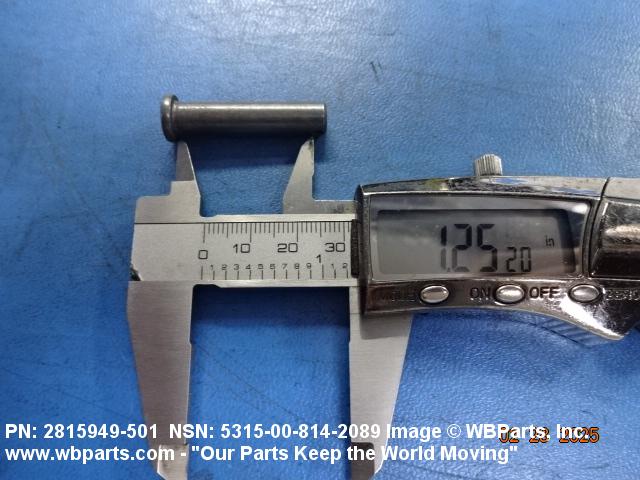

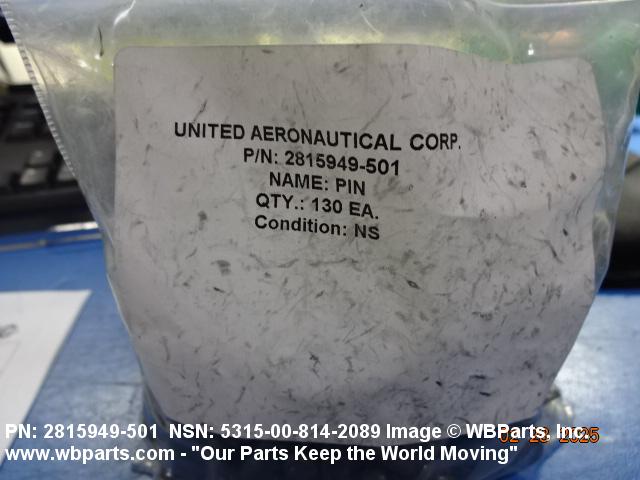

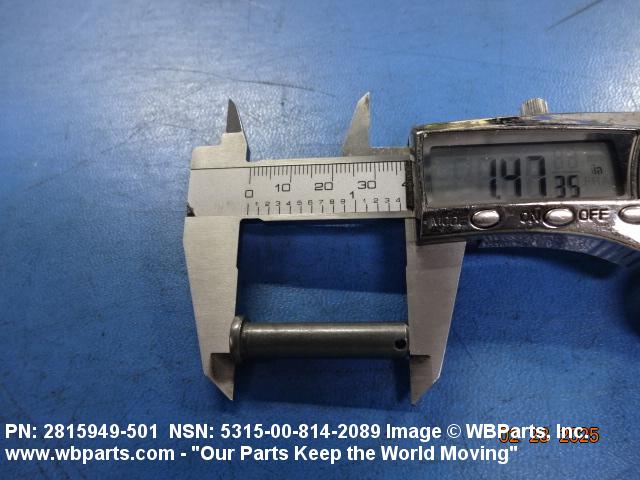

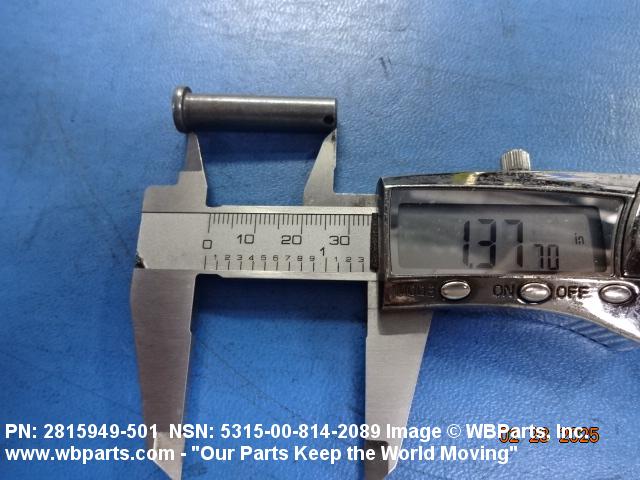

Drawings & Photos | NSN 5315-00-814-2089
Demand History | NSN 5315-00-814-2089
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-814-2089 | 2025-02-50 | 550 | Spain |
| 5315-00-814-2089 | 2025-02-35 | 550 | Spain |
| 5315-00-814-2089 | 2025-01-27 | 570 | Spain |
| 5315-00-814-2089 | 2024-10-276 | 570 | Spain |
| 67B5282-01 | 2022-09-271 | 1184 | DIBBS |
| 67B5282-01 | 2021-11-322 | 702 | DIBBS |
| 67B5282-01 | 2021-09-272 | 702 | DIBBS |
| 67B5282-01 | 2021-08-222 | 1813 | DIBBS |
| 67B5282-01 | 2021-05-140 | 1813 | DIBBS |
| 67B5282-01 | 2021-05-129 | 1813 | DIBBS |
| 67B5282-01 | 2020-09-259 | 3000 | DIBBS |
| 67B5282-01 | 2020-07-211 | 178 | DIBBS |
| 5315-00-814-2089 | 2020-05-146 | 200 | Singapore |
| 5315-00-814-2089 | 2020-05-139 | 200 | Singapore |
| 67B5282-01 | 2019-12-349 | 1557 | DIBBS |
| 67B5282-01 | 2019-10-275 | 915 | DIBBS |
| 5315-00-814-2089 | 2019-09-272 | 80 | IN |
| 5315-00-814-2089 | 2019-09-268 | 80 | IN |
| 5315-00-814-2089 | 2019-09-262 | 80 | Singapore |
| 67B5282-01 | 2019-09-258 | 915 | DIBBS |
| 5315-00-814-2089 | 2018-11-330 | 200 | Singapore |
| 5315-00-814-2089 | 2012-07-192 | 286 | United States |
Cross Reference | NSN 5315-00-814-2089
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-814-2089
Related Products | NSN 5315-00-814-2089
Technical Data | NSN 5315-00-814-2089
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 431 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.031 INCHES NOMINAL |
| DIAMETER | 0.3105 INCHES MINIMUM AND 0.3110 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.368 INCHES MINIMUM AND 1.388 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.438 INCHES NOMINAL |
| HEIGHT | 0.094 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.071 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.078 INCHES NOMINAL |
| MANUFACTURERS CODE | 98752 |
| DESIGN CONTROL REFERENCE | 67B45282-01 |
Restrictions/Controls & Freight Information | NSN 5315-00-814-2089
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-814-2089
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GG | TG:GUNNERY EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
