NSN 5315-00-815-3250 MS39086101, MS39086-101, NAS561CF25
Product Details | SPRING PIN
5315-00-815-3250 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS39086101, MS39086-101, NAS561CF25, NAS561CF2-5, 7410793, 741079-3 , 5315-00-815-3250, 00-815-3250, 5315008153250, 008153250
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-815-3250 | 02389 ( PIN, SPRING ) |

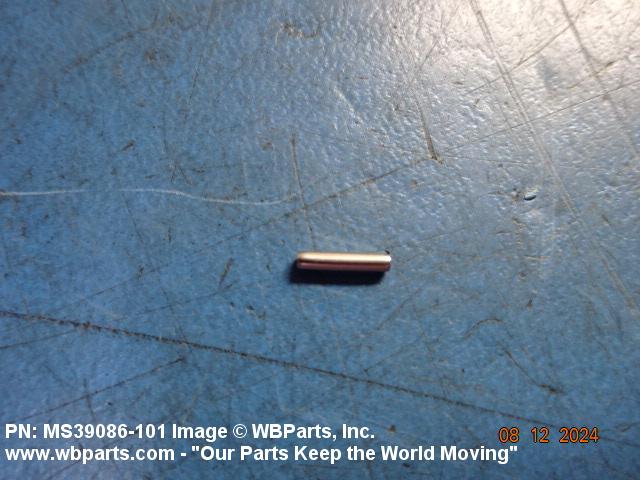

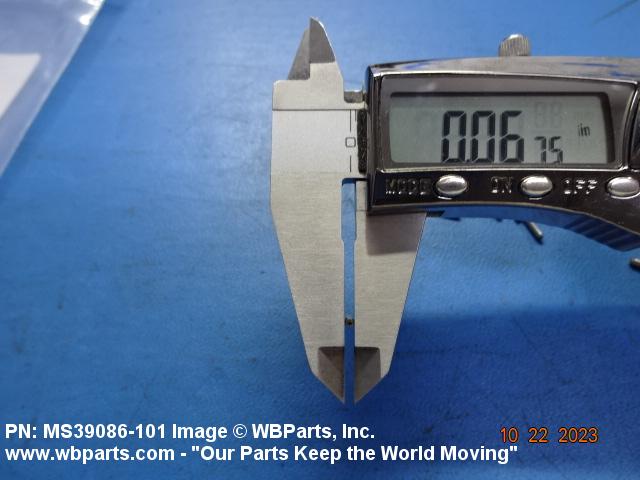

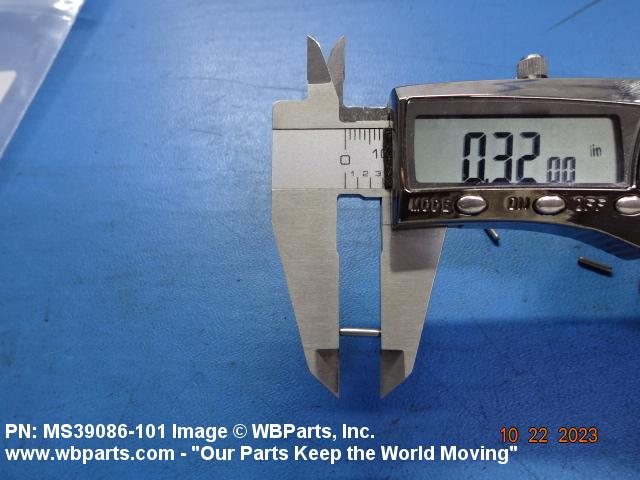

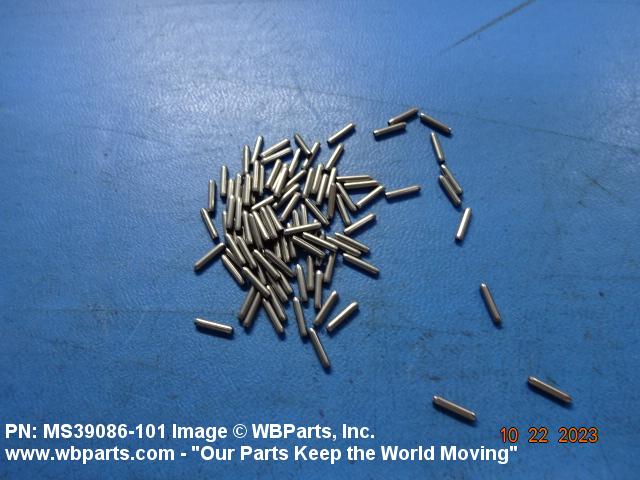

Drawings & Photos | NSN 5315-00-815-3250
Demand History | NSN 5315-00-815-3250
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS39086101 | 2024-07-205 | 160 | United States |
| MS39086101 | 2024-04-101 | 2 | United States |
| MS39086101 | 2023-10-289 | 70 | United States |
| MS39086101 | 2023-09-262 | 20 | United States |
| 5315-00-815-3250 | 2013-04-108 | 60 | MANUAL |
| MS39086101 | 2013-01-31 | 100 | US |
| 5315-00-815-3250 | 2012-10-296 | 90 | IL |
| 5315-00-815-3250 | 2011-05-129 | 2398 | DIBBS |
| MS39086101 | 2011-01-31 | 80 | us |
| 5315-00-815-3250 | 2009-06-160 | 2711 | DIBBS |
| 5315-00-815-3250 | 2008-05-128 | 25 | Turkey |
Cross Reference | NSN 5315-00-815-3250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340008153250 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| MS39086-101 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS39086-101 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS561CF2-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-815-3250
Technical Data | NSN 5315-00-815-3250
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | K177 COILED |
| OVERALL LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| DIAMETER | 0.062 INCHES NOMINAL |
| EXPANDED DIAMETER | 0.066 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39086-101 |
Restrictions/Controls & Freight Information | NSN 5315-00-815-3250
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
