NSN 5315-00-817-0889 MS16555601, MS16555-601, 946339-601

Product Details | HEADLESS STRAIGHT PIN

5315-00-817-0889 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS16555601, MS16555-601, 946339-601, 10122744, 104A901876, 2490502, 249050-2, 416148-601, 5315-00-817-0889, 00-817-0889, 5315008170889 , 008170889, 416148601, 946339601

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-817-0889	02390 ( PIN, STRAIGHT, HEADLESS )

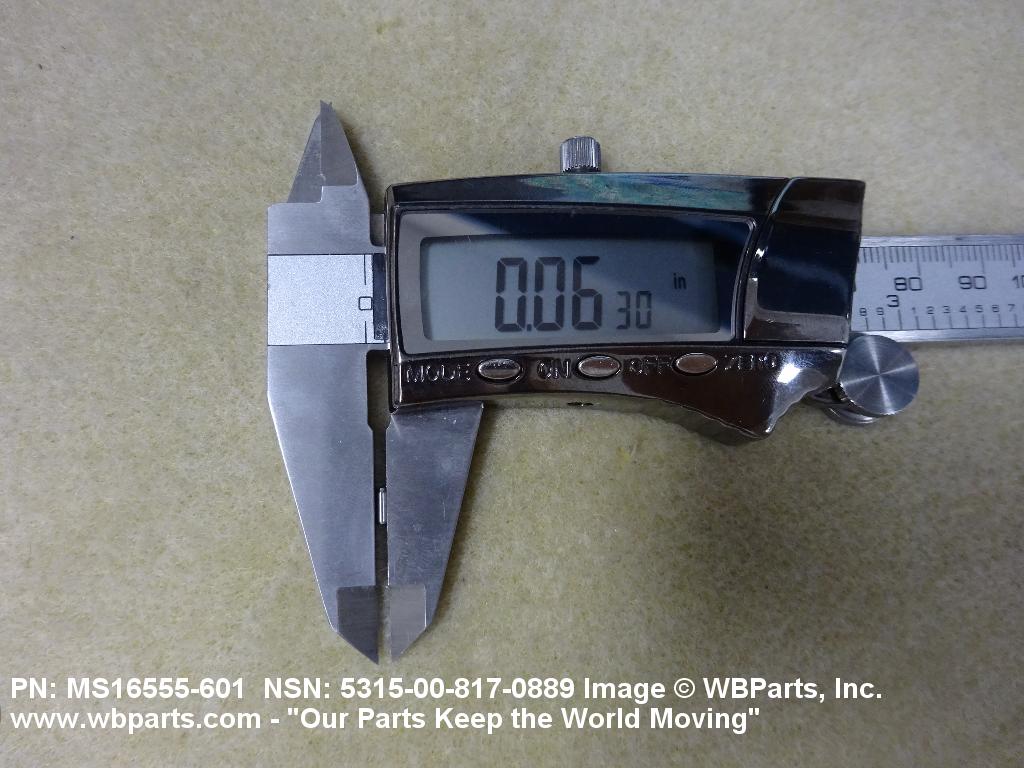

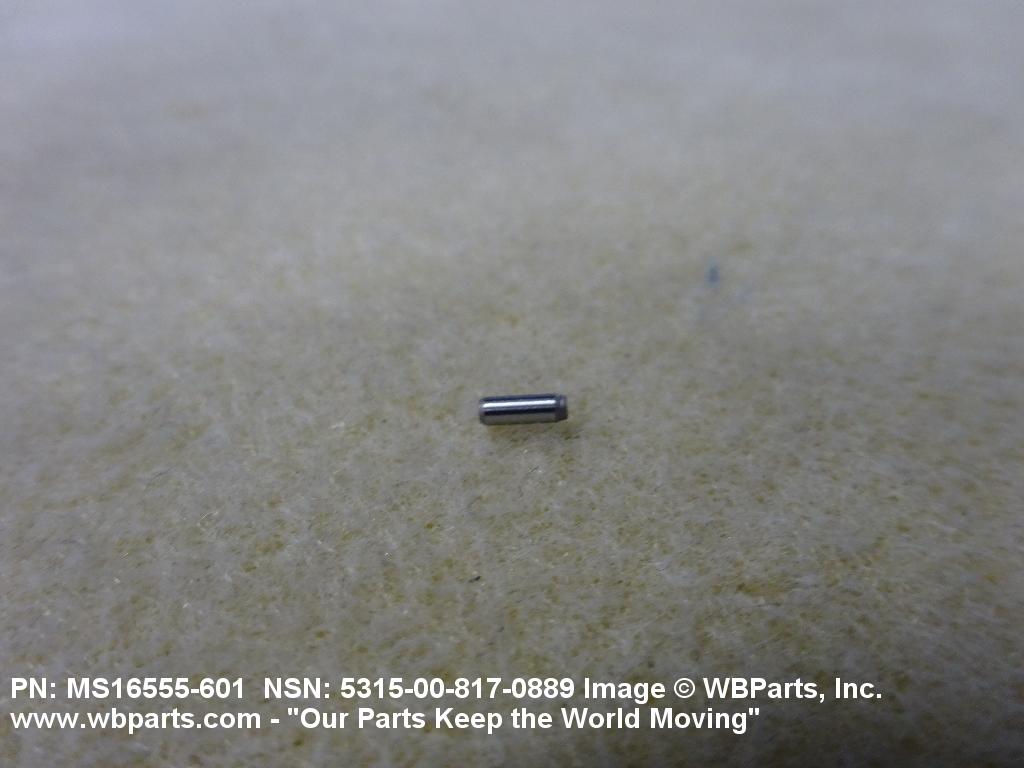

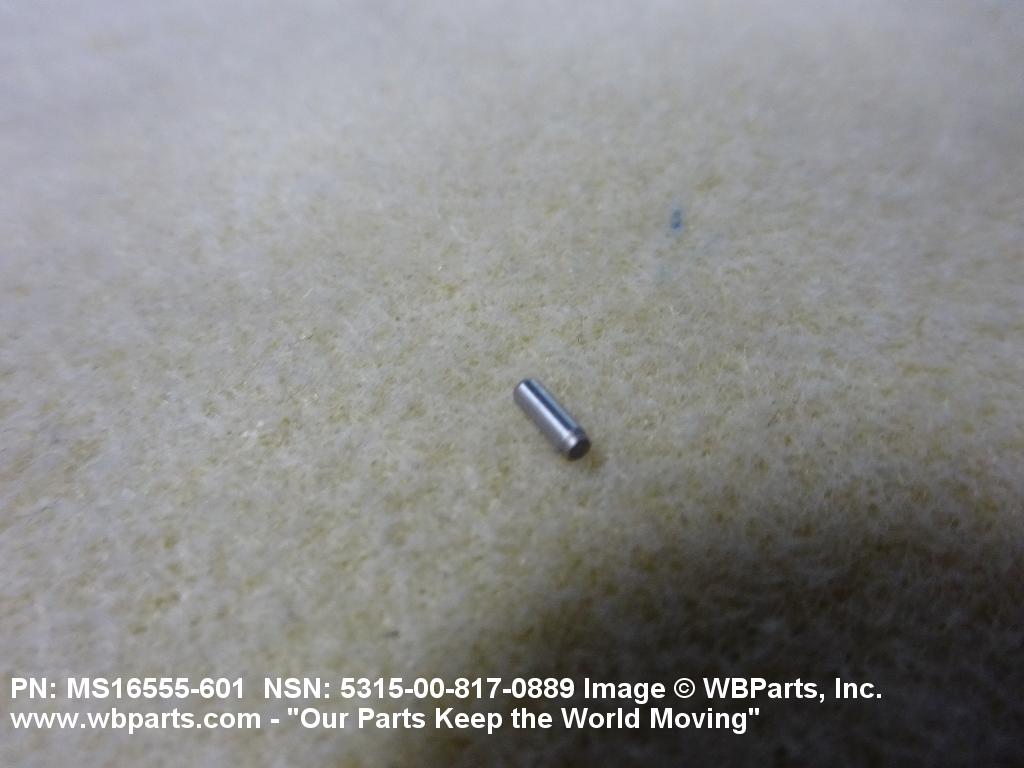

Drawings & Photos | NSN 5315-00-817-0889
