NSN 5315-00-823-8745 MS16562215, MS16562-215, MS171498

Product Details | SPRING PIN

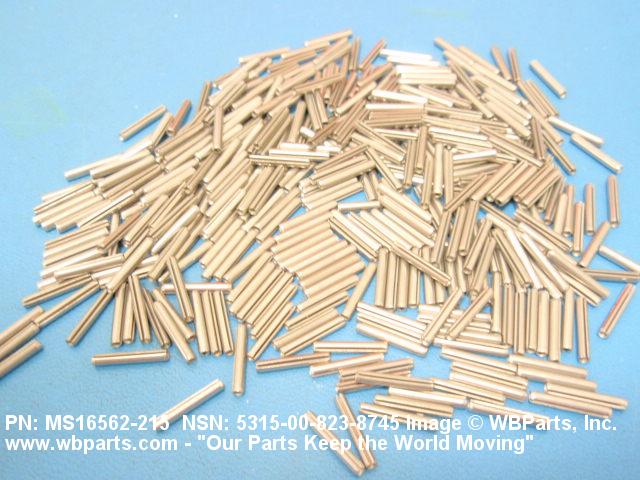

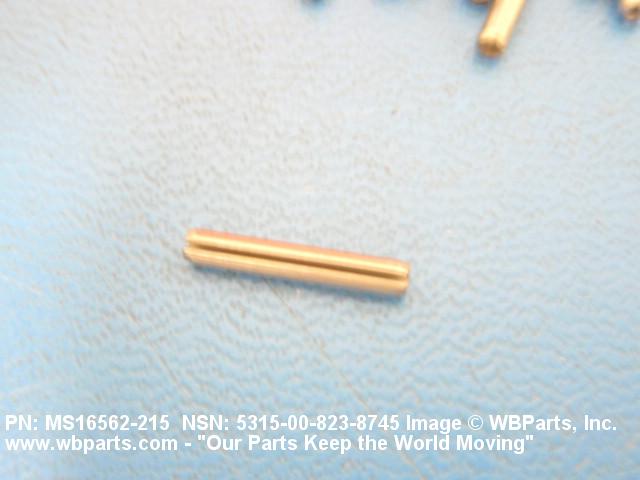

5315-00-823-8745 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.

Part Alternates: MS16562215, MS16562-215, MS171498, N533P910, NAS561C310, NAS561C3-10, A03965, B02990, SMC14955331, SMC149553-31, RPB790220940625, RPB79-022-094-0625, 497250-387, 4913003-03, 10344074 , 122-2404638 PC, 1222404638PC, 305380, 3110374000, 311-0374-000, 42P116995100, 42P11699-5100, 49100303, 491003-03, 5315H1300411, 5315H13-004-11, 5315PL0146619 , 63092, 6493PC24, 6994510S, 69945-10S, 717124436504 , 790220940624, 79-022-094-0624, 790220940625, 79-022-094-0625, 79022094625, 79-022-094-625, 5315-00-823-8745, 00-823-8745, 5315008238745 , 008238745, 497250387, 491300303

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-823-8745	02389 ( PIN, SPRING )

Drawings & Photos | NSN 5315-00-823-8745

Part Number	Request Date	QTY	Origin
MS16562215	2023-08-237	230	Korea
MS16562215	2023-03-79	220	Korea
MS16562-215	2020-09-268	312	South Korea
MS171498	2018-08-240	200	US
MS171498	2018-06-158	3	United States
5315-00-823-8745	2013-08-225	10	United States
MS171498	2013-02-44	200	United States
790220940625	2012-02-45	100	US
790220940625	2012-02-41	100	US
MS16562215	2011-06-154	5	US
MS16562215	2010-12-336	25	United States
5315-00-823-8745	2010-11-329	6	ZA
5315-00-823-8745	2009-12-336	3300	DIBBS
5315-00-823-8745	2009-07-205	3	Netherlands
MS171498	2008-09-255	40	US
MS171498	2008-04-113	500	us

Cross Reference | NSN 5315-00-823-8745

Part Number	Cage Code	Manufacturer
122-2404638 PC	80064	NAVAL SHIP SYSTEMS COMMAND
305380	1UVT5	BRP US INC.
305380	21119	EVINRUDE MOTORS PRODUCT GROUP OF OUTBOARD MARINE
305380	32195	OUTBOARD MARINE CORP JOHNSON MOTORS DIV
311-0374-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
42P11699-5100	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
491003-03	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
4913003-03	01749	UNISYS CORP COMPUTER SYSTEMS DIV
4913003-03	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
497250-387	30086	SPD ELECTRICAL SYSTEMS, INC
5315008238745	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5315H13-004-11	81996	U S ARMY AVIATION AND MISSILE COMMAND
5315PL0146619	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
63092	55799	MINE SAFETY APPLIANCES COMPANY
63092	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
6493PC24	81316	PORTSMOUTH NAVAL SHIPYARD
69945-10S	73030	HAMILTON SUNDSTRAND CORPORATION
79-022-094-0624	72962	HARVARD INDUSTRIES INC
79-022-094-0625	72962	HARVARD INDUSTRIES INC
79-022-094-625	72962	HARVARD INDUSTRIES INC
A03965	K0967	MBDA UK LTD
B02990	K0967	MBDA UK LTD
MS16562-215	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16562-215	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS171498	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N533P910	24446	GENERAL ELECTRIC CO
N533P910	24456	GENERAL ELECTRIC CO MEDICAL SYSTEMS DIV
NAS561C3-10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RPB79-022-094-0625	72962	HARVARD INDUSTRIES INC
SMC149553-31	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
